Brand:Schneider PLC Item No.:ATS01N232QN Product Origin:France Product Dimensions:154 x 45 x 131 mm Product Weight:0.56 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

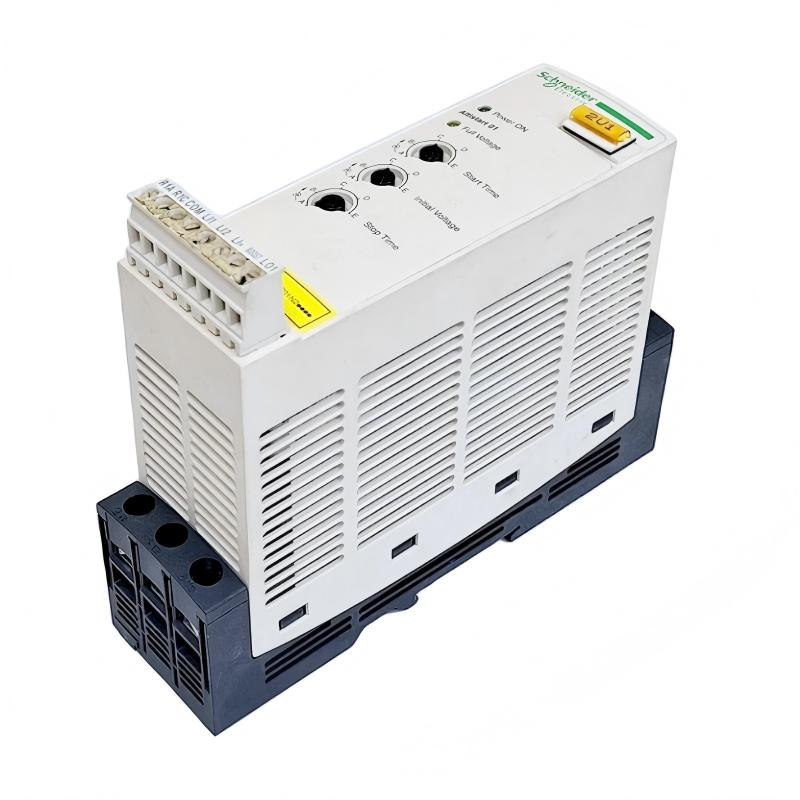

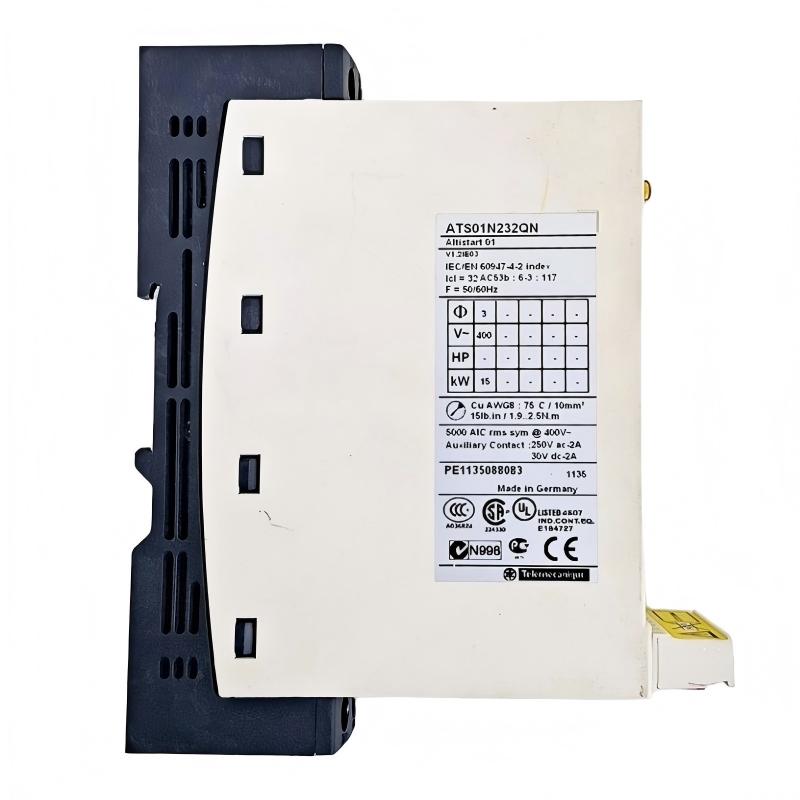

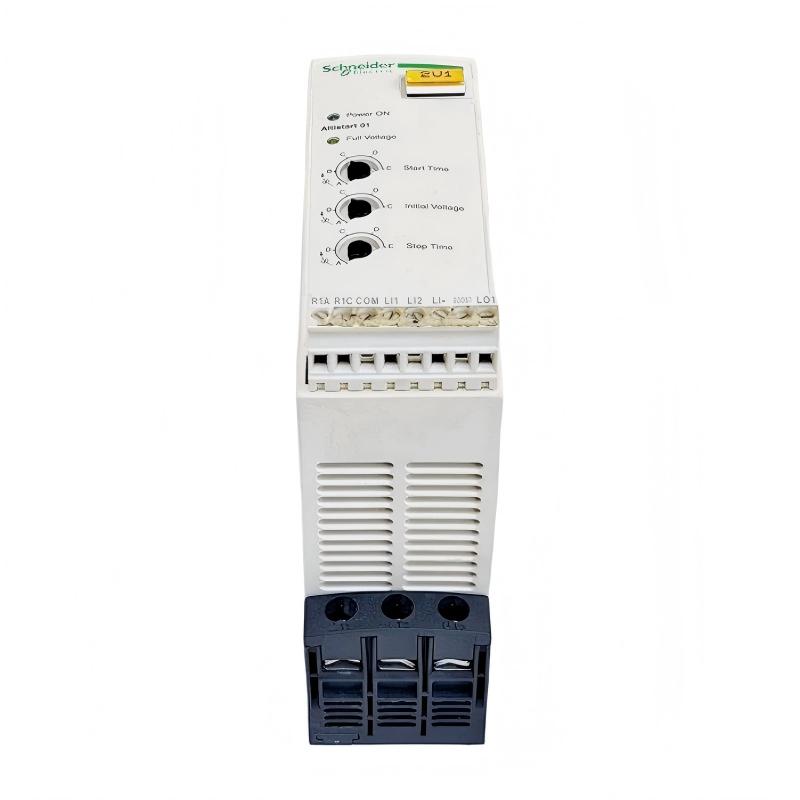

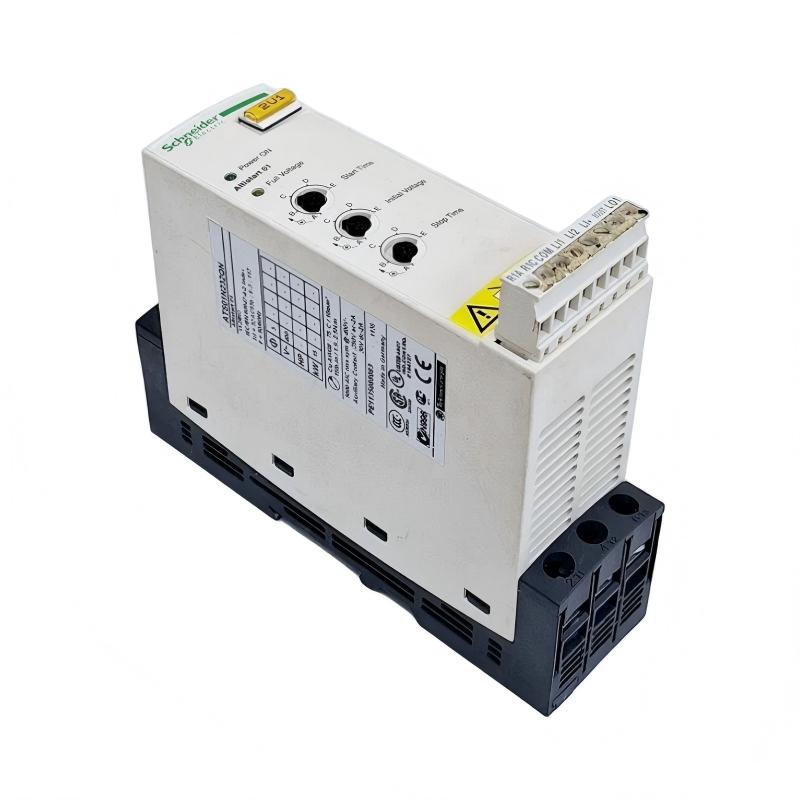

The ATS01N232QN is a Schneider Electric soft starter designed for simple motor starting control. It uses voltage ramp technology to reduce electrical stress during motor startup and improve mechanical protection of connected equipment.
It is intended for industrial applications requiring basic and reliable motor starting performance without advanced control functions.
Technical Specifications
Parameter
Value
Product Series
Schneider Altistart 01
Model
ATS01N232QN
Device Type
Soft Starter
Rated Supply Voltage
380–415 V AC
Frequency
50/60 Hz
Rated Current
32 A
Motor Power Range
15 kW
Control Method
Voltage ramp start
Protection Class
IP20
Mounting Type
DIN rail / panel mounting
Operating Temperature
-10°C to +40°C
Storage Temperature
-25°C to +70°C
Dimensions (H × W × D)
154 × 45 × 131 mm
Weight
0.56 kg (1.23 lb)
Recommended Related Models
Schneider ATS01N212QN Soft Starter
Schneider ATS01N222QN Soft Starter
Schneider ATS22 Series Soft Starter
Schneider Altivar ATV310 Series Drive
Popular Related Models
ATS01N212QN Soft Starter Module
ATS01N222QN Soft Starter Module
ATS01N232QN Soft Starter Module
ATS48 Series Soft Starter
Applications
The Schneider ATS01N232QN Soft Starter is used for controlled starting of three-phase induction motors in industrial systems where reduction of electrical inrush current and mechanical stress is required.
Typical applications include:
HVAC fan and ventilation systems
Water pumping systems
Conveyor systems
Refrigeration and compressor equipment
Standard industrial machinery
General OEM equipment
It provides controlled motor start behavior to support stable system operation.
Advantages
Compact structure suitable for control cabinet installation
Reduces motor starting current
Reduces mechanical stress during motor start
Built-in bypass function for normal operation mode
Simple installation and wiring
Stable operation in standard industrial environments
Suitable for basic motor starting control applications
Designed for general industrial use
Technical FAQs (10 Questions)
Q1: What type of motor is compatible?
A: Three-phase induction motors.
Q2: Does it provide speed control?
A: No.
Q3: Does it control motor start?
A: Yes, it controls motor starting behavior.
Q4: Can it be used with pumps?
A: Yes.
Q5: Does it require software setup?
A: No.
Q6: Does it include protection functions?
A: Yes, basic motor protection functions are included.
Q7: Can it operate without PLC?
A: Yes.
Q8: Does it support communication?
A: No.
Q9: Is it suitable for frequent starts?
A: It is suitable for standard duty applications.
