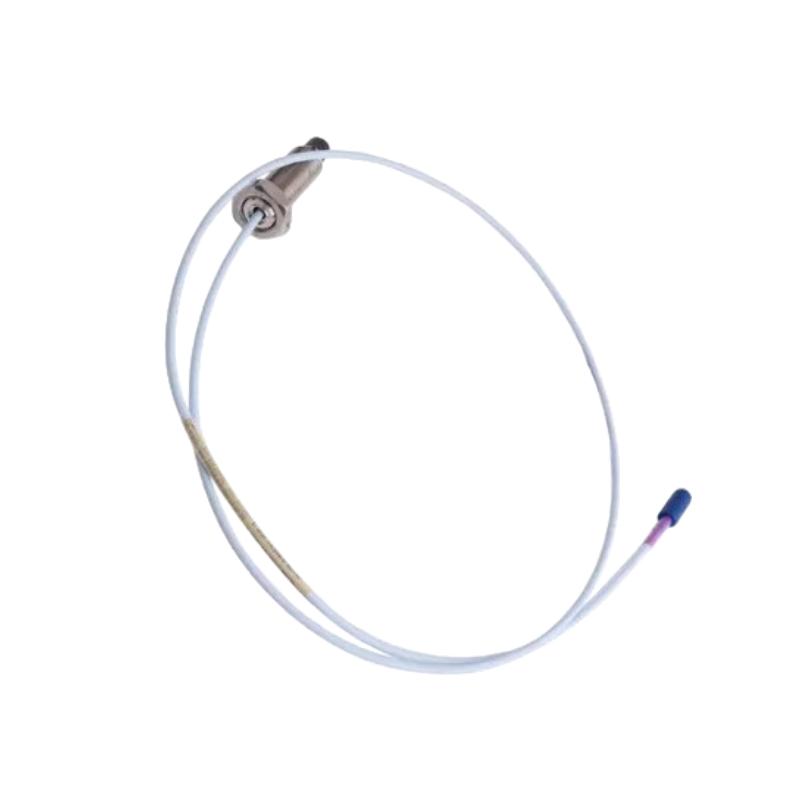

The Bently Nevada 330701-00-40-10-12-05 is a 3300 XL 11 mm proximity probe designed for non-contact measurement of shaft vibration, radial position, and mechanical gap in rotating machinery. It is widely used in turbines, compressors, pumps, and generators where stable long-term signal accuracy and high reliability are required.
This model belongs to the Bently Nevada 3300 XL 11 mm proximity transducer system, known for its robust construction, high linearity, and strong resistance to industrial electromagnetic interference, making it suitable for continuous machinery protection and condition monitoring in harsh environments.
Technical Specifications
| Item | Description |
|---|---|
| Manufacturer | Bently Nevada (Baker Hughes) |
| Model | 330701-00-40-10-12-05 |
| Product Type | 3300 XL 11 mm Proximity Probe |
| Measurement Principle | Eddy current displacement sensing |
| System Series | 3300 XL Proximity Transducer System |
| Probe Diameter | 11 mm |
| Thread Type | 1/2-20 UNF |
| Case Length Option | 40 – 4.0 in housing |
| Unthreaded Length | 00 – 0 mm |
| Cable Length Option | 10 – 1.0 m integral cable |
| Connector Type | ClickLoc coaxial connector system |
| Cable Type | FluidLoc / industrial shielded cable |
| Approval Option | 12 – hazardous area / certified connector & cable configuration |
| Agency Approval | 05 – multi-agency certification (CSA / ATEX / IECEx style configuration) |
| Output Signal | Analog displacement signal |
| Application | Shaft vibration, radial position, gap measurement |
Physical Dimensions
| Parameter | Value |
| Dimensions (L × W × H) | 1000 × 11 × 11 mm (approx. assembly including probe + cable reference) |
| Weight | Approx. 0.35–0.45 kg |
