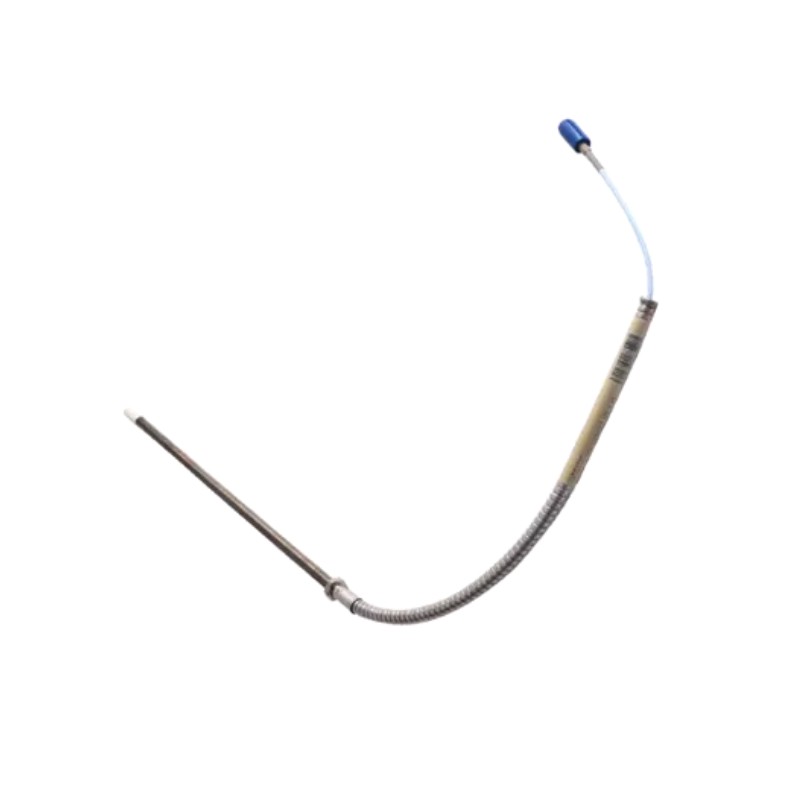

The Bently Nevada 330704-000-030-90-02-00 is an 11 mm proximity probe from the 3300 XL series, designed for non-contact measurement of shaft vibration and displacement in rotating machinery.
It is used as part of a complete eddy current proximity transducer system together with a Proximitor sensor and extension cable. The system is widely applied in turbines, compressors, pumps, and generators for continuous condition monitoring and machinery protection.
The “-030 / -90” configuration typically corresponds to a short case length with a 9.0 m cable assembly, making it suitable for installations requiring longer cable routing while maintaining a compact probe body.
According to 3300 XL 11 mm system design data, the probe family supports a typical linear measurement range of around 4 mm (160 mil) for shaft displacement monitoring in industrial applications.
Technical Specifications
| Item | Specification |
|---|---|
| Brand | Bently Nevada |
| Series | 3300 XL |
| Model | 330704-000-030-90-02-00 |
| Product Type | 11 mm Proximity Probe |
| Measurement Type | Non-contact vibration / displacement |
| Technology | Eddy current sensing |
| System Compatibility | 3300 XL Proximitor system |
| Probe Tip Size | 11 mm |
| Output Signal | Analog displacement signal |
| Installation Type | Thread-mounted probe assembly |
| Connector System | Miniature ClickLoc coaxial connector |
| Cable Length | 9.0 m integrated cable |
| Material | Stainless steel probe body |
| Application | Rotating machinery monitoring systems |
Dimensions & Weight
| Item | Specification |
|---|---|
| Dimensions (L × W × H) | Approx. 30 mm case length × 10–12 mm × 10–12 mm |
| Weight | Approx. 0.2–0.3 kg |
System Configuration
This probe is part of the standard 3300 XL measurement chain:
- 3300 XL 11 mm proximity probe
- Matching extension cable (9.0 m)
- 3300 XL Proximitor sensor
The system converts shaft motion into a proportional electrical signal used for vibration monitoring, diagnostics, and protection functions.
Recommended Related Models
| Model | Description |
|---|---|
| 330704-000-030-50-02-00 | 5.0 m cable configuration variant |
| 330704-000-060-10-02-00 | 60 mm case configuration model |
| 330704-000-100-10-02-00 | Extended case version |
| 330703 series | 11 mm alternative probe family |
| 3300 XL Extension Cable | Signal transmission component |
| 3300 XL Proximitor Sensor | Signal conditioning module |
