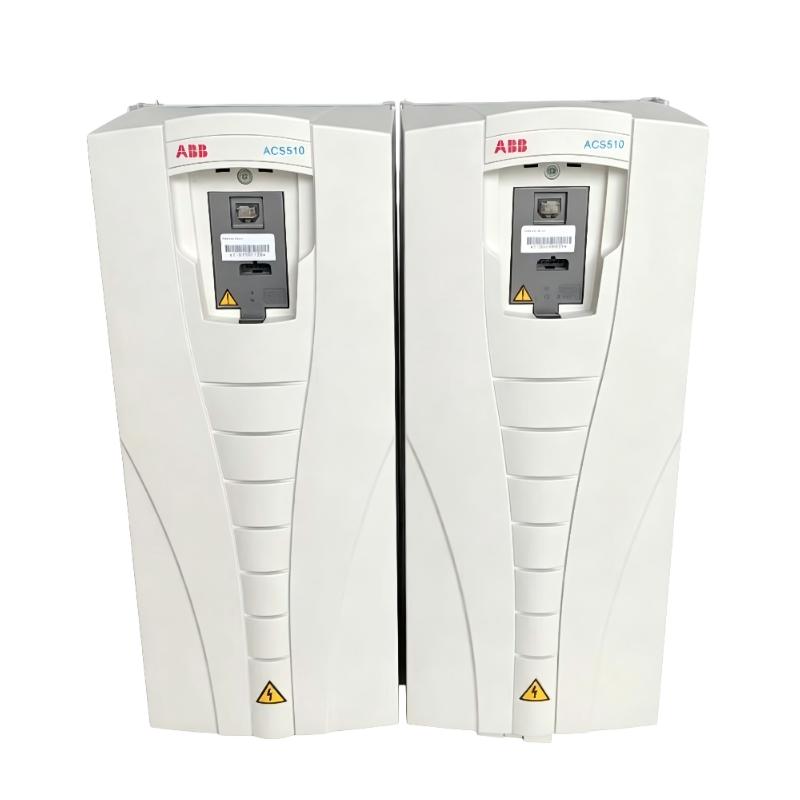

ABB ACS510-01-038A-4 3ABD00015750-D Frequency Converter
ABB ACS510-01-038A-4 3ABD00015750-D Frequency Converter
0.0
Points
Brand:ABB PLC Item No.:ACS510-01-038A-4 Product Origin:Sweden (SE) Product Dimensions:675 × 284 × 384 mm Product Weight:19.2 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The ABB ACS510-01-038A-4 3ABD00015750-D frequency converter is a high-performance industrial drive developed for applications requiring reliable motor control and efficient operation. As part of the ACS510 general-purpose drive family, it combines practical functionality with durable industrial performance.
Featuring a 38 A rated output current and 18.5 kW power capability, this model is designed for medium-power motor systems where stable speed control, reduced energy consumption, and long-term reliability are essential.
The drive offers a balanced solution for engineers and system builders looking for a dependable frequency converter that simplifies installation, improves process efficiency, and supports modern automation requirements.
Technical Specifications
Specification
Details
Product Type
Frequency Converter
Manufacturer
ABB
Model
ACS510-01-038A-4
Ordering Code
3ABD00015750-D
Product Series
ACS510
Rated Motor Power
18.5 kW
Rated Output Current
38 A
Input Voltage
380–480 V AC
Input Phase
Three-phase
Frequency Range
50/60 Hz
Control Method
Scalar Control / Vector Control
Installation Type
Wall-mounted
Protection Class
IP21
Frame Size
R3
Cooling Method
Air Cooling
Dimensions (W × H × D)
675 × 284 × 384 mm
Weight
19.20 kg (42.33 lb)
Recommended Related Models
Model
Description
ABB ACS510-01-031A-4
15 kW general-purpose frequency converter
ABB ACS510-01-046A-4
Higher current model for larger motor applications
ABB ACS580-01-046A-4
Advanced general-purpose industrial drive
ABB ACS880-01-045A-4
High-performance industrial drive solution
Popular Related Models
Model
Description
ABB ACS510-01-012A-4
Compact drive for smaller industrial motor systems
ABB ACS510-01-017A-4
General-purpose frequency converter for medium applications
ABB ACS510-01-025A-4
Popular drive for 11 kW motor applications
ABB ACS510-01-031A-4
15 kW industrial frequency converter
ABB ACS510-01-038A-4
18.5 kW high-capacity frequency converter
Application Areas & Industrial Usage
The ABB ACS510-01-038A-4 3ABD00015750-D frequency converter is a reliable general-purpose drive designed for industrial motor control applications requiring efficient operation, flexible configuration, and stable performance. With a 38 A output current capability and 18.5 kW power rating, this drive is well suited for medium-power applications where dependable speed regulation and energy optimization are important.
Designed for demanding automation environments, the ACS510-01-038A-4 provides an effective solution for industries requiring consistent motor performance, including:
Pump and water circulation systems
HVAC and ventilation equipment
Industrial fans and air handling systems
Conveyor and material transport systems
Manufacturing and processing machinery
General industrial automation applications
Its practical design and reliable control capability make it a strong choice for improving equipment efficiency, reducing mechanical stress, and maintaining smooth operation in continuous-duty applications.
Product Strengths & Engineering Advantages
Efficient Variable Speed Control
The ACS510-01-038A-4 delivers accurate motor speed adjustment, allowing equipment to operate according to actual process requirements while improving energy efficiency.
Designed for Medium-Power Applications
With an 18.5 kW motor power rating, this frequency converter provides dependable performance for industrial systems requiring higher load capacity and stable motor management.
Optimized for Pump and Fan Systems
The drive is particularly suitable for variable torque applications, helping maintain efficient operation in systems where motor demand changes during operation.
Reliable Industrial Construction
Built for long-term industrial use, the converter incorporates protective functions and monitoring capabilities to support stable system performance.
Flexible Automation Integration
The ACS510 series supports practical integration into industrial control systems, helping engineers develop efficient and maintainable automation solutions.
Technical FAQs
1. What motor power rating does the ABB ACS510-01-038A-4 support?
The ACS510-01-038A-4 is designed for motor applications with a rated output power of 18.5 kW.
2. What input voltage is required for this frequency converter?
This model operates with a three-phase 380–480 V AC power supply.
3. Is the ACS510-01-038A-4 suitable for variable torque applications?
Yes. It is highly suitable for applications such as pumps and fans where load requirements vary.
4. Does this frequency converter support vector control?
Yes. The drive provides advanced motor control functions to achieve stable speed and torque performance.
5. Can the ACS510-01-038A-4 be used in HVAC systems?
Yes. It is commonly applied in HVAC equipment requiring efficient motor speed management.
6. Does this drive support communication integration?
Yes. The ACS510 series supports communication solutions for connection with industrial automation systems.
7. What types of motors can be controlled by this converter?
The drive is designed primarily for standard AC induction motors used in industrial applications.
8. Does the frequency converter include protection functions?
Yes. It includes monitoring, fault diagnostics, and motor protection functions to improve operational reliability.
9. Can operating parameters be customized?
Yes. Users can configure drive parameters according to specific machine and process requirements.
10. What industries commonly use the ACS510 series?
The ACS510 series is widely used in manufacturing, HVAC, water treatment, processing, and industrial automation fields.
