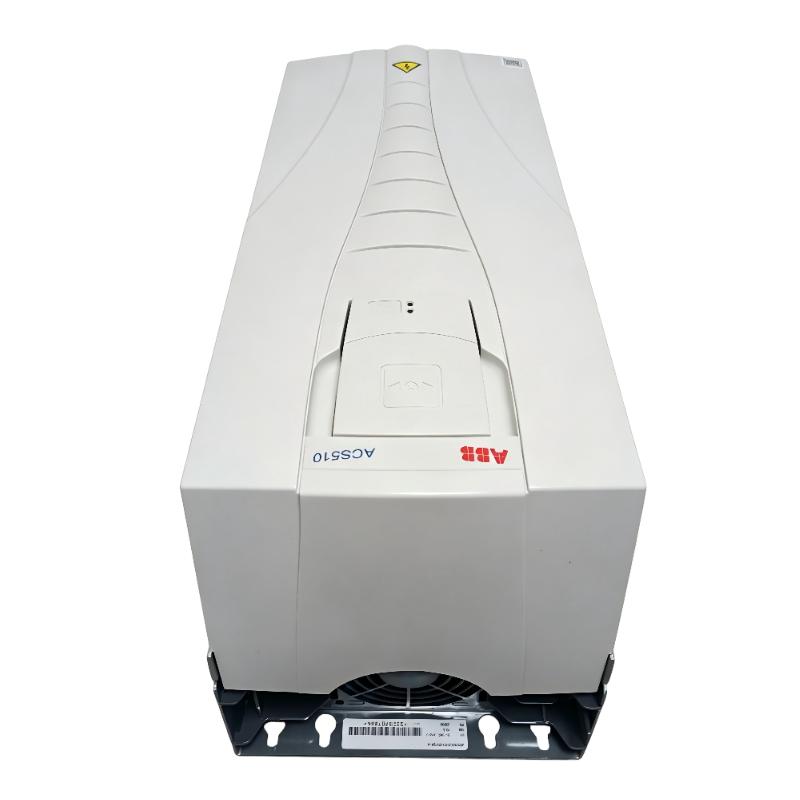

ABB ACS510-01-046A-4 3ABD00021615-D Frequency Converter
ABB ACS510-01-046A-4 3ABD00021615-D Frequency Converter
0.0
Points
Brand:ABB PLC Item No.:ACS510-01-046A-4 Product Origin:Sweden (SE) Product Dimensions:675 × 284 × 384 mm Product Weight:18 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The ABB ACS510-01-046A-4 3ABD00021615-D frequency converter is a high-performance industrial drive designed for general-purpose motor control applications. It combines reliable operation, flexible configuration, and efficient performance to support a wide range of industrial systems.
Featuring a 46 A output current rating, this model is suitable for medium-power motor applications where stable speed control and dependable operation are essential. Its practical design supports easy installation in industrial environments while maintaining strong performance during continuous operation.
The ACS510-01-046A-4 provides an effective drive solution for engineers and system integrators looking for reliable motor management, improved process control, and efficient automation performance.
Technical Specifications
Specification
Details
Product Type
Frequency Converter
Manufacturer
ABB
Model
ACS510-01-046A-4
Ordering Code
3ABD00021615-D
Product Series
ACS510
Rated Motor Power
22 kW
Rated Output Current
46 A
Input Voltage
380–480 V AC
Input Phase
Three-phase
Control Method
Scalar Control / Vector Control
Installation Type
Wall-mounted
Protection Class
IP21
Frame Size
R3
Cooling Method
Air Cooling
Dimensions (W × H × D)
675 × 284 × 384 mm
Weight
18.00 kg (39.68 lb)
Recommended Related Models
Model
Description
ABB ACS510-01-038A-4
18.5 kW general-purpose frequency converter
ABB ACS510-01-060A-4
Higher current drive for larger motor applications
ABB ACS580-01-046A-4
Advanced general-purpose industrial drive
ABB ACS880-01-046A-4
High-performance industrial drive platform
Popular Related Models
Model
Description
ABB ACS510-01-025A-4
11 kW general-purpose frequency converter
ABB ACS510-01-031A-4
15 kW industrial drive solution
ABB ACS510-01-038A-4
18.5 kW frequency converter for automation systems
ABB ACS510-01-046A-4
22 kW high-capacity industrial frequency converter
ABB ACS510-01-060A-4
Higher output ACS510 series drive
Application Fields & Industrial Applications
The ABB ACS510-01-046A-4 3ABD00021615-D frequency converter is a reliable general-purpose drive designed for efficient motor control in industrial environments. With a 46 A output current rating and 22 kW motor capacity, this frequency converter provides stable speed regulation and dependable performance for medium-power motor applications.
Designed for applications requiring consistent operation and energy-efficient motor management, the ACS510-01-046A-4 is suitable for:
Pump and water handling systems
HVAC and ventilation equipment
Industrial fan applications
Conveyor and material handling systems
Manufacturing machinery
General automation equipment
Its robust design and flexible control functions make it a practical solution for industries seeking improved process efficiency, reliable motor operation, and long service performance.
Performance Advantages & Product Features
Efficient Motor Control Capability
The ACS510-01-046A-4 provides precise motor speed adjustment and smooth operation, helping industrial equipment maintain stable performance under changing load conditions.
Designed for Medium-Power Systems
With a 22 kW rated motor capacity, this frequency converter is suitable for applications requiring higher output capability while maintaining efficient operation and reliable control.
Optimized Energy Management
The drive helps improve system efficiency by allowing motors to operate according to actual process requirements, reducing unnecessary energy usage.
Reliable Industrial Construction
Built for continuous industrial environments, the converter provides dependable performance with integrated monitoring and protection functions.
Flexible Automation Integration
The ACS510 series offers practical configuration options, allowing engineers to integrate the drive into different industrial control systems.
Technical FAQs
1. What motor power rating does the ABB ACS510-01-046A-4 support?
The ACS510-01-046A-4 is designed for motor applications with a rated power of 22 kW.
2. What input voltage does this frequency converter require?
This model operates with a three-phase 380–480 V AC power supply.
3. What type of applications is this drive mainly used for?
It is commonly used for pumps, fans, HVAC equipment, conveyors, and industrial machinery requiring variable speed control.
4. Does the ACS510-01-046A-4 support adjustable motor speed control?
Yes. The drive provides flexible speed regulation for different industrial operating requirements.
5. Can this frequency converter be integrated into automation systems?
Yes. Communication options are available to support integration with industrial control environments.
6. What motor types are compatible with this drive?
The converter is designed for standard AC induction motors used in industrial applications.
7. Does the drive include protection and diagnostic functions?
Yes. The unit includes monitoring and protection features to support reliable operation.
8. Can users configure operating parameters?
Yes. Parameters can be adjusted according to motor characteristics and application requirements.
9. Is the ACS510-01-046A-4 suitable for continuous operation?
Yes. It is designed for industrial applications requiring stable long-term performance.
10. How does this frequency converter improve system efficiency?
It enables optimized motor speed control, helping equipment operate more efficiently according to process demands.
