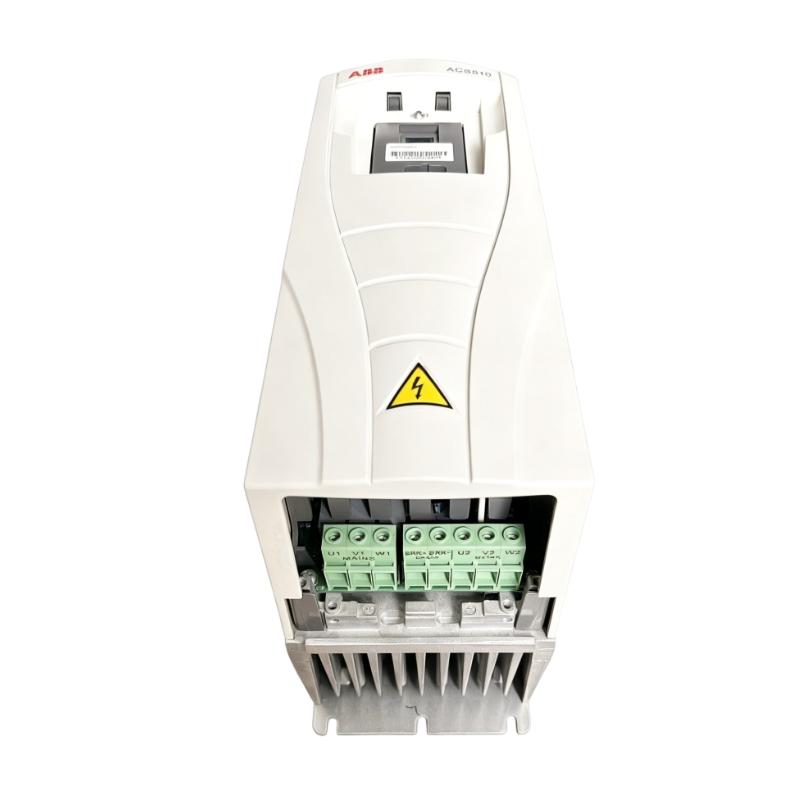

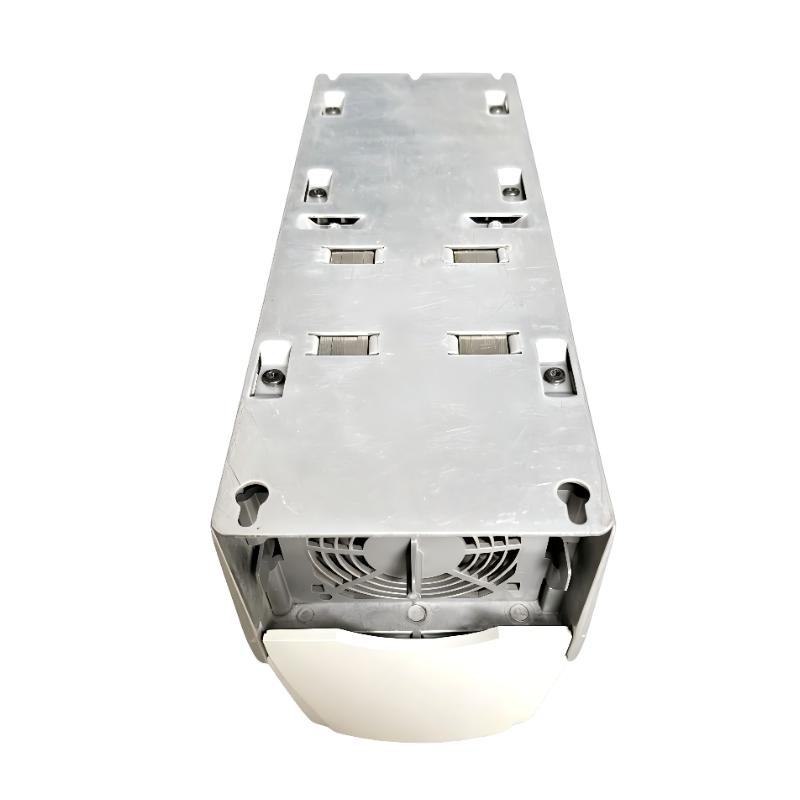

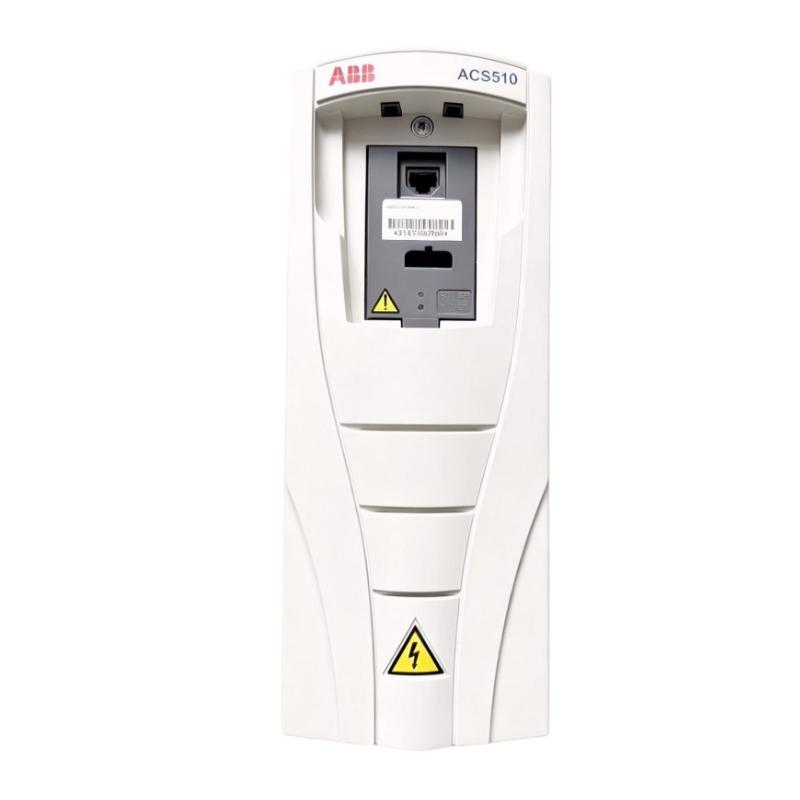

ABB ACS510-01-04A1-4 3ABD00015742-S Frequency Converter
ABB ACS510-01-04A1-4 3ABD00015742-S Frequency Converter
0.0
Points
Brand:ABB PLC Item No.:ACS510-01-04A1-4 Product Origin:Sweden (SE) Product Dimensions:465 × 225 × 365 mm Product Weight:6.1 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The ABB ACS510-01-04A1-4 3ABD00015742-S frequency converter is a general-purpose industrial drive developed to provide reliable and efficient motor control solutions. Combining practical functionality with a compact structure, this model is designed to support a variety of industrial equipment requiring stable speed regulation.
With a 4.1 A output current rating and 1.5 kW motor capacity, the drive is suitable for small motor applications where dependable performance, flexible configuration, and efficient operation are important.
The ACS510-01-04A1-4 offers a balanced solution for system integrators and equipment manufacturers looking for a reliable drive that simplifies installation while maintaining consistent industrial performance.
Technical Specifications
Specification
Details
Product Type
Frequency Converter
Manufacturer
ABB
Model
ACS510-01-04A1-4
Ordering Code
3ABD00015742-S
Product Series
ACS510
Rated Motor Power
1.5 kW
Rated Output Current
4.1 A
Input Voltage
380–480 V AC
Input Phase
Three-phase
Control Method
Scalar Control / Vector Control
Installation Type
Wall-mounted
Protection Class
IP21
Cooling Method
Air Cooling
Dimensions (W × H × D)
465 × 225 × 365 mm
Weight
6.10 kg (13.45 lb)
Recommended Related Models
Model
Description
ABB ACS510-01-03A3-4
1.1 kW compact frequency converter
ABB ACS510-01-05A6-4
Higher current model for small industrial motors
ABB ACS510-01-07A2-4
3 kW frequency converter for increased load applications
ABB ACS580-01-03A4-4
Advanced industrial drive solution
Popular Related Models
Model
Description
ABB ACS510-01-03A3-4
Compact general-purpose frequency converter
ABB ACS510-01-04A1-4
1.5 kW industrial motor control drive
ABB ACS510-01-05A6-4
Flexible drive solution for automation equipment
ABB ACS510-01-07A2-4
Popular medium-capacity frequency converter
ABB ACS510-01-09A4-4
Higher capacity ACS510 series drive
Application Areas & Industrial Use
The ABB ACS510-01-04A1-4 3ABD00015742-S frequency converter is a compact and reliable industrial drive designed for efficient motor speed control in various automation environments. It provides stable performance, flexible configuration, and dependable operation for equipment requiring accurate motor management and optimized energy usage.
This frequency converter is suitable for applications such as:
Pump and water circulation systems
HVAC and ventilation equipment
Industrial fan control
Conveyor and material handling systems
Light manufacturing machinery
General automation equipment
With its practical design and reliable control functions, the ACS510-01-04A1-4 helps improve equipment efficiency and provides consistent motor performance in a wide range of industrial applications.
Product Advantages & Performance Features
Smooth Motor Control
The ACS510-01-04A1-4 delivers stable speed regulation and accurate motor control, helping equipment achieve reliable operation under different working conditions.
Compact Installation Capability
Its optimized design allows convenient integration into industrial control panels and machinery systems where efficient space utilization is required.
Reliable Industrial Operation
The frequency converter is built for continuous industrial applications, providing dependable performance and supporting long-term equipment operation.
Flexible Application Adaptability
The drive can be configured for different motor control requirements, making it suitable for various industrial systems and automation projects.
Efficient System Management
By enabling adjustable motor operation, the converter helps improve process control and supports more efficient equipment performance.
Technical FAQs
1. What is the rated motor power of the ABB ACS510-01-04A1-4?
The ABB ACS510-01-04A1-4 is designed for motor applications with a rated power of 1.5 kW.
2. What type of power supply is required for this frequency converter?
This model requires a three-phase 380–480 V AC power supply.
3. Which motor types are compatible with the ACS510-01-04A1-4?
The frequency converter is designed for standard AC induction motors commonly used in industrial applications.
4. Can this drive be used for variable speed applications?
Yes. The drive provides adjustable speed control for different industrial motor applications.
5. Does the ACS510-01-04A1-4 support communication functions?
Yes. Optional communication solutions are available for integration with industrial automation systems.
6. Can operating parameters be customized?
Yes. Users can configure operating settings according to motor characteristics and application requirements.
7. Does the frequency converter include protection functions?
Yes. The drive provides monitoring and protection features to support stable motor operation.
8. Is the ACS510-01-04A1-4 suitable for automated equipment?
Yes. Its flexible control features make it suitable for automated machinery and industrial systems.
9. Can acceleration and deceleration times be adjusted?
Yes. Acceleration and deceleration parameters can be configured according to application needs.
10. What industries commonly use this type of frequency converter?
It is commonly used in manufacturing, HVAC, water systems, processing equipment, and general industrial automation.
