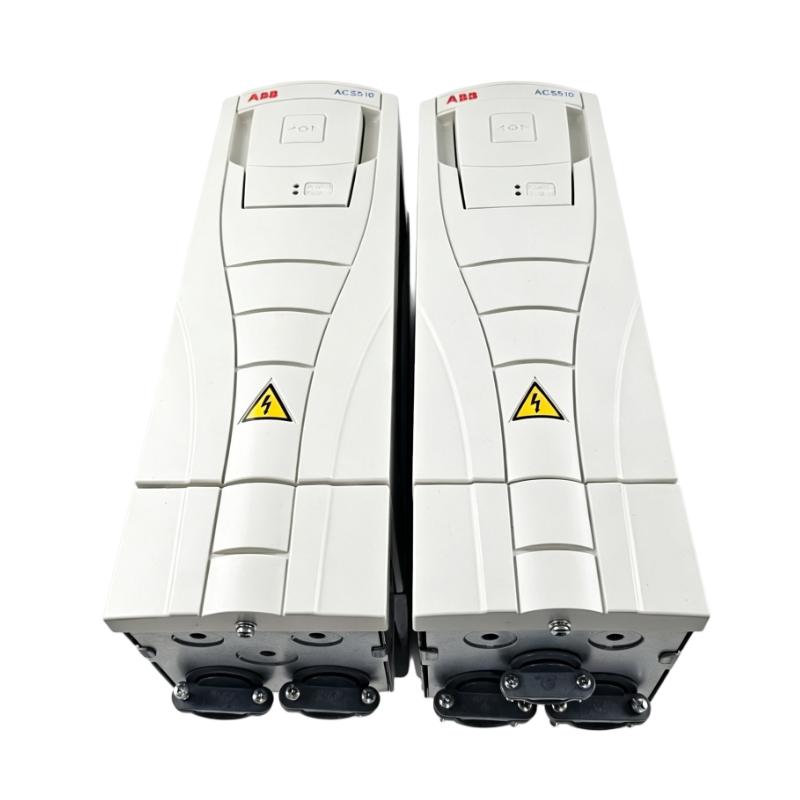

ABB ACS510-01-05A6-4 3ABD00015743-D Frequency Converter
ABB ACS510-01-05A6-4 3ABD00015743-D Frequency Converter
0.0
Points
Brand:ABB PLC Item No.:ACS510-01-05A6-4 Product Origin:Sweden (SE) Product Dimensions:465 × 225 × 365 mm Product Weight:6.1 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The ABB ACS510-01-05A6-4 3ABD00015743-D frequency converter is a reliable industrial drive developed for general-purpose motor control applications. It combines compact construction, flexible functionality, and dependable performance to meet the needs of modern automation systems.
With a 5.6 A output current rating and 2.2 kW motor capacity, this model is designed for small industrial motor applications requiring stable speed regulation and efficient operation. Its practical wall-mounted design makes installation easier while supporting reliable performance in industrial environments.
The ACS510-01-05A6-4 provides a balanced drive solution for engineers and equipment manufacturers seeking improved motor control, flexible system integration, and long-term operational reliability.
Technical Specifications
Specification
Details
Product Type
Frequency Converter
Manufacturer
ABB
Model
ACS510-01-05A6-4
Ordering Code
3ABD00015743-D
Product Series
ACS510
Rated Motor Power
2.2 kW
Rated Output Current
5.6 A
Input Voltage
380–480 V AC
Input Phase
Three-phase
Control Method
Scalar Control / Vector Control
Installation Type
Wall-mounted
Protection Class
IP21
Cooling Method
Air Cooling
Dimensions (W × H × D)
465 × 225 × 365 mm
Weight
6.10 kg (13.45 lb)
Recommended Related Models
Model
Description
ABB ACS510-01-04A1-4
1.5 kW general-purpose frequency converter
ABB ACS510-01-07A2-4
3 kW industrial drive for higher load requirements
ABB ACS510-01-09A4-4
Higher capacity model for small industrial systems
ABB ACS580-01-04A8-4
Advanced alternative industrial drive
Popular Related Models
Model
Description
ABB ACS510-01-03A3-4
Compact 1.1 kW frequency converter
ABB ACS510-01-04A1-4
1.5 kW industrial motor control drive
ABB ACS510-01-05A6-4
2.2 kW general-purpose frequency converter
ABB ACS510-01-07A2-4
Popular 3 kW automation drive
ABB ACS510-01-09A4-4
Higher capacity ACS510 series converter
Application Range & Industrial Deployment
The ABB ACS510-01-05A6-4 3ABD00015743-D frequency converter is a compact general-purpose drive designed for efficient motor speed control in industrial automation applications. It provides reliable operation, flexible configuration, and smooth performance for equipment requiring accurate motor regulation and improved energy efficiency.
This frequency converter is suitable for various industrial systems, including:
Pump and water circulation equipment
HVAC and ventilation systems
Industrial fan applications
Conveyor and material handling equipment
Processing machinery
General automation solutions
With its dependable control capability and practical installation design, the ACS510-01-05A6-4 offers an effective solution for maintaining stable motor performance across different industrial environments.
Product Advantages & Performance Benefits
Reliable Speed Control
The ACS510-01-05A6-4 provides accurate motor speed adjustment and smooth operation, helping equipment achieve consistent performance during different operating conditions.
Compact Industrial Structure
Its space-efficient design allows convenient installation in control cabinets and machinery systems where optimized layout is required.
Efficient Motor Operation
By adjusting motor speed according to application requirements, the frequency converter helps improve system efficiency and supports better energy management.
Flexible Application Compatibility
The drive can be adapted to different industrial requirements, making it suitable for a wide range of motor-driven equipment.
Stable Long-Term Performance
Designed for industrial applications, the converter provides dependable operation and supports continuous equipment performance.
Technical FAQs
1. What is the rated motor power of the ABB ACS510-01-05A6-4?
The ACS510-01-05A6-4 is designed for motor applications with a rated power of 2.2 kW.
2. What input voltage does this frequency converter support?
This model supports a three-phase 380–480 V AC power supply.
3. What type of motors can be controlled by this drive?
The frequency converter is designed for standard AC induction motors used in industrial applications.
4. Is the ACS510-01-05A6-4 suitable for pump applications?
Yes. It is suitable for pump, fan, and other variable speed control applications.
5. Does this model support industrial communication options?
Yes. Optional communication solutions can be used for integration with automation systems.
6. Can users adjust motor acceleration and deceleration settings?
Yes. Acceleration and deceleration parameters can be configured according to application requirements.
7. Does the drive include motor monitoring functions?
Yes. The converter provides monitoring and diagnostic features to support reliable operation.
8. Is this frequency converter suitable for OEM equipment?
Yes. Its compact structure and flexible configuration make it suitable for OEM machinery.
9. What protection functions are available in this drive?
The unit includes operational monitoring and protection features designed to support safe motor control.
10. How does this frequency converter improve industrial equipment operation?
It helps optimize motor speed control, improve process stability, and support efficient equipment performance.
