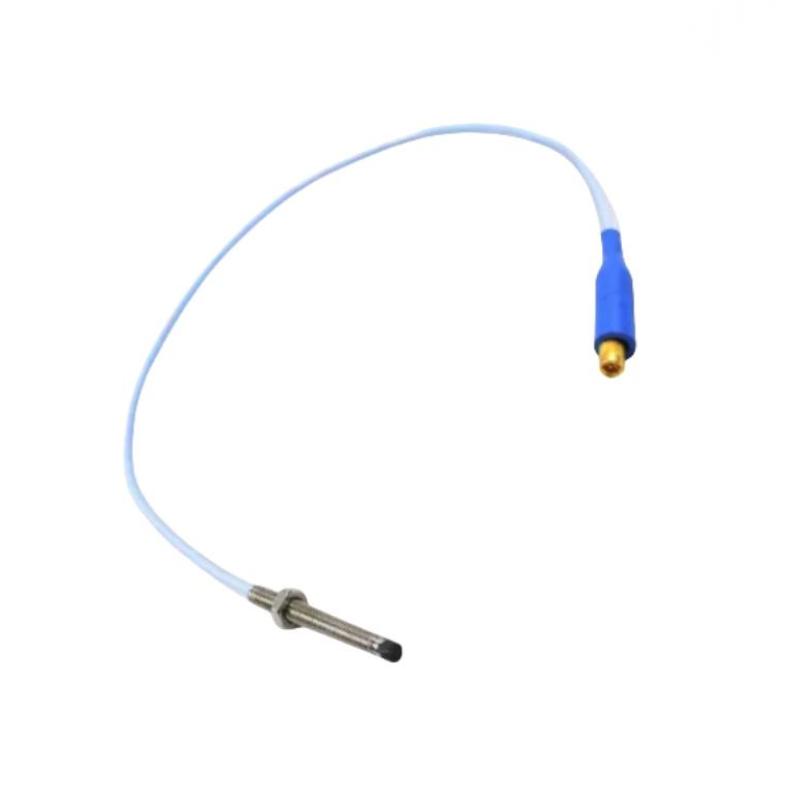

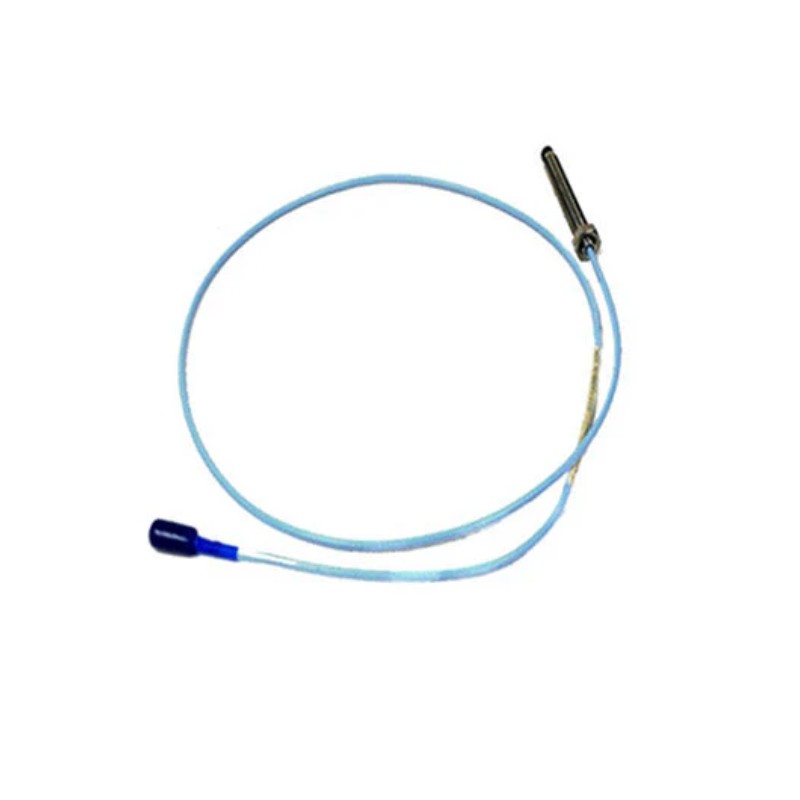

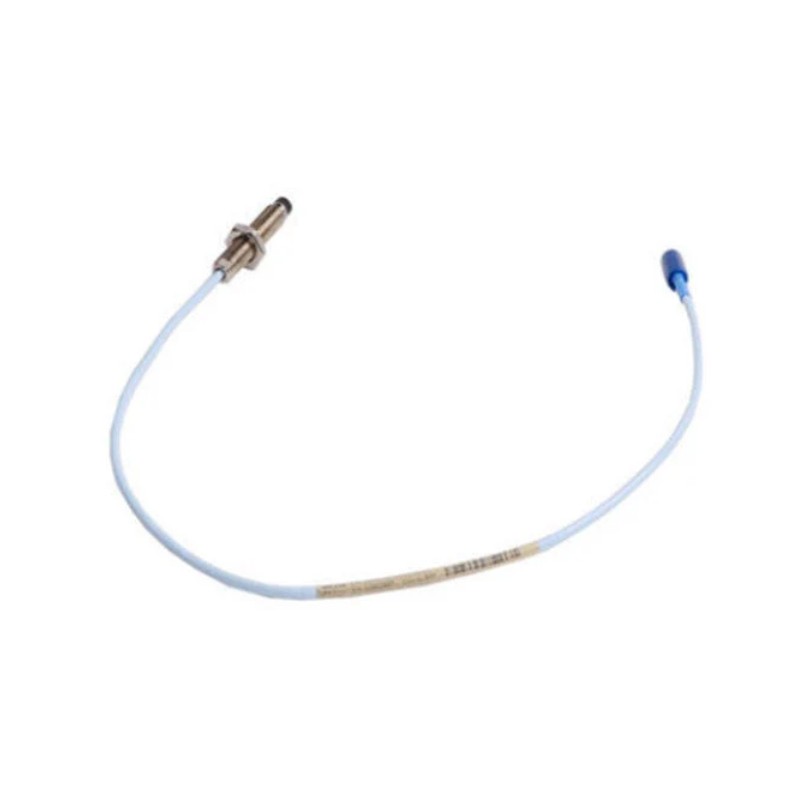

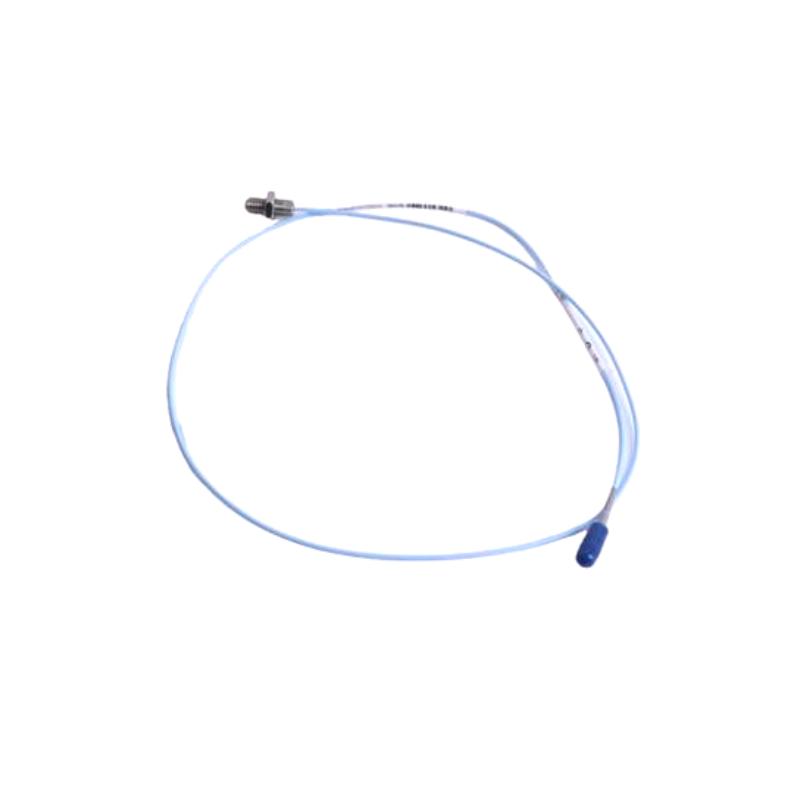

The Bently Nevada 330709-000-090-10-02-00 is a 3300 XL 11 mm proximity probe designed for high-precision, non-contact measurement of shaft vibration and displacement in rotating machinery.
It belongs to the Bently Nevada 3300 XL proximity transducer system and uses eddy current sensing technology to provide reliable vibration monitoring and machinery protection. This configuration features an M16 × 1.5 thread, 90 mm overall case length, 1.0 m total cable length, and a miniature coaxial ClickLoc connector with standard cable.
Technical Specifications
| Item | Specification |
|---|---|
| Brand | Bently Nevada |
| Series | 3300 XL |
| Model | 330709-000-090-10-02-00 |
| Product Type | 11 mm Proximity Probe |
| Measurement Principle | Eddy Current |
| Measurement Function | Shaft vibration & displacement |
| Probe Diameter | 11 mm |
| Thread Type | M16 × 1.5 |
| Unthreaded Length | 0 mm |
| Overall Case Length | 90 mm |
| Total Cable Length | 1.0 m |
| Connector Type | Miniature coaxial ClickLoc connector |
| Cable Type | Standard cable |
| Armor | Without armor |
| Approval Option | No agency approval required |
| Application | Rotating machinery condition monitoring |
Dimensions & Weight
| Item | Specification |
|---|---|
| Dimensions (L × W × H) | 100 × 100 × 30 mm |
| Weight | 2.00 kg |
Note: Weight refers to typical shipping/package weight; actual probe body weight is lower.
