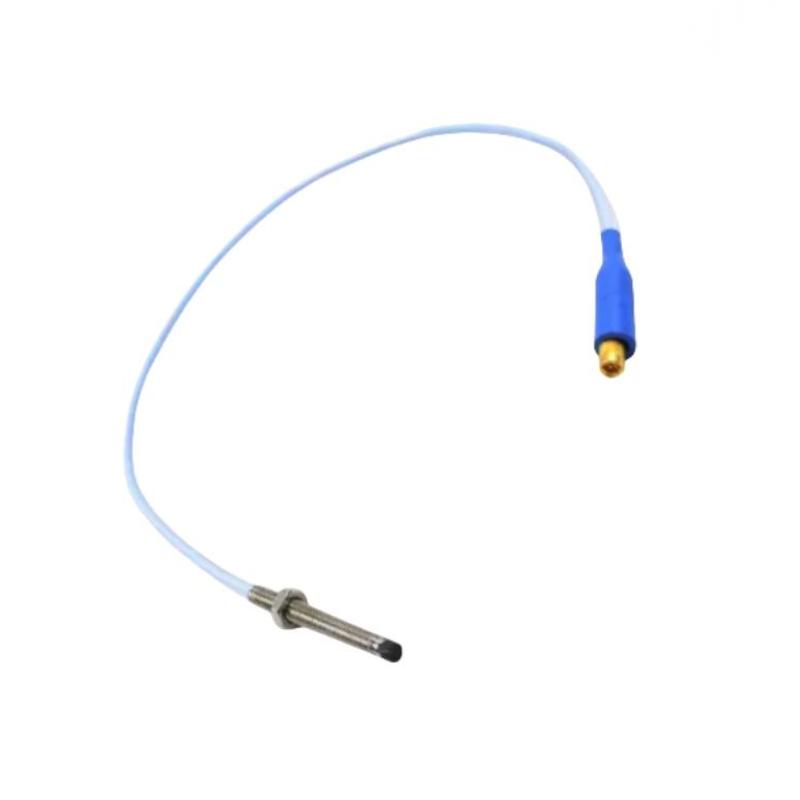

The Bently Nevada 330710-000-050-50-02-05 Proximity Probe is a high-performance 3300 XL 11 mm sensing solution designed for accurate shaft vibration and displacement monitoring in industrial machinery protection applications. Developed for continuous condition monitoring environments, this proximity probe provides reliable non-contact measurement capability for turbines, compressors, generators, and other critical rotating assets.
Featuring a compact 50 mm case length, 5.0-meter standard cable configuration, miniature coaxial ClickLoc connector, and enhanced approval configuration, the 330710-000-050-50-02-05 offers a dependable solution for demanding industrial installations. Its proven sensing technology helps maintenance teams obtain accurate machine condition data, improve troubleshooting efficiency, and support proactive equipment management.
Designed for long-term industrial operation, this proximity probe delivers a practical balance of measurement accuracy, installation flexibility, and system compatibility for modern machinery monitoring requirements.
Technical Specifications and Product Data
The Bently Nevada 330710-000-050-50-02-05 is engineered with a durable mechanical structure and stable sensing performance to support continuous machinery monitoring applications.
| Specification | Details |
|---|---|
| Manufacturer | Bently Nevada |
| Model Number | 330710-000-050-50-02-05 |
| Product Type | 3300 XL 11 mm Proximity Probe |
| Sensor Technology | Eddy Current Non-Contact Sensing |
| Probe Diameter | 11 mm |
| Unthreaded Length | 0 mm |
| Overall Case Length | 50 mm |
| Cable Length | 5.0 meters (16.4 ft) |
| Cable Type | Standard Cable |
| Connector Type | Miniature Coaxial ClickLoc Connector |
| Approval Configuration | Multiple Approval Option |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Probe Case Material | AISI 304 Stainless Steel |
| Cable Construction | 75 Ω Triaxial FEP Insulated Cable |
| Operating Temperature Range | Approx. -51°C to +177°C |
| Measurement Function | Shaft Vibration and Position Monitoring |
| Installation Method | Threaded Probe Mounting |
| Product Dimensions | Approx. 50 mm × 11 mm probe body size |
| Product Weight | Approx. 0.17 kg |
The compact probe design allows installation in areas with limited mounting space while maintaining reliable measurement performance. The 5-meter cable length provides additional flexibility for integration with compatible monitoring systems.
Recommended Related Models
For replacement projects, system expansion, or complete machinery protection solutions, the following models are commonly selected:
| Model | Description |
|---|---|
| Bently Nevada 330710-000-050-50-02-00 | 3300 XL 11 mm Proximity Probe Standard Configuration |
| Bently Nevada 330709-000-050-50-02-00 | 3300 XL 11 mm Proximity Probe Alternative Model |
| Bently Nevada 330730 | 3300 XL Extension Cable |
| Bently Nevada 330180 | Proximity Transducer System |
| Bently Nevada 3500/42M | Proximity Monitoring Module |
These related products provide flexible options for different machinery designs, cable requirements, and monitoring system configurations.
Popular Bently Nevada Models
Bently Nevada offers a broad range of machinery protection products designed to support industrial reliability, condition monitoring, and equipment performance management.
| Model | Product Category |
|---|---|
| 3300 XL Series | Proximity Measurement System |
| 3500/42M | Proximity Monitoring Module |
| 3500/22M | Transient Data Interface Module |
| 3500/25 | Keyphasor Module |
| 3500/15 | Power Supply Module |
These solutions are widely applied in industrial environments where accurate machine data and dependable protection strategies are essential.
