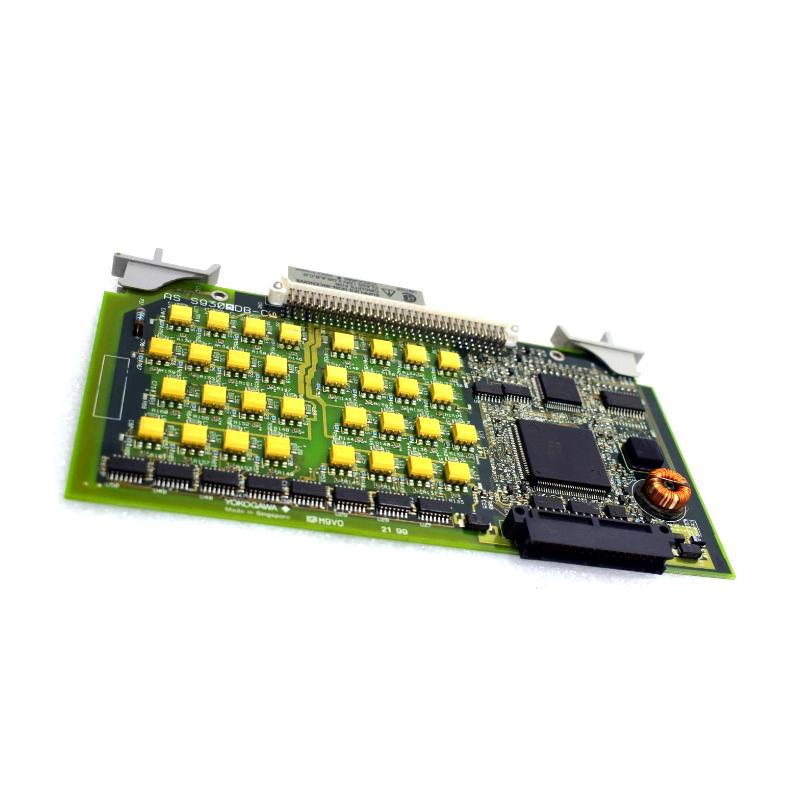

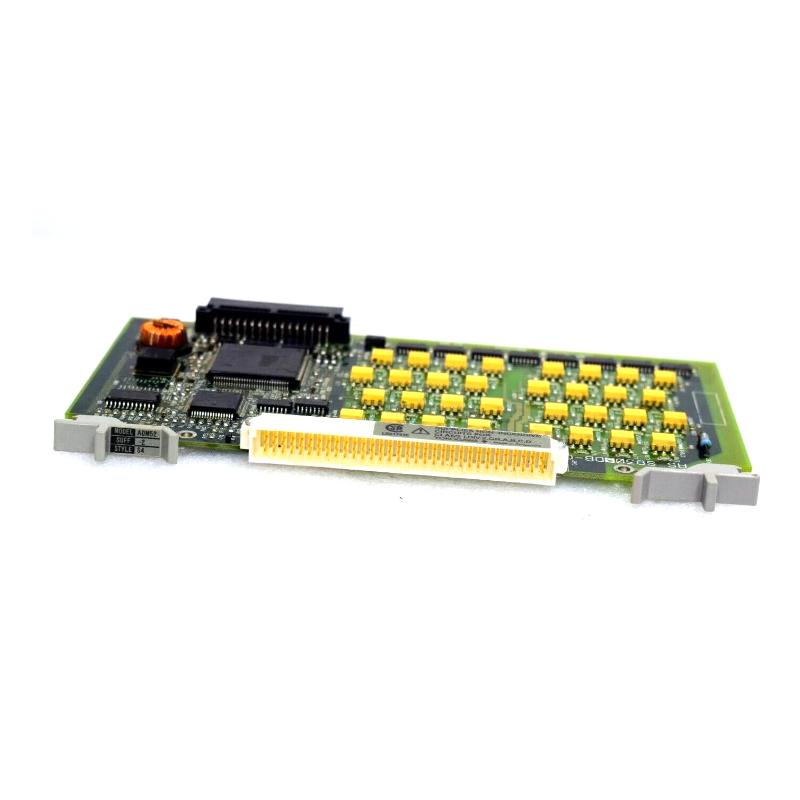

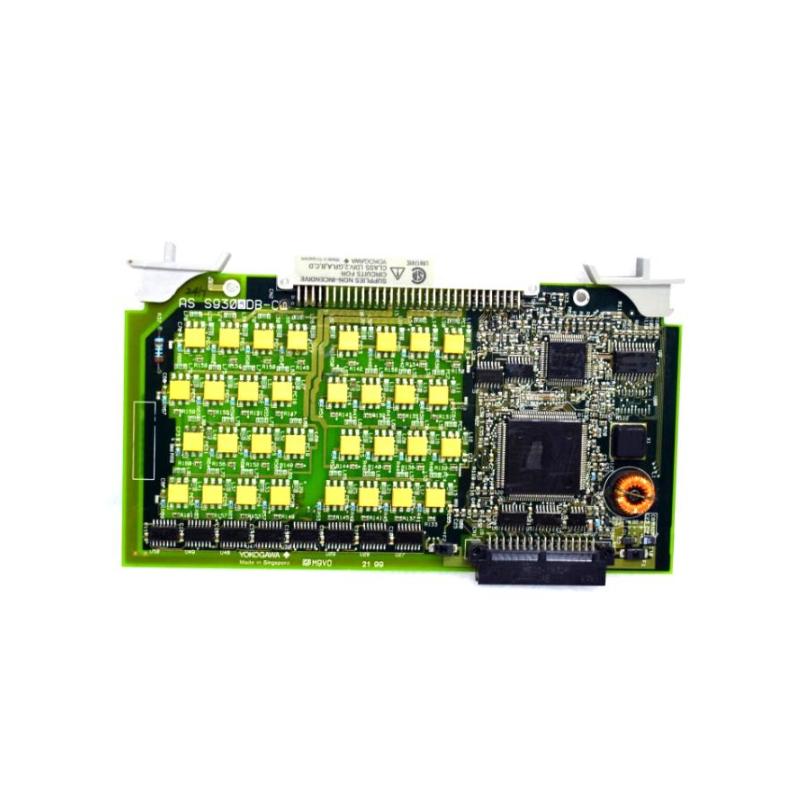

The Yokogawa ADM52-2 S4 Universal I/O Module offers enhanced flexibility, speed, and precision in industrial data acquisition and control applications. Designed to meet the demanding requirements of industries like power generation, chemical processing, oil & gas, and manufacturing, this advanced I/O module supports a wide range of sensors, including analog, digital, RTD, and thermocouple inputs. With its robust construction, high-speed signal processing, and seamless integration with Yokogawa’s automation systems, the ADM52-2 S4 is an ideal choice for optimizing industrial processes, improving efficiency, and ensuring operational reliability.

The ADM52-2 S4 is particularly well-suited for environments where real-time data acquisition and precise control are crucial. By providing fast and accurate measurements across multiple sensor types, the ADM52-2 S4 enables industries to make informed decisions, improve safety, and enhance overall system performance.

Technical Specifications

Model: ADM52-2 S4
Type: Universal I/O Module (Enhanced Version)
Number of Channels: 16 configurable input/output channels
Input Types:
- Analog (Voltage, Current)
- Digital (Discrete)
- RTD (Resistance Temperature Detector)
- Thermocouple (Types J, K, T, R, S, N, B, E)
Output Types:
- Analog (Voltage, Current)
- Digital (Discrete, Relay)
Accuracy:
- Analog Inputs: ±0.1% of full scale
- RTD Inputs: ±0.2% of full scale
- Thermocouple Inputs: ±0.5% of full scale
Power Supply: 24 VDC
Mounting Type: DIN rail or panel mount
Operating Temperature Range: -20°C to 60°C (-4°F to 140°F)
Dimensions (L x W x H): 6.7 x 4.1 x 2.6 inches (170 x 105 x 66 mm)
Weight: 1.4 lbs (635 g)
Signal Conversion Speed: 200 ms per channel (for both analog and digital I/O)
Communication Protocols: Yokogawa proprietary protocol, Modbus RTU, OPC
LED Indicators: Power, I/O status, Communication status

Recommended Related Models

Yokogawa FA-M3 PLC: A flexible, modular PLC that works seamlessly with the ADM52-2 S4 for scalable and efficient process control in industrial systems.
Yokogawa YS1700: A series of precision transmitters for accurate measurement of temperature, pressure, and flow, ideal for use alongside the ADM52-2 S4 in process automation.
Yokogawa ADMAG AXF: A magnetic flowmeter designed for high-precision flow measurement in industrial applications, complementing the ADM52-2 S4 for comprehensive process control.
Yokogawa DPharp EJA: High-accuracy digital pressure transmitters that integrate well with the ADM52-2 S4 to provide precise pressure measurements in critical environments.

Popular Yokogawa Models

Yokogawa CENTUM VP: A widely-used Distributed Control System (DCS) that integrates smoothly with the ADM52-2 S4, offering real-time process control and comprehensive system monitoring.
Yokogawa RX3i PLC: A high-performance modular PLC system for advanced control applications, which integrates perfectly with the ADM52-2 S4 for a more flexible and powerful control system.
Yokogawa YS1000: A smart transmitter series for real-time and highly accurate temperature, pressure, and flow measurements in demanding industrial applications.
Yokogawa EJX Series: Transmitters offering high accuracy for critical measurements in temperature, pressure, and flow, ideal for use with the ADM52-2 S4 in various process applications.

Applications

The Yokogawa ADM52-2 S4 Universal I/O Module is designed for a broad range of industrial applications requiring fast and reliable data acquisition and process control. Some typical applications include:

Power Generation: Ideal for monitoring key parameters such as turbine temperatures, pressures, and flow rates in power plants, ensuring optimal performance and safety.
Oil & Gas: Used in real-time monitoring of wellhead pressure, temperature, and flow in oil fields and refineries, improving operational safety and efficiency.
Chemical Processing: Provides data for monitoring temperature, pressure, and flow in chemical reactors and distillation columns, ensuring consistent production quality and system reliability.
Manufacturing Automation: Monitors production line parameters, including temperature and pressure, to ensure consistent product quality and minimize downtime.
Water and Wastewater Treatment: Optimizes the operation of water treatment facilities by providing accurate real-time data for controlling pumps, valves, and chemical dosing systems.
HVAC and Building Automation: Controls environmental conditions such as temperature and humidity, ensuring energy efficiency and occupant comfort in commercial and industrial buildings.

Advantages

Versatile I/O Configuration: The ADM52-2 S4 supports a wide variety of sensor types, including analog, digital, RTD, and thermocouple sensors, making it highly adaptable to different industrial environments.
Fast Signal Processing: With a conversion speed of 200 ms per channel, the ADM52-2 S4 provides quick data acquisition and real-time process monitoring for fast decision-making and response.
High Measurement Precision: The ADM52-2 S4 offers ±0.1% accuracy for analog inputs, ±0.2% for RTD inputs, and ±0.5% for thermocouple inputs, ensuring high-precision measurements in mission-critical applications.
Seamless Integration with Yokogawa Systems: Fully compatible with Yokogawa’s Distributed Control Systems (DCS), PLCs, and SCADA systems, the ADM52-2 S4 integrates effortlessly into existing automation setups.
Rugged and Reliable: Designed for harsh industrial environments, the ADM52-2 S4 operates in a wide temperature range of -20°C to 60°C, providing consistent performance even in challenging conditions.
Compact Design: Despite its high functionality, the ADM52-2 S4 maintains a compact size, allowing for easy installation in tight spaces or control panels.

Technical FAQs

What types of sensors are supported by the ADM52-2 S4?
- The ADM52-2 S4 supports analog (voltage, current), digital (discrete), RTD, and thermocouple sensors (Types J, K, T, R, S, N, B, E).
What is the accuracy of the ADM52-2 S4 for temperature measurements?
- The ADM52-2 S4 provides ±0.1% accuracy for analog inputs, ±0.2% for RTD inputs, and ±0.5% for thermocouple inputs.
How many channels are available on the ADM52-2 S4 module?
- The ADM52-2 S4 has 16 configurable input/output channels, offering flexibility for various types of industrial sensors.
What is the signal conversion speed of the ADM52-2 S4?
- The signal conversion speed is 200 ms per channel, providing fast data acquisition and response times for real-time monitoring.
What is the power supply requirement for the ADM52-2 S4?
- The ADM52-2 S4 operates on a 24 VDC power supply.
Can the ADM52-2 S4 be integrated with other Yokogawa systems?
- Yes, the ADM52-2 S4 integrates seamlessly with Yokogawa’s DCS, PLCs, and SCADA systems for enhanced automation and process control.
What is the operating temperature range for the ADM52-2 S4?
- The ADM52-2 S4 operates in temperatures ranging from -20°C to 60°C (-4°F to 140°F), making it suitable for various industrial environments.
What are the dimensions of the ADM52-2 S4?
- The ADM52-2 S4 module measures 6.7 inches in length, 4.1 inches in width, and 2.6 inches in height.
What mounting options are available for the ADM52-2 S4?
- The ADM52-2 S4 can be mounted on a DIN rail or directly to a panel, offering flexibility for different installation scenarios.
Is the ADM52-2 S4 suitable for hazardous industrial environments?
