Brand:Schneider PLC Item No.:BMXAMO0802H Product Origin:France Product Dimensions:100 × 32 × 86 mm Product Weight:0.15 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

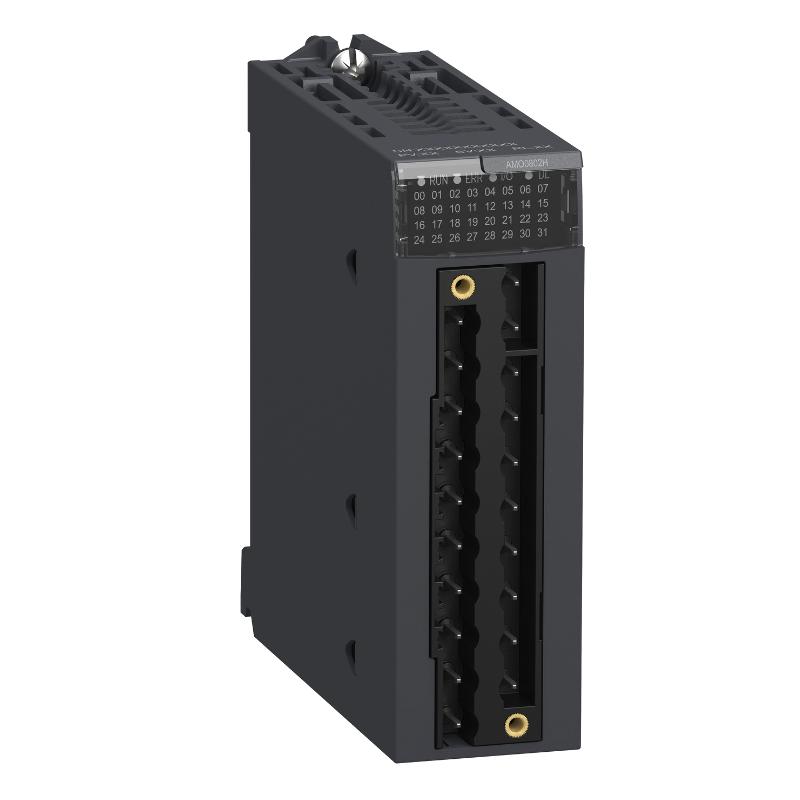

The Schneider BMXAMO0802H is an 8-channel analog output module designed for the Modicon X80 platform. It provides precise current signal output for industrial process control applications where accuracy and stability are critical.
This module is widely used in chemical processing, power systems, and manufacturing automation, delivering reliable analog control performance even in harsh industrial environments. Its compact design and high resolution make it suitable for complex multi-loop control systems.
Technical Specifications
Item
Value
Product Model
BMXAMO0802H
Type
Analog Output Module
Platform
Modicon X80
Output Channels
8
Output Type
0–20 mA / 4–20 mA
Resolution
16-bit
Conversion Time
≤ 4 ms
Load Impedance
≤ 350 Ω
Isolation
Non-isolated
Power Consumption
~3.6–3.9 W
Supply
Backplane powered
Protection
Conformal coating
Operating Temperature
-25 to 70 °C
Dimensions
100 × 32 × 86 mm
Weight
0.15 kg
Recommended Related Models
Model
Product Name
BMXAMI0802
Analog Input Module
BMXDDO3202KC
Discrete Output Module
BMXART0414
RTD/Temperature Input Module
BMXCPS4002
Power Supply Module
Popular Related Models
Model
Product Name
BMXDDI3202KC
Digital Input Module
BMXNOE0110
Ethernet Communication Module
BMXP342020
Processor Module
BMXCRA31210
Remote I/O Adapter Module
Applications
• Process Control Systems
Used to provide precise analog current outputs (0–20 mA / 4–20 mA) for actuators, valves, and control instrumentation in industrial automation.
• Chemical & Energy Industries
Supports continuous control of process variables such as flow, pressure, and temperature in critical industrial environments.
• Water & Wastewater Treatment Systems
Enables stable analog signal output for dosing systems, pumps, and control valves.
• Manufacturing Automation
Used in Modicon X80-based PLC systems for accurate multi-channel analog signal control.
Key Advantages
• 8-Channel High-Level Analog Output
Provides efficient multi-loop control in compact Modicon X80 architecture.
• High Resolution 16-bit Output
Ensures precise analog signal generation for industrial process control.
• Severe Environment Design
Built with conformal coating for reliable operation in harsh industrial conditions.
• Stable Current Output Control
Supports both 0–20 mA and 4–20 mA standards for flexible integration.
Technical FAQs
Q1 What is the main function of the BMXAMO0802H module?
A: It is an analog output module used to generate current signals for industrial process control systems.
Q2 What type of output signals does it provide?
A: It provides 0–20 mA and 4–20 mA analog current outputs.
Q3 How many output channels does it have?
A: It has 8 analog output channels.
Q4 What PLC system is it compatible with?
A: It is used in Schneider Modicon M340 and M580 (X80 platform) systems.
Q5 Is it suitable for harsh environments?
A: Yes, it is designed for severe industrial environments with protective coating.
Q6 What is the resolution of the output?
A: It provides 16-bit high-resolution analog output.
Q7 Does it support fault detection?
A: Yes, it supports open-circuit and short-circuit detection depending on configuration.
Q8 What is the response time of the module?
A: The conversion time is typically less than 4 ms.
Q9 Is it isolated between channels?
A: No, it uses a non-isolated channel architecture.
Q10 What is its main advantage in automation systems?
A: It enables precise and stable multi-channel analog control in distributed PLC systems.
