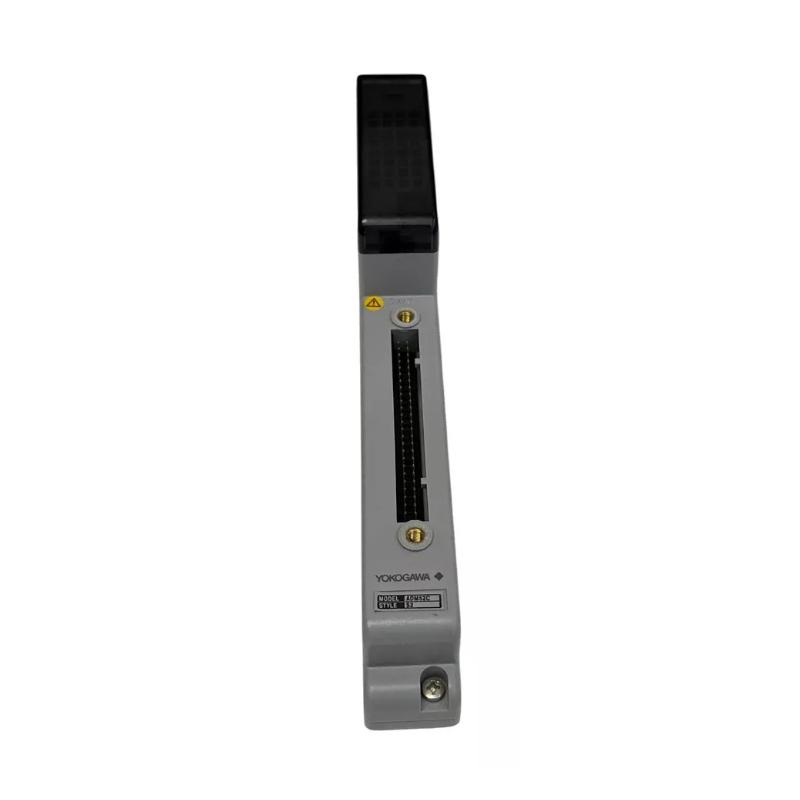

The Yokogawa ADM52C Universal I/O Module is a versatile and high-performance solution for data acquisition and control in industrial automation systems. Engineered for demanding applications across industries such as power generation, oil & gas, chemical processing, and manufacturing, the ADM52C module is designed to provide exceptional accuracy, reliability, and speed. With support for a wide range of input and output types—including analog, digital, RTD, and thermocouple sensors—the ADM52C ensures precise measurements and control for complex processes.

As part of Yokogawa's extensive range of automation products, the ADM52C integrates seamlessly with Yokogawa’s Distributed Control Systems (DCS) and other control architectures. Its robust construction and high-speed processing capabilities make it ideal for mission-critical applications requiring real-time data monitoring and control.

Technical Specifications

Model: ADM52C
Type: Universal I/O Module
Number of Channels: 16 configurable input/output channels
Input Types:
- Analog (Voltage, Current)
- Digital (Discrete)
- RTD (Resistance Temperature Detector)
- Thermocouple (Types J, K, T, R, S, N, B, E)
Output Types:
- Analog (Voltage, Current)
- Digital (Discrete, Relay)
Accuracy:
- Analog Inputs: ±0.1% of full scale
- RTD Inputs: ±0.2% of full scale
- Thermocouple Inputs: ±0.5% of full scale
Power Supply: 24 VDC
Mounting Type: DIN rail or panel mount
Operating Temperature Range: -20°C to 60°C (-4°F to 140°F)
Dimensions (L x W x H): 6.7 x 4.1 x 2.6 inches (170 x 105 x 66 mm)
Weight: 1.4 lbs (635 g)
Signal Conversion Speed: 200 ms per channel (for both analog and digital I/O)
Communication Protocols: Yokogawa proprietary protocol, Modbus RTU, OPC
LED Indicators: Power, I/O status, Communication status

Recommended Related Models

Yokogawa FA-M3 PLC: A flexible and modular PLC that integrates seamlessly with the ADM52C for scalable process control and automation.
Yokogawa YS1700: A precision transmitter for temperature, pressure, and flow measurement, complementing the ADM52C for accurate process control.
Yokogawa ADMAG AXF: Magnetic flowmeters for high-precision flow measurement in process industries, working together with the ADM52C to optimize control.
Yokogawa DPharp EJA: A series of pressure transmitters that provide accurate and reliable pressure measurements in industrial applications when paired with the ADM52C.

Popular Yokogawa Models

Yokogawa CENTUM VP: A leading Distributed Control System (DCS) that integrates seamlessly with the ADM52C, allowing real-time process monitoring and efficient control.
Yokogawa RX3i PLC: A highly scalable PLC for advanced process control, compatible with the ADM52C for flexible and powerful control systems.
Yokogawa YS1000: Smart transmitters offering precise real-time measurements for temperature, pressure, and flow, which can be integrated with the ADM52C.
Yokogawa EJX Series: Pressure transmitters that deliver high-precision measurement and reliability in harsh environments, ideal for use alongside the ADM52C.

Applications

The Yokogawa ADM52C Universal I/O Module excels in a variety of applications that demand precision, flexibility, and real-time data acquisition. Some typical uses include:

Power Generation: The ADM52C is used to monitor key parameters such as turbine temperature, pressure, and flow, optimizing plant performance and ensuring safe, reliable operation.
Oil & Gas: Ideal for monitoring wellhead pressure, flow rates, and temperature in upstream and downstream operations, improving efficiency and safety in the oil & gas industry.
Chemical Processing: Used for monitoring process variables such as temperature, pressure, and flow in chemical reactors, distillation columns, and filtration systems, ensuring consistent production and quality.
Manufacturing Automation: Provides real-time data to control production lines, monitoring key variables to ensure high-quality output and reduce system downtime.
Water and Wastewater Treatment: Provides data for controlling pumps, valves, and chemical dosing systems in water treatment plants, optimizing operations and improving water quality.
HVAC and Building Automation: Monitors and controls environmental conditions such as temperature and humidity, enhancing energy efficiency and occupant comfort in commercial and industrial buildings.

Advantages

Flexible I/O Configurations: The ADM52C supports multiple input and output types, including analog, digital, RTD, and thermocouple sensors, offering superior flexibility for a range of industrial applications.
High-Speed Data Processing: With a signal conversion speed of 200 ms per channel, the ADM52C provides fast data acquisition, enabling quick responses to changes in process conditions.
High Accuracy: The ADM52C offers exceptional accuracy with ±0.1% for analog inputs, ±0.2% for RTD inputs, and ±0.5% for thermocouple inputs, ensuring precise measurements in mission-critical applications.
Seamless Integration: Easily integrates with Yokogawa’s DCS, PLC, and SCADA systems, facilitating smooth operation in automated industrial processes.
Durable and Reliable: Built to perform in harsh environments, the ADM52C can withstand temperatures ranging from -20°C to 60°C, ensuring consistent operation even in demanding conditions.
Compact Design: Despite its robust features, the ADM52C has a compact design, making it easy to install in space-constrained control panels or industrial systems.

Technical FAQs

What types of sensors can be connected to the ADM52C module?
- The ADM52C supports analog sensors (voltage, current), digital sensors (discrete), RTDs, and thermocouples (Types J, K, T, R, S, N, B, E).
What is the accuracy of the ADM52C for temperature measurement?
- The ADM52C offers ±0.1% accuracy for analog inputs, ±0.2% for RTD inputs, and ±0.5% for thermocouple inputs.
How many input/output channels does the ADM52C provide?
- The ADM52C provides 16 configurable input/output channels, providing the flexibility to connect various sensors and control devices.
What is the signal conversion speed of the ADM52C?
- The ADM52C features a signal conversion speed of 200 ms per channel, which allows for real-time data acquisition and rapid response to changing conditions.
What power supply does the ADM52C require?
- The ADM52C operates on a 24 VDC power supply.
Can the ADM52C be integrated with Yokogawa’s control systems?
- Yes, the ADM52C is fully compatible with Yokogawa’s DCS, PLCs, and SCADA systems, enabling seamless integration for industrial automation.
What is the operating temperature range of the ADM52C?
- The ADM52C can operate within a temperature range of -20°C to 60°C (-4°F to 140°F), making it suitable for use in a wide range of industrial environments.
What are the dimensions of the ADM52C module?
- The ADM52C measures 6.7 inches in length, 4.1 inches in width, and 2.6 inches in height.
What are the mounting options for the ADM52C?
- The ADM52C can be mounted on a DIN rail or directly to a panel, offering flexible installation options.
Is the ADM52C suitable for hazardous environments?
