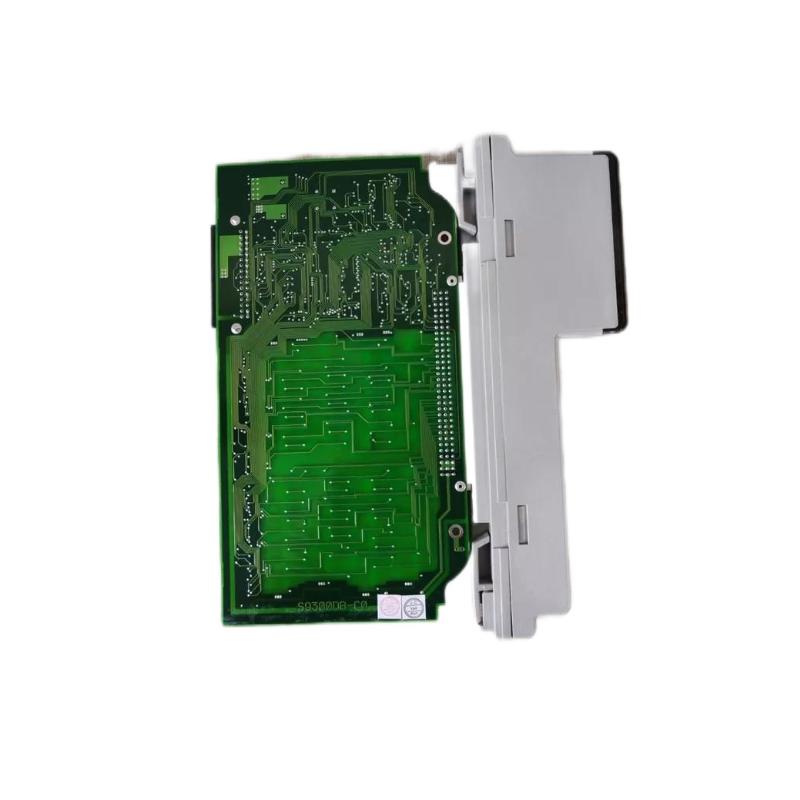

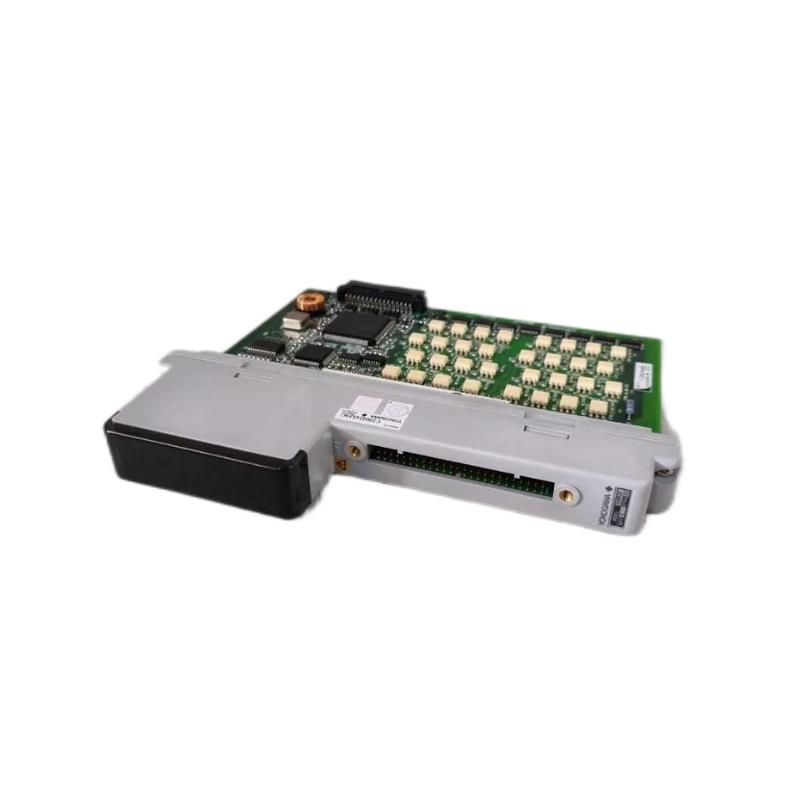

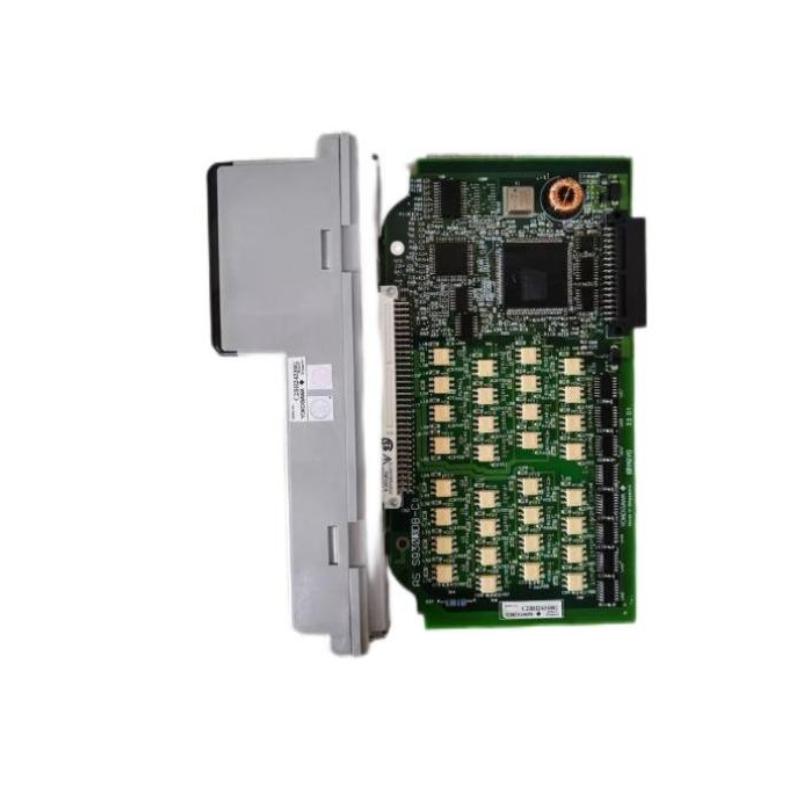

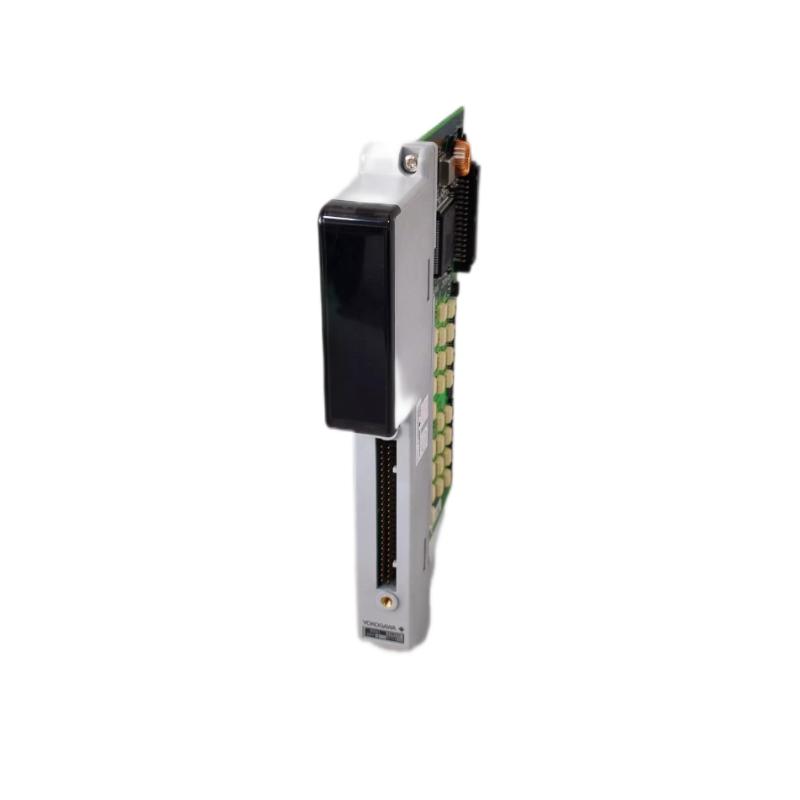

Yokogawa ADM52C-2-S3 Universal I/O Module – Precision and Flexibility for Critical Industrial Applications

Applications

The Yokogawa ADM52C-2-S3 Universal I/O Module is suited for various industrial applications that demand fast, accurate, and reliable data acquisition and control. Typical applications include:

• Power Generation: Monitors turbine temperature, pressure, and flow rate to optimize plant performance and ensure the safe operation of critical equipment.

• Oil & Gas: Tracks wellhead pressure, temperature, and flow in both upstream and downstream operations, improving operational efficiency and safety.

• Chemical Processing: Monitors and controls process variables such as temperature, pressure, and flow in reactors, distillation columns, and filtration systems to maintain consistent product quality.

• Manufacturing Automation: Tracks production line conditions, ensuring smooth, continuous production while minimizing downtime and maintaining product quality.

• Water and Wastewater Treatment: Manages pumps, valves, and chemical dosing systems to ensure efficient operation and improved water quality in treatment plants.

• HVAC and Building Automation: Monitors environmental variables such as temperature and humidity, enhancing energy efficiency and comfort in commercial and industrial buildings.

Advantages

• High Flexibility: Supports a wide range of input and output types, including analog, digital, RTD, and thermocouple sensors, making it adaptable to various industrial applications.

• Fast Data Acquisition: The ADM52C-2-S3 offers a fast signal conversion speed of 200 ms per channel, enabling real-time data processing and quick decision-making in critical operations.

• High Measurement Accuracy: Ensures precise measurements with ±0.1% accuracy for analog inputs, ±0.2% for RTD inputs, and ±0.5% for thermocouple inputs.

• Seamless Integration: Easily integrates with Yokogawa’s DCS, PLCs, and SCADA systems, ensuring efficient and reliable automation in complex industrial processes.

• Robust Performance: Built to perform in harsh industrial environments, the ADM52C-2-S3 operates within a wide temperature range of -20°C to 60°C, providing continuous reliability even under extreme conditions.

• Compact Design: Despite its powerful features, the ADM52C-2-S3 is compact, making it easy to install in tight spaces or within existing control panels.

Technical FAQs

1. What types of sensors are compatible with the ADM52C-2-S3 module?

   • The ADM52C-2-S3 supports a variety of sensors, including analog (voltage, current), digital (discrete), RTD, and thermocouple sensors (Types J, K, T, R, S, N, B, E).

2. What is the accuracy of the ADM52C-2-S3 for temperature measurements?

   • The module offers ±0.1% accuracy for analog inputs, ±0.2% for RTD inputs, and ±0.5% for thermocouple inputs.

3. How many channels does the ADM52C-2-S3 provide?

   • The ADM52C-2-S3 provides 16 configurable input/output channels, allowing for flexibility in connecting a wide range of sensors.

4. What is the signal conversion speed of the ADM52C-2-S3?

   • The ADM52C-2-S3 provides a signal conversion speed of 200 ms per channel, ensuring fast data processing for real-time applications.

5. What power supply does the ADM52C-2-S3 require?

   • The ADM52C-2-S3 operates with a 24 VDC power supply.

6. Can the ADM52C-2-S3 be integrated with other Yokogawa systems?

   • Yes, the ADM52C-2-S3 is fully compatible with Yokogawa’s DCS, PLCs, and SCADA systems, allowing for seamless integration into your existing industrial automation setup.

7. What is the operating temperature range of the ADM52C-2-S3?

   • The ADM52C-2-S3 operates in a temperature range of -20°C to 60°C (-4°F to 140°F), providing reliable performance in a wide variety of environments.

8. What are the dimensions of the ADM52C-2-S3 module?

   • The ADM52C-2-S3 module measures 6.7 inches in length, 4.1 inches in width, and 2.6 inches in height.

9. What are the mounting options available for the ADM52C-2-S3?

   • The module can be mounted on a DIN rail or directly to a panel, offering flexibility in installation based on your system requirements.

10. Is the ADM52C-2-S3 suitable for hazardous environments?

• Yes, the ADM52C-2-S3 is designed to function reliably in harsh and hazardous industrial environments, ensuring robust performance even under extreme conditions.
