Where It Excels in Industrial Use

• Proximity Transducer System Extension
  Designed to extend the connection between proximity probes and Proximitor sensors while maintaining reliable signal transmission for shaft vibration, displacement, and position monitoring applications.
• Rotating Machinery Condition Monitoring
  Suitable for steam turbines, gas turbines, compressors, pumps, motors, generators, and other critical rotating equipment requiring continuous monitoring.
• Machinery Protection Systems
  Provides dependable signal transmission between proximity probes and monitoring electronics for equipment protection and predictive maintenance applications.
• Harsh Industrial Installation Environments
  Suitable for applications requiring additional mechanical protection against vibration, abrasion, and physical stress.
• Remote Sensor Installation
  Allows flexible installation when proximity probes and monitoring electronics are separated by equipment layout or cabinet distance requirements.
• Long-Term Continuous Operation
  Designed for industrial monitoring systems requiring stable electrical performance and mechanical durability.

Key Strengths at a Glance

• 6.0 Meter Cable Length Configuration
  Provides extended installation flexibility between the proximity probe and Proximitor sensor.
• Stainless Steel Armored Construction
  Enhances mechanical protection and improves resistance to vibration, abrasion, and installation damage.
• Connector Protector Configuration
  Protects the connector area from mechanical stress and improves connection reliability.
• Without FEP Jacket Configuration
  Provides a compact armored cable design for applications where a separate FEP outer jacket is not required.
• Multiple Approval Configuration
  Suitable for installations requiring additional approval options.
• 75 Ω Coaxial Cable Design
  Maintains stable signal characteristics for compatible proximity monitoring systems.
• Reliable Signal Transmission Performance
  Typical electrical characteristics include approximately 50 Ω output resistance, 69.9 pF/m cable capacitance, and center conductor resistance of approximately 0.220 Ω/m.

Technical FAQs

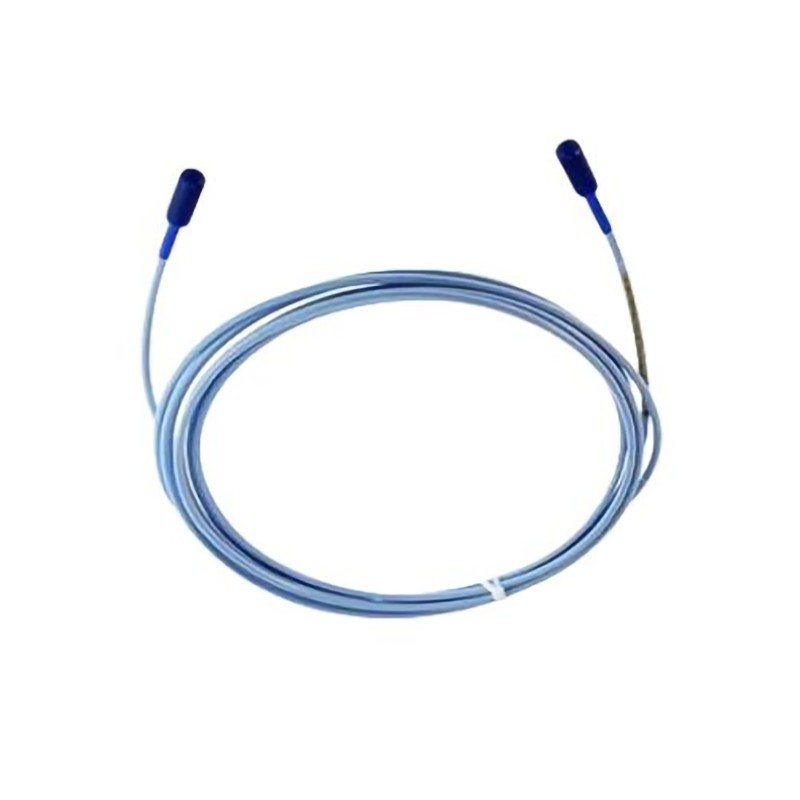

1. What is the primary function of the Bently Nevada 330930-060-05-05 extension cable?

It is used to extend the electrical connection between a proximity probe and Proximitor sensor while maintaining accurate vibration and shaft position measurement signals.

2. What is the cable length of this model?

This model provides a 6.0-meter cable length for flexible installation in rotating machinery monitoring systems.

3. What type of mechanical protection does this cable provide?

It uses stainless steel armored construction with connector protection to improve durability in industrial environments.

4. What is the purpose of stainless steel armor?

The armor helps protect the cable from vibration, abrasion, mechanical impact, and installation-related stress.

5. Why is connector protection important?

The connector protector reduces mechanical loading on connection points and helps maintain stable signal transmission during operation.

6. Which monitoring systems are compatible with this extension cable?

It is designed for compatible Bently Nevada 3300 XL / 3300 NSv proximity transducer systems.

7. What equipment commonly uses this extension cable?

Typical applications include turbines, compressors, pumps, motors, generators, and other rotating machinery.

8. Can this cable support continuous monitoring applications?

Yes. It is designed for continuous signal transmission in vibration monitoring and machinery protection systems.

9. What factors should be considered when selecting an extension cable?

Cable length, armor configuration, connector protection, approval requirements, system compatibility, and installation environment should be considered.

10. What components are normally connected with this cable?

It is normally installed between a compatible proximity probe and Proximitor sensor as part of a complete proximity transducer system.
