Where It Excels in Industrial Use

• Proximity Transducer System Extension
  Designed to extend the connection distance between proximity probes and Proximitor sensors while maintaining reliable signal transmission for shaft vibration, displacement, and position monitoring applications.
• Rotating Machinery Condition Monitoring
  Suitable for steam turbines, gas turbines, compressors, pumps, motors, generators, and other critical rotating equipment requiring continuous monitoring.
• Machinery Protection Systems
  Provides stable signal transmission between proximity probes and monitoring electronics for vibration protection and predictive maintenance applications.
• Harsh Industrial Environments
  Suitable for applications requiring additional mechanical protection against vibration, abrasion, oil exposure, and installation stress.
• Remote Sensor Installation
  Allows flexible installation when proximity probes and monitoring equipment are separated by equipment layout or control cabinet distance.
• Continuous Monitoring Applications
  Designed for long-term operation where signal stability and mechanical durability are required.

Key Strengths at a Glance

• 6.5 Meter Cable Length Configuration
  Provides extended installation distance between the proximity probe and Proximitor sensor for flexible system arrangement.
• Stainless Steel Armored Construction
  Enhances mechanical protection against vibration, abrasion, and external physical damage.
• FEP Jacket Protection
  Provides insulation performance and resistance to industrial environmental conditions.
• Multiple Approval Configuration
  Suitable for installations requiring additional agency approval options.
• 75 Ω Coaxial Cable Design
  Maintains stable electrical characteristics for accurate proximity signal transmission.
• 3300 XL NSv System Compatibility
  Designed for use with compatible Bently Nevada 3300 XL NSv proximity transducer systems.

Technical FAQs

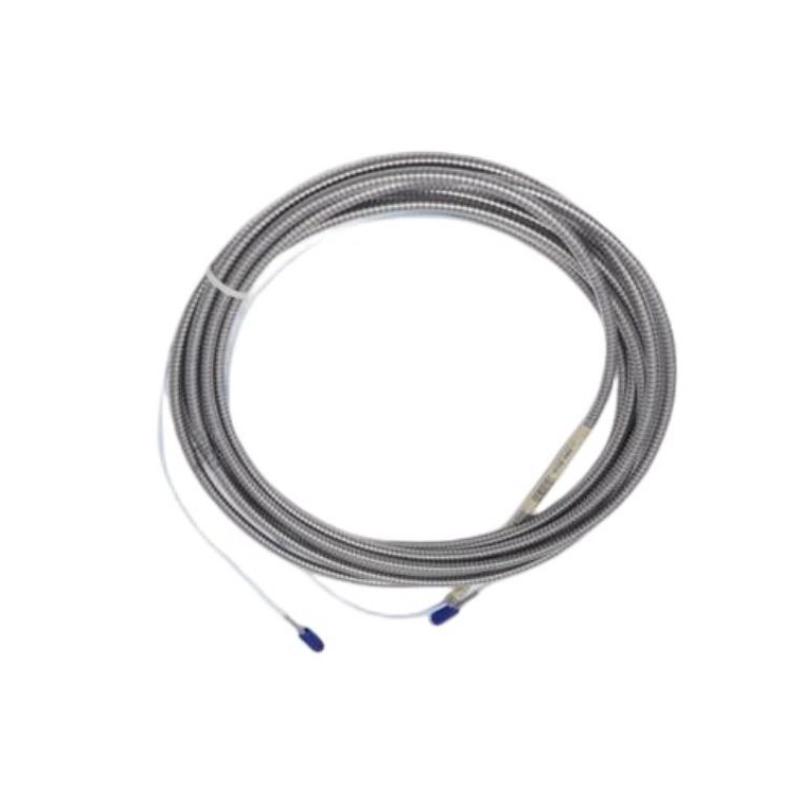

1. What is the primary function of the Bently Nevada 330930-065-01-05 extension cable?

It is used to extend the electrical connection between a proximity probe and Proximitor sensor while maintaining accurate vibration and shaft position measurement signals.

2. What is the cable length of this model?

This model provides a 6.5-meter cable length for flexible installation in rotating machinery monitoring systems.

3. What type of protection does this cable provide?

It uses stainless steel armor combined with an FEP jacket to improve mechanical strength and environmental protection.

4. What is the purpose of stainless steel armor?

The armor helps protect the cable from mechanical stress, vibration, abrasion, and accidental damage during installation and operation.

5. Why is the FEP jacket important?

The FEP jacket provides insulation protection and improves resistance to industrial conditions such as heat, oil, and chemical exposure.

6. Which monitoring systems are compatible with this extension cable?

It is designed for compatible 3300 XL NSv proximity transducer systems.

7. What equipment commonly uses this extension cable?

Typical applications include:

• Steam turbines
• Gas turbines
• Compressors
• Pumps
• Motors
• Generators
• Industrial rotating machinery

8. Can this cable support continuous monitoring applications?

Yes. It is designed for continuous signal transmission in machinery protection and condition monitoring systems.

9. What factors should be considered when selecting an extension cable?

Important factors include:

• Cable length
• Armor configuration
• Jacket type
• Approval requirements
• Probe and sensor compatibility
• Installation environment

10. What components are normally connected with this cable?

It is normally installed between a compatible proximity probe and Proximitor sensor as part of a complete proximity transducer system.
