Where It Excels in Industrial Use

• Proximity Transducer System Extension
  Designed to extend the connection between proximity probes and Proximitor sensors while maintaining reliable signal transmission for shaft vibration, displacement, and position monitoring applications.
• Rotating Machinery Condition Monitoring
  Suitable for turbines, compressors, pumps, motors, generators, and other critical rotating equipment requiring continuous monitoring of shaft movement and vibration conditions.
• Machinery Protection Systems
  Provides dependable signal transmission between sensing components and monitoring electronics for vibration protection and predictive maintenance applications.
• Harsh Industrial Environments
  Suitable for installations requiring enhanced mechanical protection against vibration, abrasion, and physical stress.
• Remote Sensor Installation
  Allows flexible installation where proximity probes and monitoring electronics are separated by equipment layout or installation distance.
• Critical Equipment Monitoring
  Supports long-term operation in industrial applications where signal stability and cable durability are important.

Key Strengths at a Glance

• 6.5 Meter Cable Length Configuration
  Provides extended installation distance between the proximity probe and Proximitor sensor for flexible system arrangement.
• Stainless Steel Armored Construction
  Improves mechanical protection and resistance to vibration, abrasion, and external damage.
• Without FEP Jacket Configuration
  Provides an armored cable design optimized for applications where a separate FEP outer jacket is not required.
• AE Configuration
  Indicates a specific configuration option for the cable assembly.
• 75 Ω Coaxial Cable Design
  Maintains stable signal transmission characteristics for compatible proximity monitoring systems.
• 3300 XL NSv System Compatibility
  Designed for use with compatible Bently Nevada 3300 XL NSv proximity transducer systems.

Technical FAQs

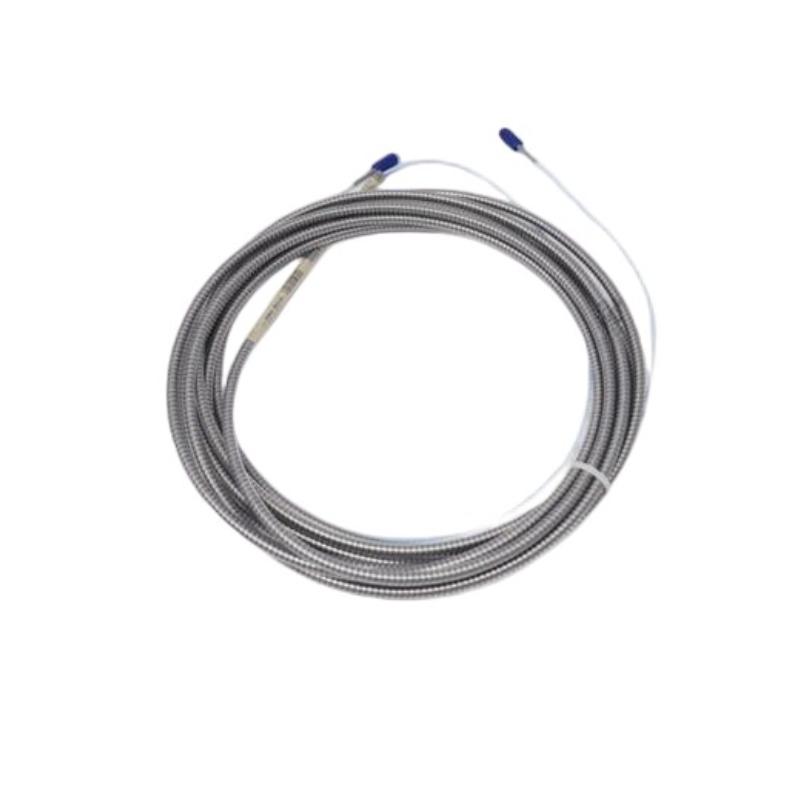

1. What is the primary function of the Bently Nevada 330930-065-02-AE extension cable?

It is used to extend the electrical connection between a proximity probe and Proximitor sensor while maintaining accurate vibration and shaft position measurement signals.

2. What is the cable length of this model?

This model uses a 6.5-meter cable length configuration for flexible installation in rotating machinery monitoring systems.

3. What type of mechanical protection does this cable provide?

It uses a stainless steel armored construction to improve resistance against vibration, abrasion, and mechanical stress.

4. Does this configuration include an FEP jacket?

No. The 02 configuration indicates stainless steel armor without an FEP jacket.

5. What is the purpose of stainless steel armor?

The armor helps protect the cable from mechanical damage and improves reliability in demanding industrial environments.

6. Which monitoring systems are compatible with this extension cable?

It is designed for compatible Bently Nevada 3300 XL NSv proximity transducer systems.

7. What equipment commonly uses this extension cable?

Typical applications include:

• Steam turbines
• Gas turbines
• Compressors
• Pumps
• Motors
• Generators
• Industrial rotating machinery

8. Can this cable support continuous monitoring applications?

Yes. It is designed for continuous signal transmission in vibration monitoring and machinery protection systems.

9. What factors should be considered when selecting an extension cable?

Important factors include:

• Cable length
• Armor type
• Jacket configuration
• Approval requirements
• Probe and sensor compatibility
• Installation environment

10. What components are normally connected with this cable?

It is normally installed between a compatible proximity probe and Proximitor sensor as part of a complete proximity transducer system.
