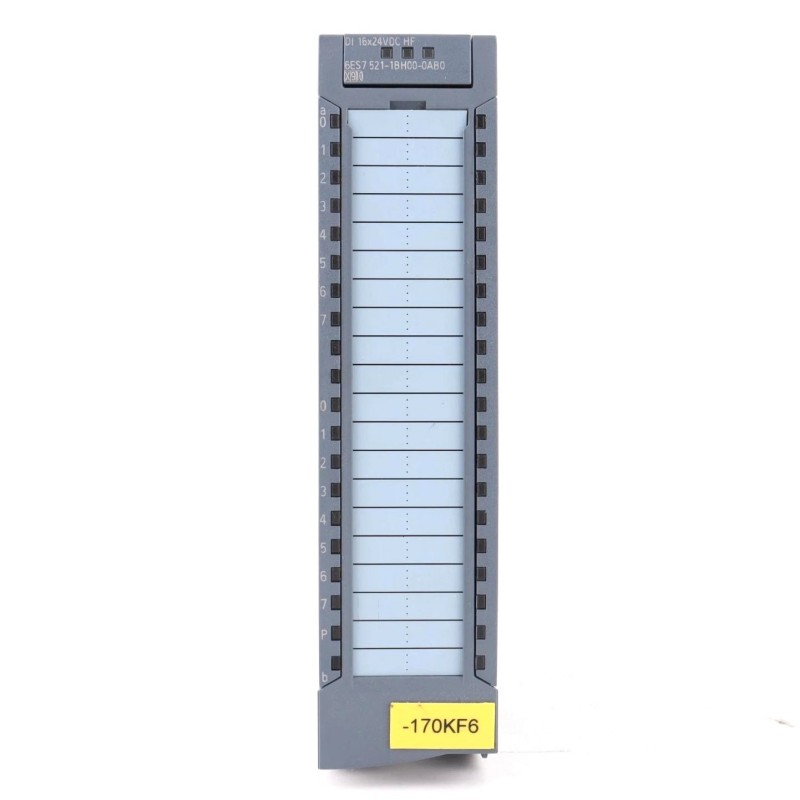

Siemens 6AG1521-1BH00-7AB0 Digital Input Module

Applications

The Siemens 6AG1521-1BH00-7AB0 Digital Input Module is designed for industrial automation systems that need reliable acquisition of discrete field signals. It can be used to connect sensors, switches, push buttons, limit devices, and other binary field equipment to a compatible Siemens PLC system.

Typical applications include:

• Machine status monitoring
• Production-line automation
• Sensor and switch signal acquisition
• Motor and actuator feedback
• Safety-related status monitoring within the appropriate system architecture
• Conveyor and material-handling systems
• Process equipment monitoring
• Distributed industrial I/O applications

The module provides a practical interface between field-level digital signals and the PLC control system, allowing the controller to respond to changes in equipment and process conditions.

Advantages

Reliable digital signal acquisition

The module is designed to collect discrete ON/OFF signals from industrial field devices and transfer their status to the central controller for processing.

Compact modular integration

With a 35 × 147 × 129 mm installation size, the module can be incorporated into a structured Siemens control cabinet while maintaining a modular I/O architecture.

Suitable for machine automation

Digital input modules are commonly used for detecting operating states, component positions, limit conditions, operator commands, and equipment feedback.

Industrial-oriented design

As part of the Siemens 6AG SIPLUS product family, the module is intended for industrial applications where environmental robustness can be an important factor in component selection.

Simplifies system expansion

Adding a dedicated digital input module allows engineers to expand the number of discrete signals handled by the automation system without redesigning the entire controller architecture.

Technical FAQs

1. What is the Siemens 6AG1521-1BH00-7AB0?

It is a Siemens Digital Input Module designed to acquire discrete signals from field devices and make those signal states available to the PLC control system.

2. What types of field devices can be connected to a digital input module?

Typical devices include push buttons, selector switches, proximity sensors, limit switches, contact signals, and other compatible binary field devices.

3. What is the purpose of a digital input module in a PLC system?

The module provides the interface between discrete field signals and the PLC. It receives field-level status information so that the CPU can use the information within the control program.

4. Can this module be used for machine status monitoring?

Yes. Digital inputs are commonly used to monitor equipment states such as position feedback, actuator status, machine interlocks, and operating conditions.

5. How should the input signal wiring be checked during commissioning?

Verify the field-device wiring, supply voltage, terminal assignment, signal polarity where applicable, grounding, and the corresponding input address in the PLC configuration.

6. What can cause an input signal to remain inactive?

Possible causes include incorrect wiring, missing field power, an improperly configured input address, a defective field device, unsuitable signal levels, or a problem elsewhere in the I/O system.

7. How can an intermittent digital input be diagnosed?

Check the field wiring and terminals first, then monitor the corresponding PLC input status while operating the field device. Loose connections, electrical interference, or unstable field devices should also be investigated.

8. Can the module be integrated into a distributed I/O architecture?

It can be used as part of a compatible Siemens modular automation architecture. The complete system configuration should be checked to determine the appropriate I/O and communication arrangement.

9. What should be verified before replacing the module?

Verify the exact order number, hardware configuration, firmware and system compatibility, terminal wiring, input assignments, and PLC project configuration before replacement.

10. What is important when commissioning digital inputs?

Each input should be tested against the actual field device and expected PLC status. Engineers should verify signal response, input addressing, wiring integrity, and diagnostic information before releasing the system for normal operation.
