Where It Excels in Industrial Use

• Proximity Transducer System Extension
  Designed to connect Bently Nevada proximity probes with Proximitor sensors while extending installation distance and maintaining stable vibration and displacement measurement signals.
• Rotating Machinery Condition Monitoring
  Suitable for turbines, compressors, pumps, motors, generators, and other critical rotating equipment requiring continuous shaft vibration and position monitoring.
• Machinery Protection Systems
  Provides reliable signal transmission for vibration monitoring, equipment protection, and predictive maintenance applications.
• Fluid Protection Applications
  Uses FluidLoc cable construction, improving resistance against fluid migration inside the cable structure and enhancing long-term reliability in demanding environments.
• Flexible Industrial Installation
  Suitable for applications where mechanical armor is not required but enhanced cable sealing performance is beneficial.
• Continuous Operation Environments
  Designed for long-term operation in industrial monitoring systems requiring stable electrical performance.

Key Strengths at a Glance

• 6.5 Meter Cable Length Configuration
  Provides extended installation distance between the proximity probe and Proximitor sensor.
• FluidLoc Cable Design
  Helps prevent fluid penetration through the cable and improves reliability in harsh industrial environments.
• Without Stainless Steel Armor
  Provides a more flexible cable configuration for easier routing and installation.
• With Connector Protector
  Protects connector areas from mechanical stress and improves connection durability.
• Multiple Approval Configuration
  Suitable for applications requiring additional approval options.
• 75 Ω Coaxial Cable Design
  Maintains stable signal transmission characteristics for proximity monitoring systems.

Technical FAQs

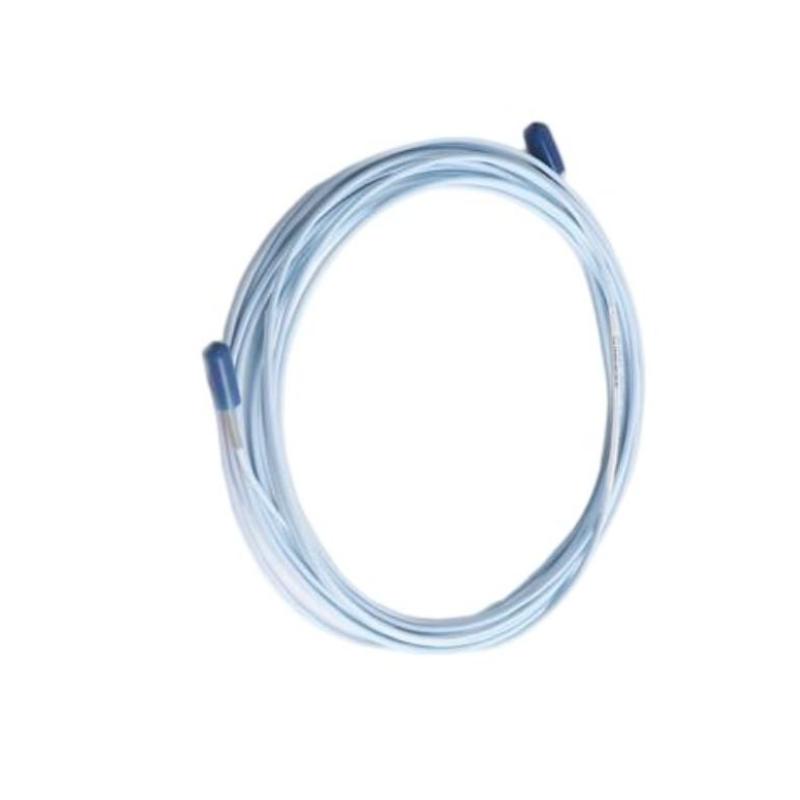

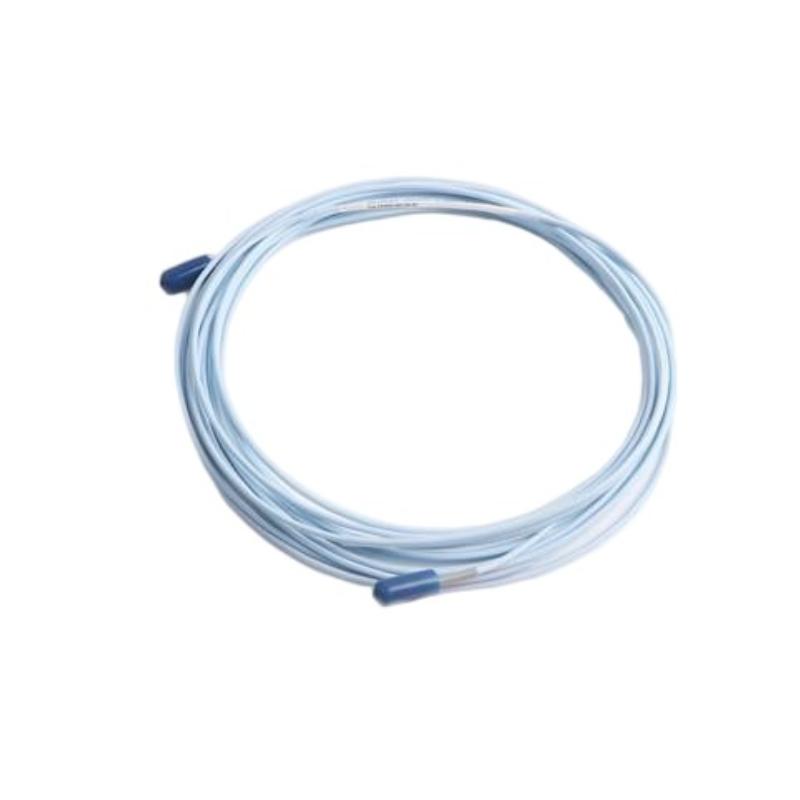

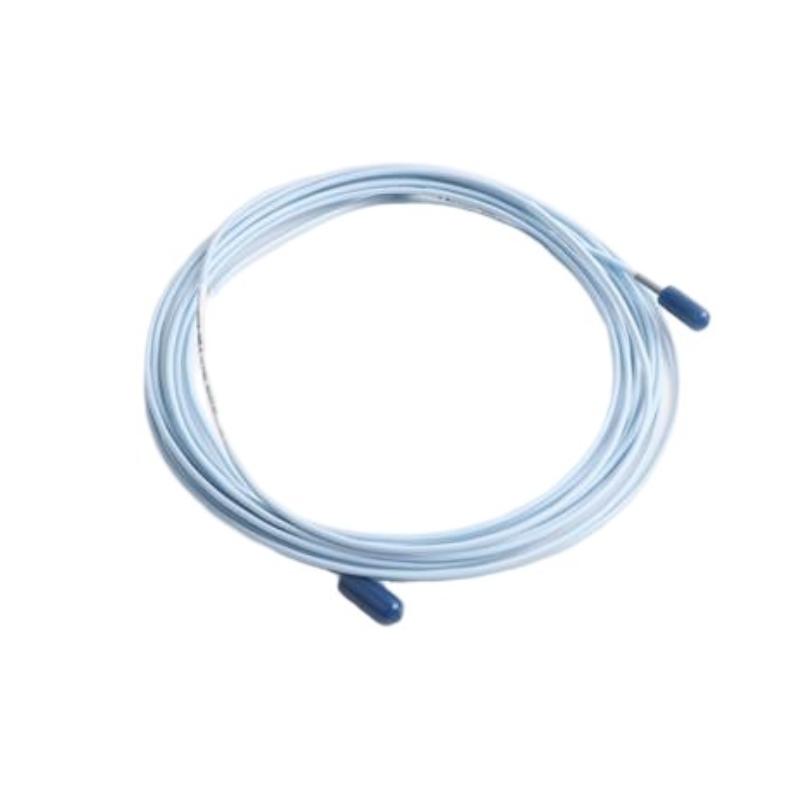

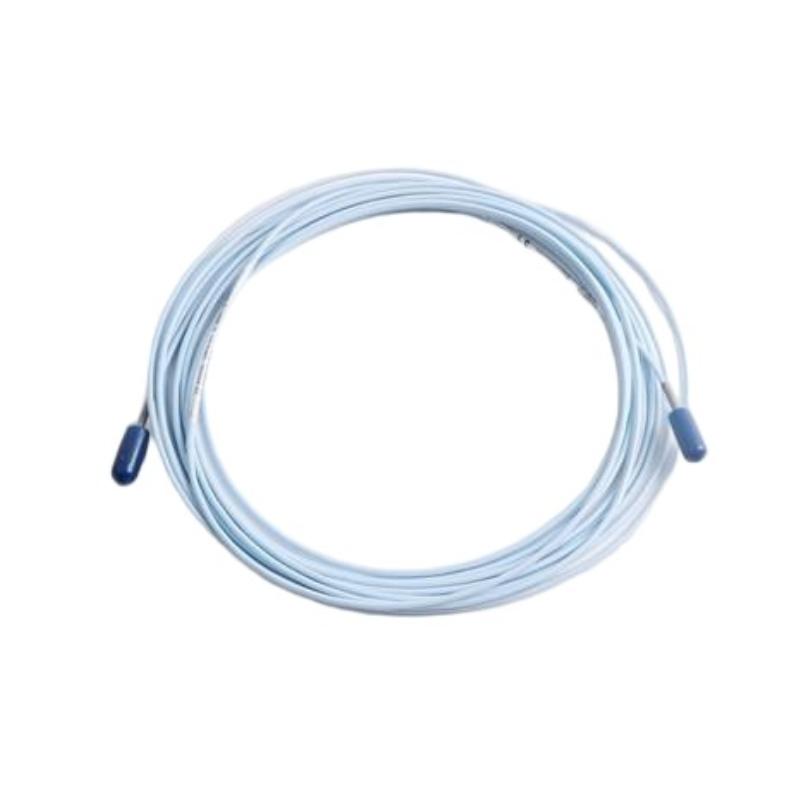

1. What is the primary function of the Bently Nevada 330930-065-09-05 extension cable?

It is used to extend the electrical connection between a proximity probe and Proximitor sensor while maintaining accurate vibration and shaft position measurement signals.

2. What is the cable length of this model?

This model uses a 6.5-meter cable length configuration.

3. What does the 09 configuration represent?

The 09 cable configuration indicates a FluidLoc cable design without stainless steel armor and with connector protectors.

4. What is the advantage of FluidLoc construction?

FluidLoc technology helps reduce the risk of fluid migration through the cable, improving reliability in industrial environments where oil, moisture, or process fluids may be present.

5. Does this model include stainless steel armor?

No. This model is a non-armored FluidLoc extension cable.

6. What is the purpose of the connector protector?

The connector protector reduces mechanical stress on the connector area and helps maintain reliable signal transmission.

7. Which monitoring systems are compatible with this extension cable?

It is designed for compatible Bently Nevada 3300 XL NSv proximity transducer systems.

8. What equipment commonly uses this cable?

Typical applications include:

• Steam turbines
• Gas turbines
• Compressors
• Pumps
• Motors
• Generators
• Large rotating machinery

9. Can this cable be used for continuous monitoring?

Yes. It is designed for continuous vibration and shaft position monitoring applications.

10. What should be considered when selecting this cable?

Selection factors include:

• Required cable length
• Armor requirement
• Fluid protection requirement
• Connector protection
• Approval configuration
• Probe and sensor compatibility
