Introduction to Advanced Front-Mount Proximity Sensing

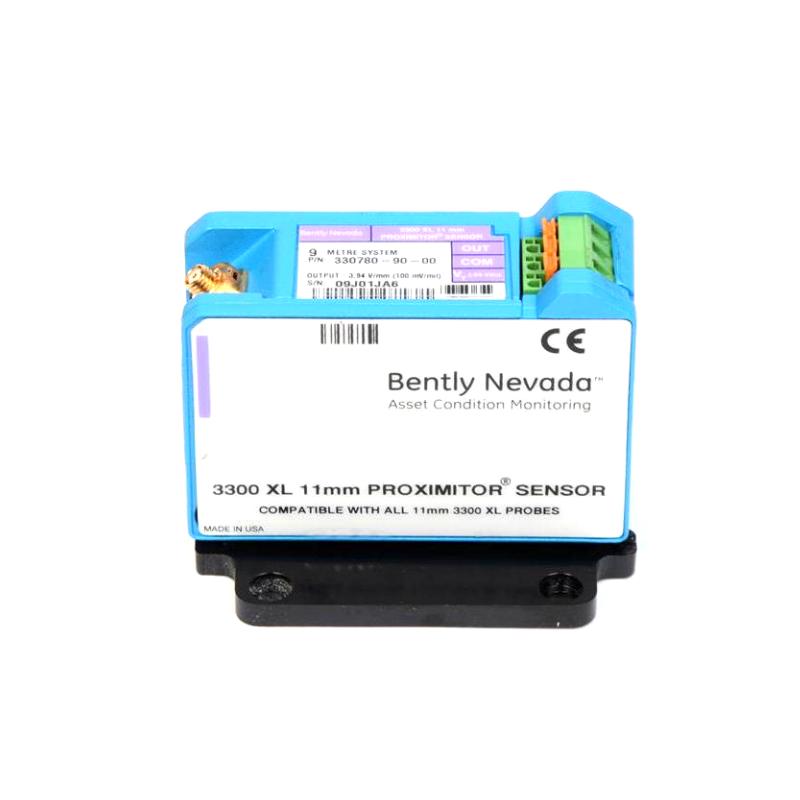

The Bently Nevada 330780-91-RU 3300 XL 11 mm Front Sensor is a precision monitoring component developed for industrial rotating equipment protection. It provides accurate shaft position and vibration measurement through advanced non-contact sensing technology, helping maintain reliable operation of critical machinery.

Designed with a 9-meter total length, this model supports installation flexibility for large rotating equipment where sensor placement requires extended cable routing. Its robust construction and dependable measurement capability make it suitable for demanding industrial environments.

By delivering consistent machinery condition information, this sensor supports improved maintenance decisions, enhanced equipment protection, and optimized operational performance.

Technical Specifications

Parameter	Specification
Manufacturer	Bently Nevada
Model Number	330780-91-RU
Product Type	3300 XL 11 mm Front Sensor
Series	3300 XL Series
Sensor Type	Front Mount Proximity Sensor
Sensing Technology	Eddy Current Non-Contact Measurement
Measurement Function	Shaft Vibration and Position Displacement Monitoring
Sensor Diameter	11 mm
Total Length	9 meters
Connector Type	Miniature Coaxial ClickLoc Connector
Cable Configuration	Integral Cable Design
Application	Rotating Machinery Condition Monitoring
Dimensions	Approx. 9180 × 18 × 18 mm
Weight	0.255 kg (0.56 lb)

Recommended Related Models for System Expansion

Model	Description
Bently Nevada 330180-51-00	3300 XL Proximitor Sensor for 11 mm applications
Bently Nevada 330730-090 Series	3300 XL 11 mm Extension Cable Family
Bently Nevada 330780-90-RU	3300 XL 11 mm Front Sensor Alternative Configuration
Bently Nevada 330780 Series	3300 XL 11 mm Front Sensor Product Family
Bently Nevada 3500/42M	Proximity Monitoring Module

Popular Related Models for Machinery Protection Systems

Model	Product Description
Bently Nevada 330780 Series	3300 XL 11 mm Front Sensor Family
Bently Nevada 330730 Series	3300 XL 11 mm Extension Cable
Bently Nevada 330180-91-00	3300 XL Proximitor Sensor
Bently Nevada 3500/42M	Proximity Monitoring Module
Bently Nevada 3500 Series	Machinery Protection System Platform

Applications in Precision Front-Mount Machinery Monitoring

The Bently Nevada 330780-91-RU 3300 XL 11 mm Front Sensor is designed for accurate non-contact measurement of shaft vibration, displacement, and position in critical rotating machinery applications. As part of the 3300 XL proximity sensing family, this front sensor provides dependable measurement performance for machinery protection, condition monitoring, and predictive maintenance systems.

This sensor is widely applied in industries where reliable rotating equipment monitoring is essential:

Industry	Application Examples
Power Generation	Turbine vibration monitoring, generator protection, and shaft position measurement
Oil & Gas	Compressors, pumps, expanders, and rotating process equipment monitoring
Petrochemical	Critical machinery condition analysis and protection systems
Industrial Manufacturing	Large motors, high-speed equipment, and production machinery monitoring
Energy Infrastructure	Asset reliability management and continuous machinery diagnostics

With a 9-meter total length configuration, this sensor provides flexible installation options for large equipment where the sensing location and monitoring electronics require extended distance.

Advantages for Reliable Proximity Measurement

The Bently Nevada 330780-91-RU 3300 XL 11 mm Front Sensor combines advanced eddy current sensing technology with proven industrial design to deliver accurate and stable machinery condition measurements. It is engineered for applications requiring reliable shaft monitoring and long-term operational performance.

Advantage	Description
High Measurement Accuracy	Provides precise shaft displacement and vibration monitoring
Non-Contact Operation	Eliminates mechanical wear through contact-free measurement
Front Sensor Configuration	Supports flexible installation for specific machinery designs
Extended Cable Capability	Allows convenient placement in large equipment systems
Stable Signal Performance	Maintains reliable measurement output for monitoring applications
Industrial Reliability	Designed for continuous operation in demanding environments

This sensor helps operators improve equipment availability, reduce unexpected downtime, and enhance machinery protection strategies.

Technical FAQs – Engineering & Application Knowledge

1. What is the main function of the Bently Nevada 330780-91-RU?
It is used to measure shaft vibration, displacement, and position changes in rotating machinery monitoring systems.

2. What sensing technology does this front sensor use?
It uses eddy current sensing technology to measure the distance between the sensor tip and the conductive shaft surface.

3. What is the benefit of a front sensor configuration?
The front sensor design provides installation flexibility for machinery layouts requiring specific mounting arrangements.

4. Which types of equipment can use this sensor?
It is commonly used for turbines, compressors, generators, pumps, and other critical rotating machinery.

5. Can this sensor be used with 3300 XL monitoring systems?
Yes. It is designed for compatibility with appropriate Bently Nevada 3300 XL proximity monitoring components.

6. Why is non-contact measurement important in rotating machinery?
It enables continuous monitoring without physical wear between the sensor and rotating shaft.

7. What factors influence proximity measurement performance?
Installation accuracy, probe gap adjustment, shaft surface condition, and system configuration affect measurement quality.

8. How does this sensor support predictive maintenance?
It provides continuous condition data that helps identify abnormal vibration and machinery performance changes.

9. Why is a longer cable configuration useful?
It allows installation where monitoring electronics are positioned away from the machine measurement point.

10. What should be verified before replacing this sensor?
The sensor model, cable length, system compatibility, electrical characteristics, and application requirements should be confirmed.
