Introduction to Precision Front Sensor Technology

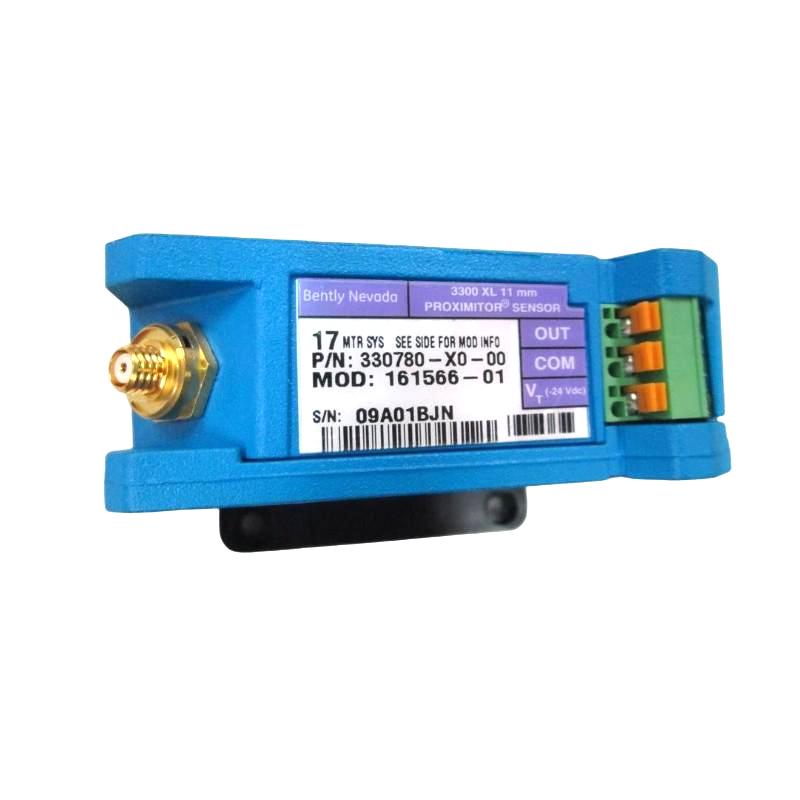

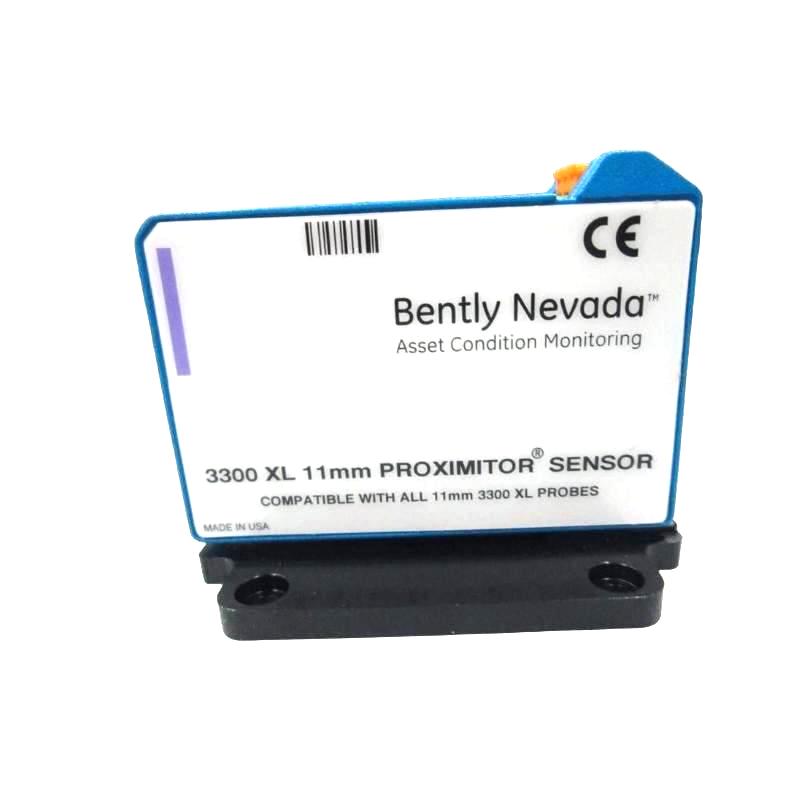

The Bently Nevada 330780-X0-00 3300 XL 11 mm Front Sensor is a precision-engineered monitoring component developed for critical rotating machinery applications. It provides accurate shaft displacement and vibration measurement through proven non-contact sensing technology.

With its compact mechanical design of 81.3 × 35.1 × 58.4 mm, this sensor offers excellent installation flexibility while maintaining reliable industrial performance. It is designed for applications where equipment protection, operational stability, and accurate condition monitoring are key priorities.

By delivering dependable measurement signals, this proximity sensor supports improved machinery diagnostics, efficient maintenance planning, and enhanced asset reliability.

Technical Specifications

Parameter	Specification
Manufacturer	Bently Nevada
Model Number	330780-X0-00
Product Type	3300 XL 11 mm Front Sensor
Series	3300 XL Series
Sensor Type	Front Mount Proximity Sensor
Sensing Technology	Eddy Current Non-Contact Measurement
Measurement Function	Shaft Vibration and Position Displacement Monitoring
Sensor Diameter	11 mm
Dimensions	81.3 × 35.1 × 58.4 mm
Mounting Style	Front Sensor Configuration
Connector Type	Industrial Sensor Connector
Application	Rotating Machinery Condition Monitoring
Operating Environment	Industrial Machinery Protection Systems
Weight	0.255 kg (0.56 lb)

Recommended Related Models for System Integration

Model	Description

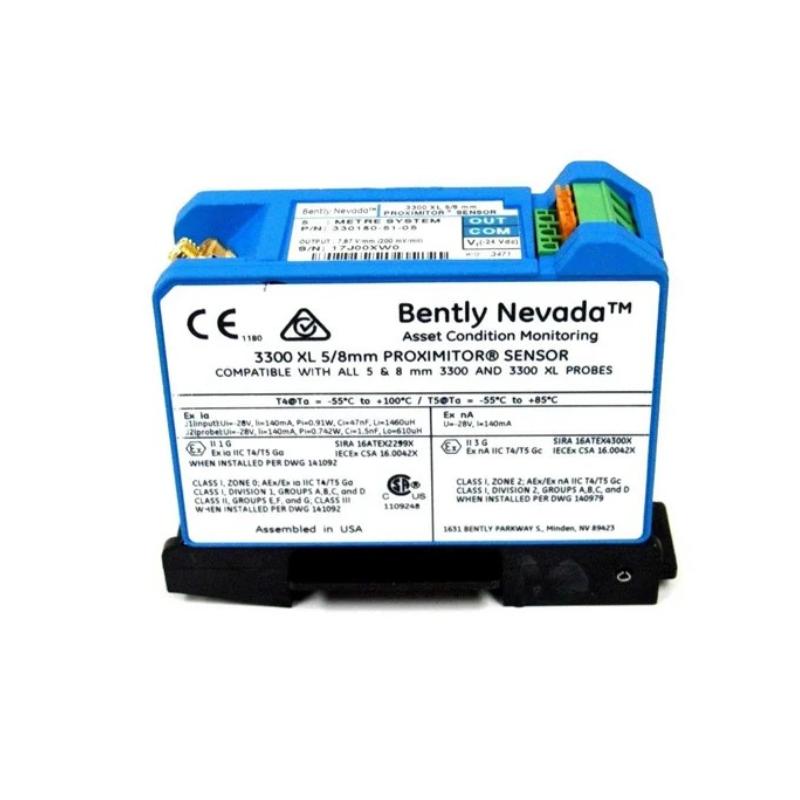

Bently Nevada 330180-51-00	3300 XL Proximitor Sensor
Bently Nevada 330780-91-RU	3300 XL 11 mm Front Sensor with 9-meter configuration
Bently Nevada 330730 Series	3300 XL 11 mm Extension Cable
Bently Nevada 3300 XL 11 mm Probe Series	Compatible Proximity Sensor Components
Bently Nevada 3500/42M	Proximity Monitoring Module

Popular Related Models for Industrial Machinery Monitoring

Model	Product Description
Bently Nevada 330780 Series	3300 XL 11 mm Front Sensor Family
Bently Nevada 330730 Series	3300 XL 11 mm Extension Cable Family
Bently Nevada 330180-91-00	3300 XL Proximitor Sensor
Bently Nevada 3500/42M	Proximity Monitoring Module
Bently Nevada 3500 Series	Machinery Protection System Platform

Applications for Advanced Rotating Machinery Protection

The Bently Nevada 330780-X0-00 3300 XL 11 mm Front Sensor is designed to provide precise non-contact measurement of shaft vibration, radial displacement, and axial position in critical rotating equipment. As part of the trusted 3300 XL proximity sensing platform, this sensor delivers reliable measurement performance for machinery protection, condition monitoring, and predictive maintenance applications.

This front sensor is commonly integrated into industrial systems requiring accurate and continuous machinery health monitoring:

Industry	Application Examples
Power Generation	Steam turbines, gas turbines, generators, and rotating equipment monitoring
Oil & Gas	Compressors, pumps, expanders, and process machinery protection
Petrochemical	Critical rotating equipment diagnostics and reliability management
Manufacturing	Large motors, high-speed machinery, and automated production systems
Energy Infrastructure	Continuous asset monitoring and equipment protection solutions

The compact front sensor design allows flexible installation in applications where accurate shaft measurement and efficient system integration are required.

Advantages for High-Performance Proximity Monitoring

The Bently Nevada 330780-X0-00 3300 XL 11 mm Front Sensor combines advanced eddy current sensing technology with durable industrial construction. It provides stable measurement performance for demanding rotating equipment applications where reliability and accuracy are essential.

Advantage	Description
Precision Measurement	Provides accurate shaft vibration and displacement detection
Non-Contact Sensing	Prevents mechanical wear through contact-free measurement
Front Sensor Design	Supports specialized mounting requirements and installation flexibility
Compact Structure	Enables integration into limited installation spaces
Reliable Signal Performance	Maintains consistent monitoring data during operation
Industrial Durability	Designed for long-term machinery protection applications

This sensor helps improve equipment reliability, optimize maintenance strategies, and reduce the risk of unexpected machinery failures.

Technical FAQs – Professional Engineering Questions

1. What is the primary function of the Bently Nevada 330780-X0-00?
It measures shaft vibration, displacement, and position changes in rotating machinery monitoring systems.

2. What sensing principle does this sensor use?
It uses eddy current technology to measure the distance between the sensor tip and the conductive shaft surface.

3. Why is non-contact measurement used for rotating equipment?
It allows continuous monitoring without physical contact, reducing wear and improving measurement stability.

4. Which machines are suitable for this front sensor?
It is commonly used on turbines, compressors, generators, pumps, and other critical rotating equipment.

5. What is the purpose of the front sensor configuration?
The front sensor configuration provides installation flexibility for machinery designs requiring specific mounting arrangements.

6. Can this sensor be used with 3300 XL monitoring systems?
Yes. It is designed for integration with compatible Bently Nevada 3300 XL proximity monitoring components.

7. What factors affect measurement accuracy?
Proper mounting, sensor gap adjustment, shaft surface condition, and system calibration influence performance.

8. How does this sensor support predictive maintenance?
It provides continuous machinery condition data that helps identify abnormal vibration and operational changes.

9. Why is compact sensor design valuable in industrial applications?
It allows installation in areas where space limitations prevent the use of larger sensing components.

10. What should be checked before replacing this sensor?
The sensor model, mounting configuration, system compatibility, and application requirements should be verified.
