Where It Excels in Industrial Use

• 3300 XL NSv Proximity Transducer System Extension
  Designed to extend the electrical connection between the proximity probe and Proximitor sensor while maintaining the calibrated signal characteristics required for vibration and shaft position monitoring.
• Rotating Machinery Condition Monitoring
  Suitable for compressors, turbines, pumps, motors, generators, and other critical rotating equipment where accurate shaft vibration measurement is required.
• Machinery Protection Applications
  Provides stable signal transmission for monitoring systems used in equipment protection, vibration analysis, and predictive maintenance.
• Harsh Industrial Installation Environments
  Stainless steel armored construction improves mechanical protection against abrasion, vibration, and installation stress.
• Compact Equipment Monitoring
  Designed for use with 3300 XL NSv proximity systems commonly applied in machines with limited installation space.

Key Strengths at a Glance

• 4.0 Meter Cable Length
  Provides a 4-meter extension distance between the proximity probe and Proximitor sensor.
• Stainless Steel Armor Protection
  Provides additional mechanical strength and improves cable durability in industrial environments.
• Without FEP Jacket Configuration
  Suitable for installations requiring armored protection without an outer FEP jacket.
• Standard Approval Configuration
  The suffix -00 indicates no additional agency approval option.
• 75 Ω Coaxial Cable Design
  Maintains stable electrical characteristics required for proximity measurement systems.
• NSv System Matched Cable Design
  Designed to work as part of the calibrated probe–extension cable–Proximitor sensor measurement loop.

Technical FAQs

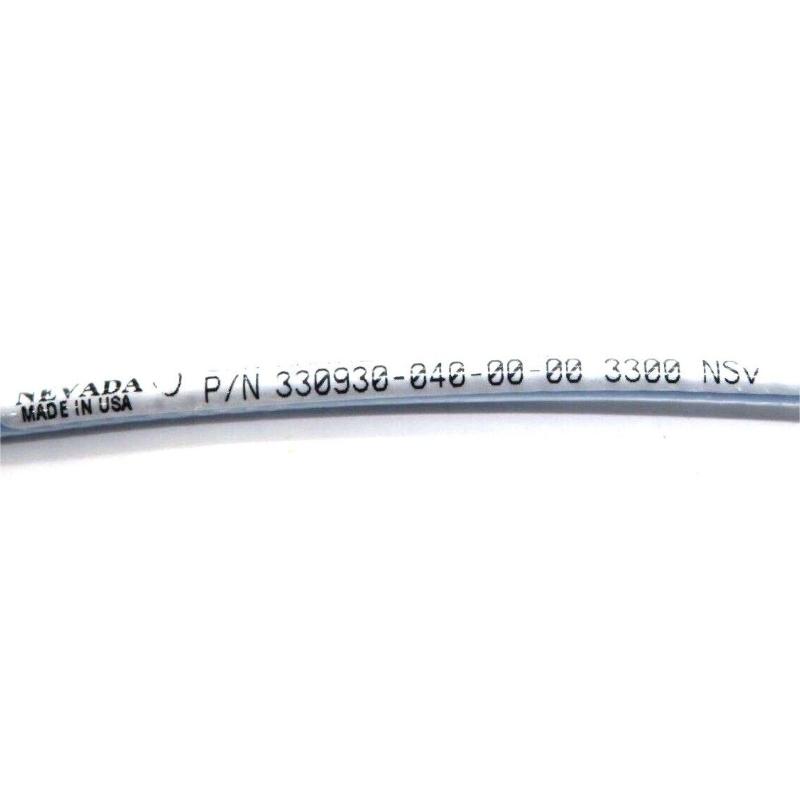

1. What is the primary function of the Bently Nevada 330930-040-02-00?

It is an extension cable used between a 3300 NSv proximity probe and Proximitor sensor to maintain accurate shaft vibration and displacement measurement signals.

2. What does the model number mean?

The part number can be interpreted as:

• 330930 → 3300 NSv Extension Cable series
• 040 → 4.0 meter cable length
• 02 → Stainless steel armor, without FEP jacket
• 00 → No additional approval option

3. Does this cable include stainless steel armor?

Yes. The -02- configuration includes stainless steel armor protection.

4. Does this model have an FEP outer jacket?

No. This configuration uses stainless steel armor without an FEP jacket.

5. What systems use this extension cable?

It is designed for the Bently Nevada 3300 XL NSv proximity transducer system.

6. What equipment commonly uses this cable?

Typical applications include:

• Steam turbines
• Gas turbines
• Centrifugal compressors
• Pumps
• Motors
• Generators
• Gearboxes

7. Can it replace other 3300 extension cables?

Not always. NSv systems require matched electrical characteristics including cable length, impedance, and capacitance. Replacing with an incorrect cable type may affect calibration accuracy.

8. What should be checked before replacement?

Confirm:

• System series (NSv or standard 3300 XL)
• Cable length
• Armor requirement
• Jacket configuration
• Approval requirements
• Probe and Proximitor compatibility

9. What is the main advantage of armored construction?

It improves resistance against mechanical damage, vibration, and harsh installation conditions.

10. What components form a complete NSv measurement loop?

A typical system includes:

1. 3300 NSv proximity probe
2. 330930 extension cable
3. 330980 NSv Proximitor sensor
