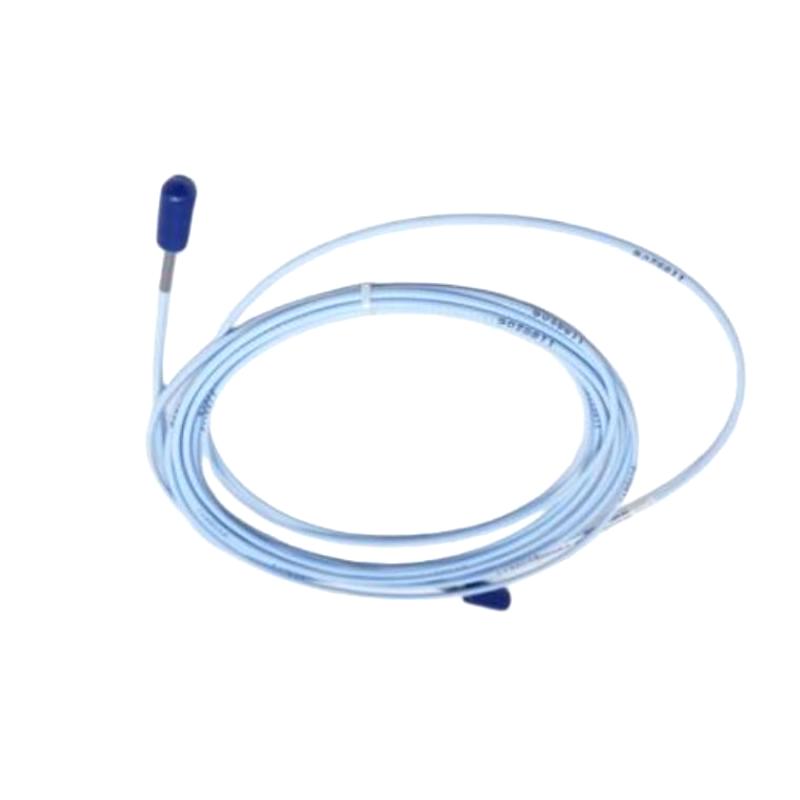

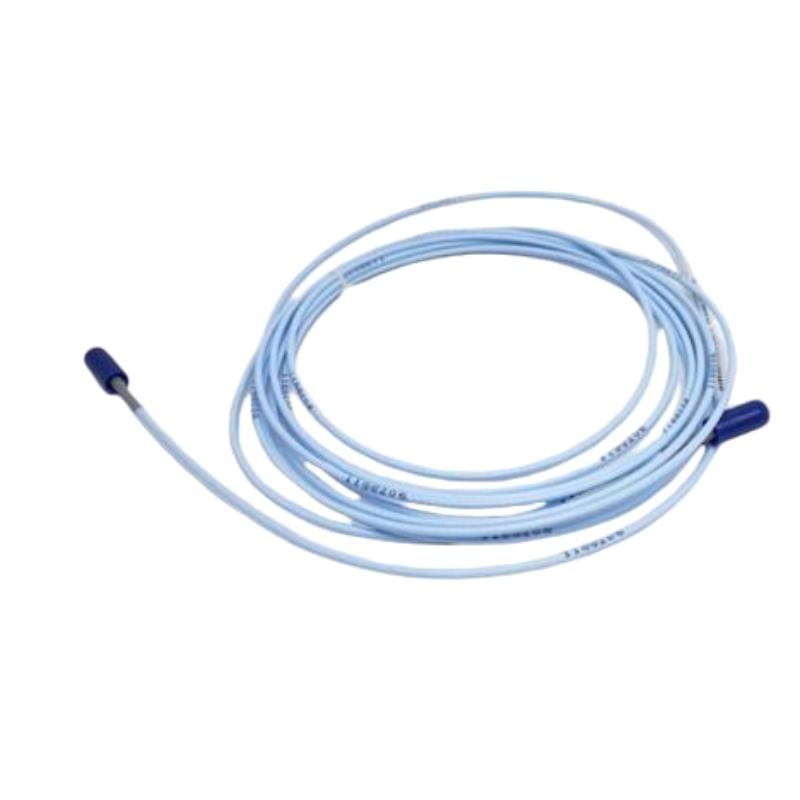

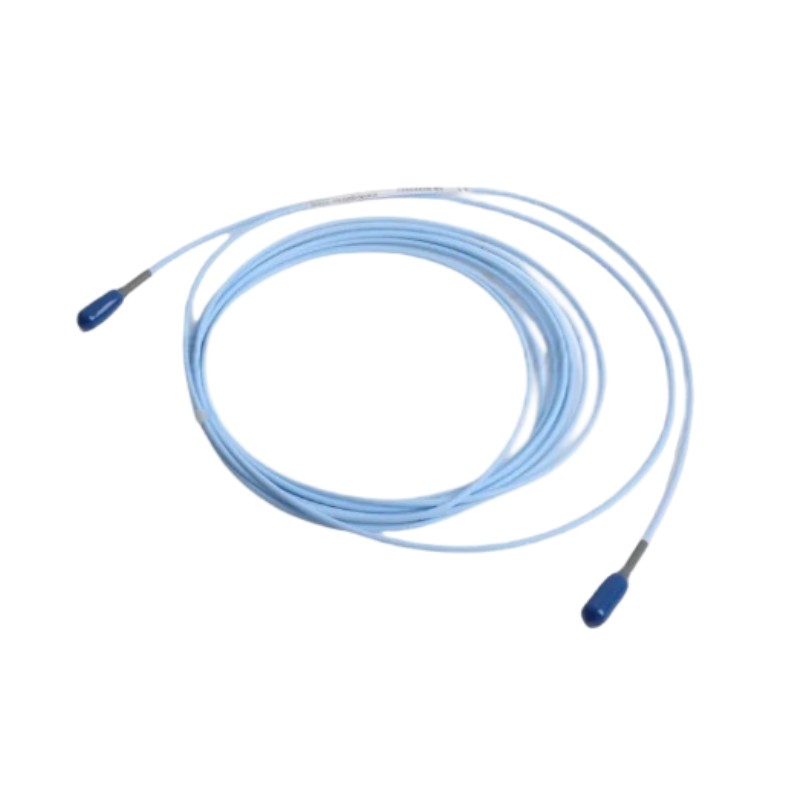

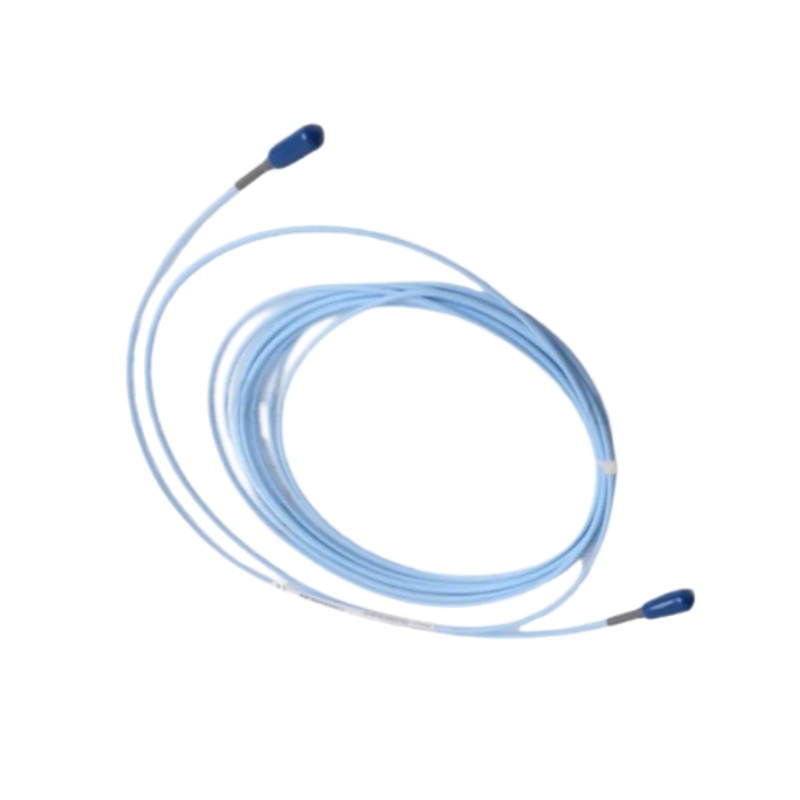

Bently Nevada 330930-060-02-00 Extension Cable Module

Applications

• Compact Rotating Equipment Monitoring:
The Bently Nevada 330930-060-02-00 Extension Cable Module is designed for use with 3300 XL NSv Proximity Transducer Systems, providing reliable signal connection for vibration and shaft position monitoring in compact rotating machinery applications.

• Industrial Turbine and Compressor Protection:
This extension cable supports condition monitoring systems used in gas turbines, steam turbines, process compressors, and other critical assets where stable proximity signal transmission is essential.

• Oil and Gas Process Equipment:
The module is suitable for demanding environments where machinery protection systems require dependable connections between proximity probes and Proximitor sensors.

• Predictive Maintenance Systems:
By maintaining consistent signal quality, this cable helps monitoring platforms collect accurate vibration and displacement data for equipment health analysis.

Key Advantages

• Armored Cable Protection Design:
The 330930-060-02-00 features a stainless steel armored construction without FEP jacket, providing enhanced mechanical protection for industrial installation environments.

• Reliable 3300 XL NSv Compatibility:
Designed specifically for Bently Nevada 3300 XL NSv systems, the module ensures dependable integration between the proximity probe and Proximitor sensor.

• Extended Installation Flexibility:
The 6-meter cable length allows convenient installation across various machinery layouts while maintaining stable measurement performance.

• High Signal Integrity:
The 75-ohm coaxial cable design helps maintain accurate signal transmission for vibration and position monitoring applications.

• Improved Equipment Reliability:
By supporting continuous monitoring performance, the cable contributes to effective machinery protection and reduced unexpected downtime.

Technical FAQs

1. What system is the Bently Nevada 330930-060-02-00 designed for?
The 330930-060-02-00 is designed for the Bently Nevada 3300 XL NSv Proximity Transducer System and connects compatible proximity probes with Proximitor sensors.

2. What is the main function of this extension cable module?
The extension cable provides a reliable signal connection between the proximity probe and sensor interface to support accurate vibration and displacement measurement.

3. Does the 330930-060-02-00 include stainless steel armor protection?
Yes, this model includes stainless steel armor protection and is configured without an FEP jacket.

4. What type of signal transmission technology does this cable use?
The cable uses a coaxial design with controlled electrical characteristics to maintain stable proximity measurement signals.

5. Can this extension cable be used for small target machinery applications?
Yes, the 3300 XL NSv system is designed for applications involving small targets and restricted installation spaces where traditional proximity systems may not be suitable.

6. How does the armored design improve system performance?
The armored construction provides additional mechanical protection against installation stress, vibration exposure, and physical impact.

7. Is the 330930-060-02-00 suitable for continuous monitoring systems?
Yes, it is designed for continuous machinery monitoring applications requiring stable long-term signal transmission.

8. What components are normally connected with this extension cable?
The cable is typically installed between a compatible 3300 NSv proximity probe and a 3300 XL NSv Proximitor sensor.

9. How does this cable support predictive maintenance strategies?
It helps ensure reliable vibration and position data transmission, allowing monitoring systems to identify developing machinery issues.

10. What installation factors should be considered when using this cable?
Engineers should consider system compatibility, correct cable routing, connector protection, and required probe-to-sensor distance during installation.
