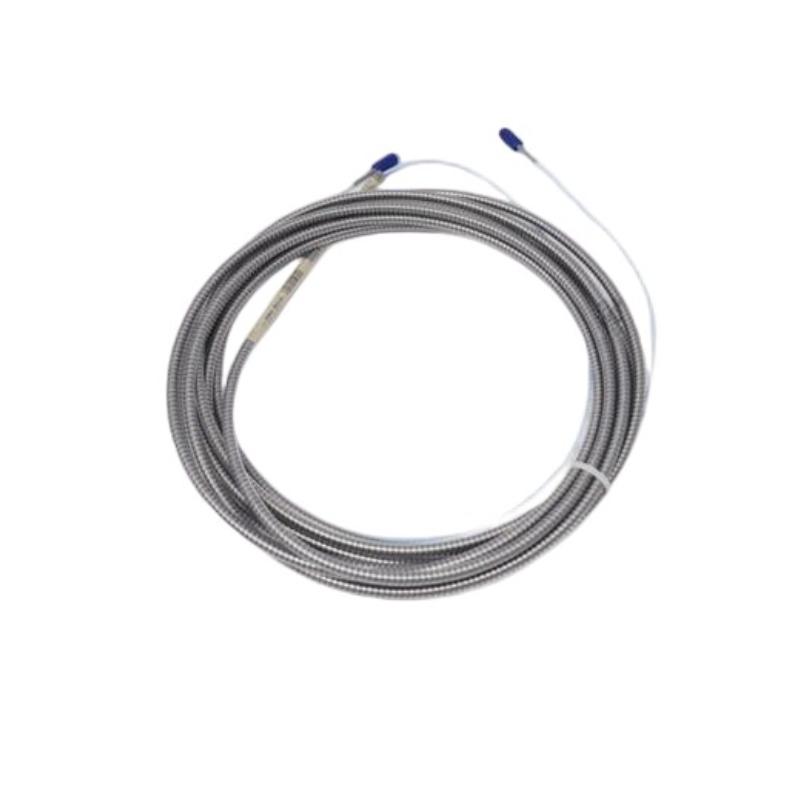

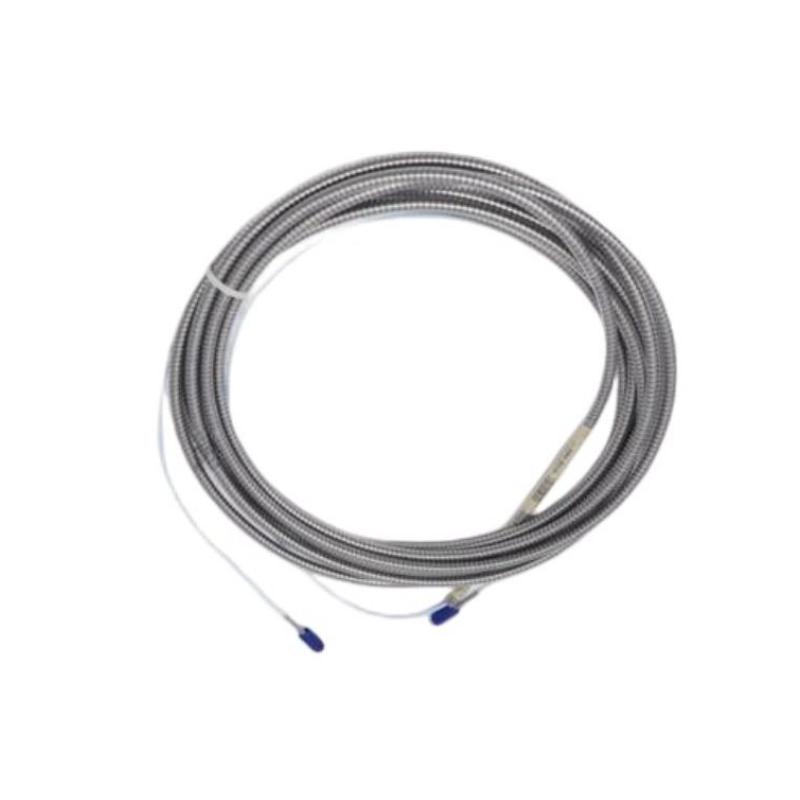

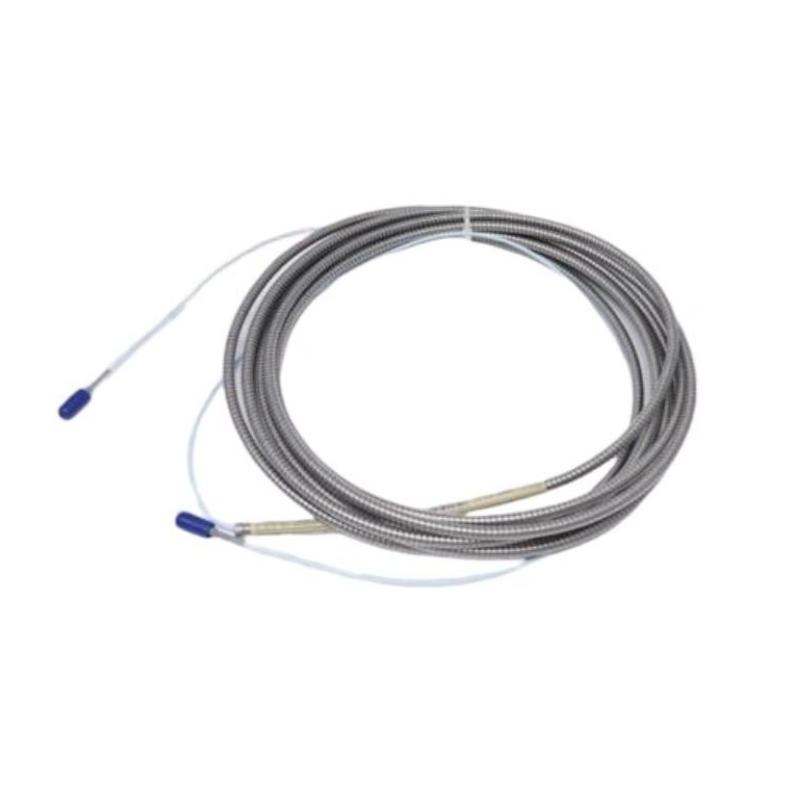

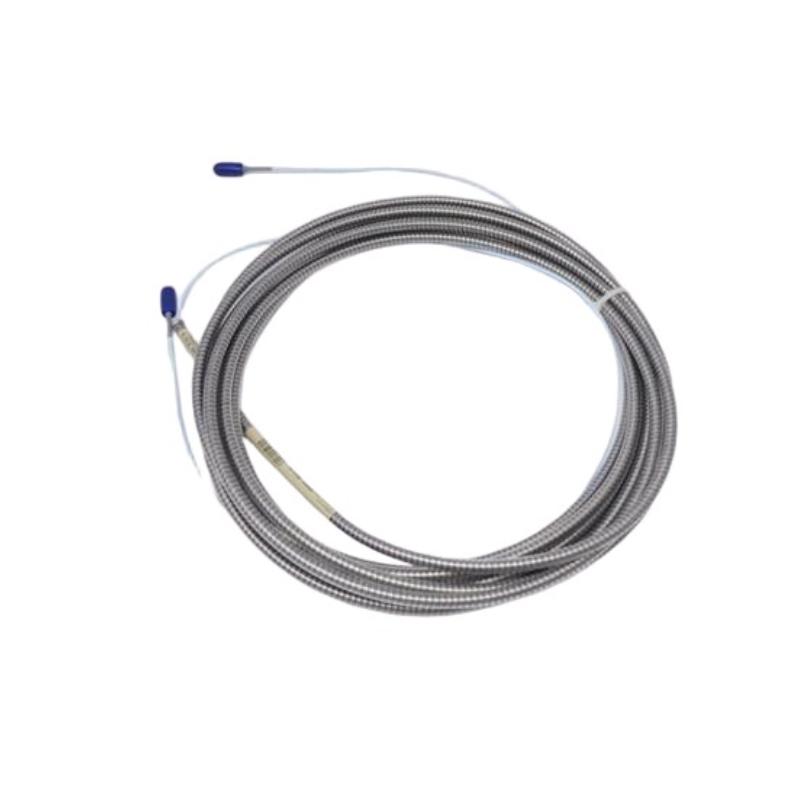

Bently Nevada 330930-065-00-05 Extension Cable Module

Applications

• Compact Machinery Vibration Monitoring:
The Bently Nevada 330930-065-00-05 Extension Cable Module is designed for 3300 XL NSv Proximity Transducer Systems, providing reliable signal connection for vibration, radial position, and axial position monitoring in compact rotating equipment.

• Turbine and Compressor Protection Systems:
This extension cable supports critical machinery protection applications in gas turbines, steam turbines, compressors, and other rotating assets where stable proximity signal transmission is required.

• Oil and Gas Process Equipment:
The module is suitable for harsh industrial environments where accurate machinery condition data is essential for safe and efficient operation.

• Predictive Maintenance Applications:
By maintaining consistent electrical performance between probes and sensors, the cable helps monitoring systems collect reliable operating data for equipment health assessment.

Key Advantages

• Reliable 3300 XL NSv System Compatibility:
Designed specifically for Bently Nevada NSv proximity monitoring configurations, ensuring dependable connection between proximity probes and Proximitor sensors.

• High Signal Integrity Design:
The 75 Ω coaxial cable construction helps maintain stable signal transmission characteristics for accurate vibration and displacement measurement.

• Extended Installation Flexibility:
The 6.5-meter cable length provides additional installation range for machinery layouts requiring greater distance between sensing components and monitoring electronics.

• Multiple Approval Configuration:
The -05 suffix provides a multiple agency approval option, supporting broader industrial deployment requirements.

• Durable Industrial Performance:
The FEP-insulated cable design provides reliable operation in demanding environments where long-term signal stability is required.

Technical FAQs

1. What system is the Bently Nevada 330930-065-00-05 Extension Cable Module used with?
The 330930-065-00-05 is designed for the Bently Nevada 3300 XL NSv Proximity Transducer System and connects compatible proximity probes with Proximitor sensors.

2. What is the primary function of this extension cable?
The extension cable provides a stable signal connection path between the proximity probe and monitoring electronics for accurate machinery condition monitoring.

3. What type of cable technology is used in this model?
This model uses a 75 Ω coaxial cable design with FEP insulation to maintain consistent electrical characteristics.

4. What does the “065” code represent in the model number?
The “065” option identifies the cable length configuration, which represents a 6.5-meter extension cable.

5. What does the “05” suffix indicate?
The “05” suffix indicates the multiple approval configuration for the cable assembly.

6. Can this extension cable support vibration monitoring applications?
Yes, the cable is designed to support proximity-based vibration and shaft position monitoring systems.

7. How does the cable design improve measurement reliability?
The controlled electrical properties help minimize signal variation and maintain accurate data transmission between connected components.

8. Is this cable suitable for continuous machinery monitoring?
Yes, it is intended for continuous industrial monitoring applications where stable signal transmission is required.

9. Which components are normally connected through this extension cable?
The cable is typically installed between a compatible 3300 XL NSv proximity probe and a matching Proximitor sensor.

10. What installation considerations are important for this cable?
Proper system compatibility, cable routing, connector protection, and minimum bend radius requirements should be considered during installation.
