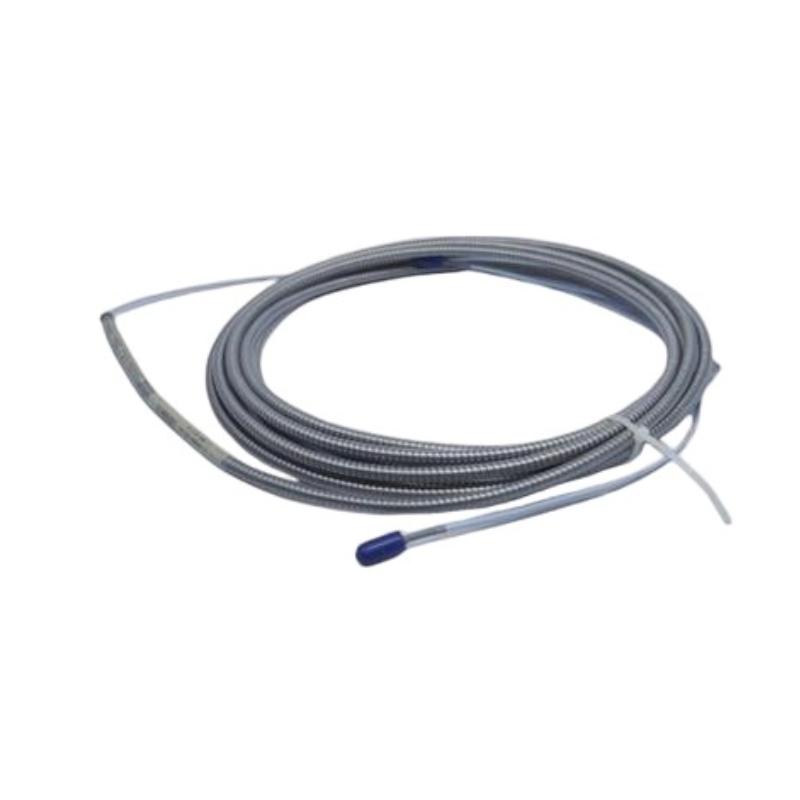

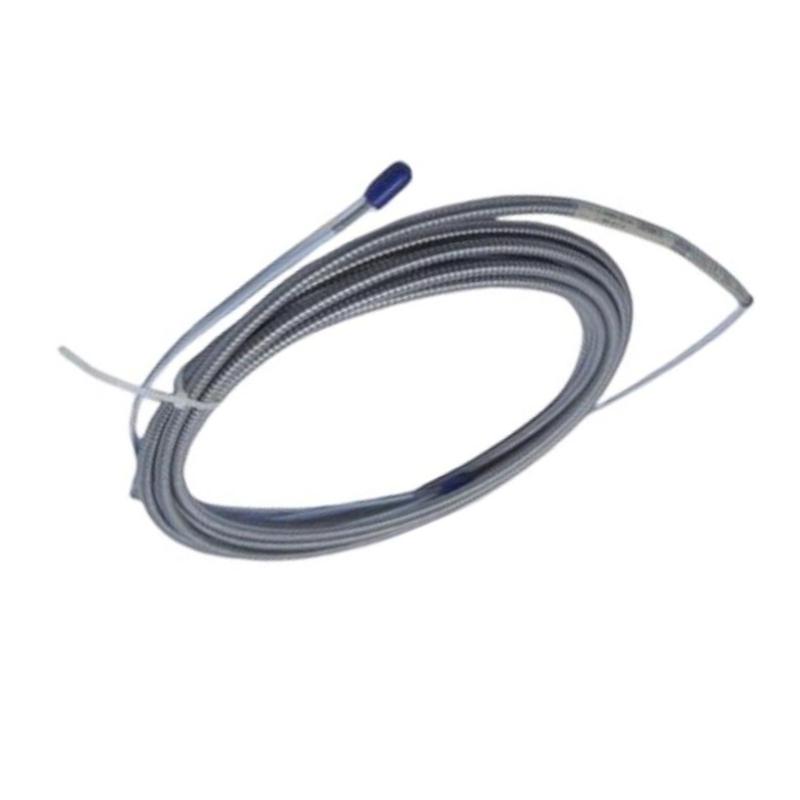

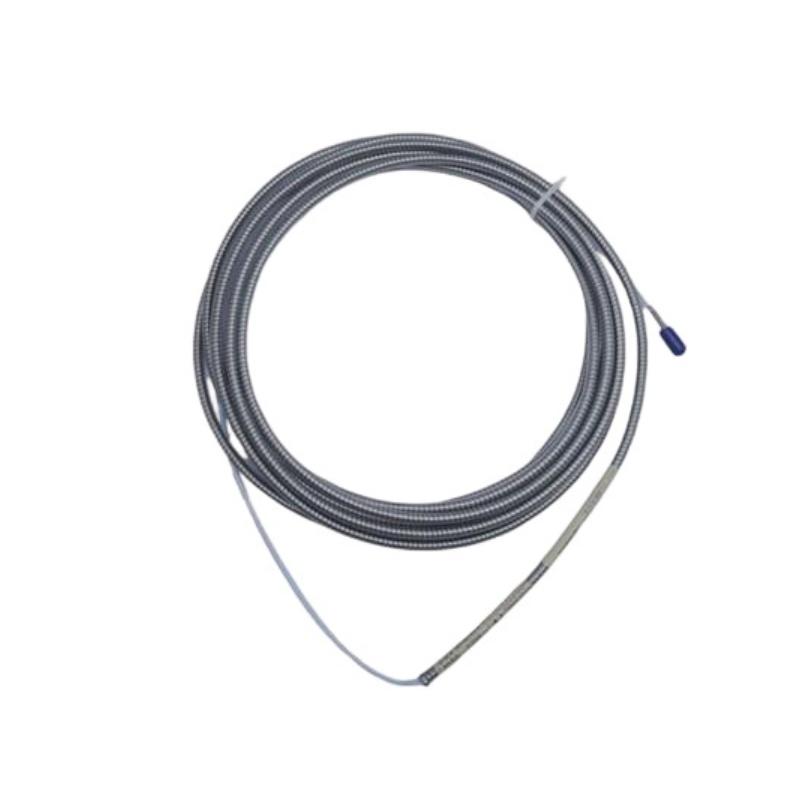

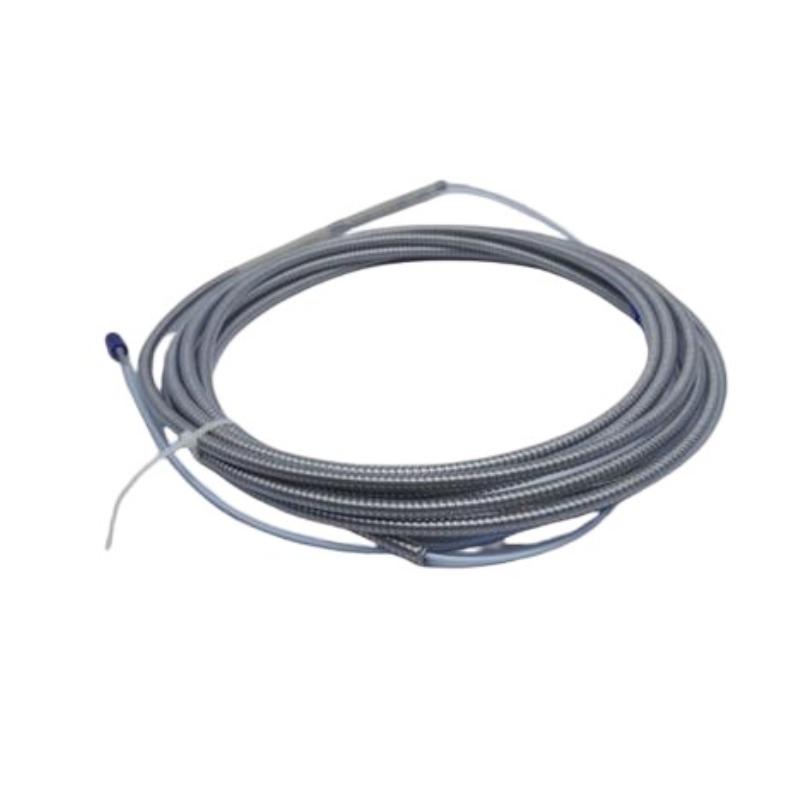

Bently Nevada 330930-065-01-00 Extension Cable Module

Applications

• Rotating Machinery Condition Monitoring:
The Bently Nevada 330930-065-01-00 Extension Cable Module is designed for 3300 XL NSv Proximity Transducer Systems, providing dependable signal transmission for vibration, radial position, and axial position monitoring in critical rotating equipment.

• Industrial Compressor Protection:
This extension cable is widely applied in process compressors, refrigeration compressors, and other machinery where compact installation requirements and accurate proximity measurements are essential.

• Power Generation Equipment Monitoring:
The module supports turbine monitoring systems by maintaining stable communication between proximity probes and Proximitor sensors for continuous equipment protection.

• Oil and Gas Production Facilities:
Designed for demanding industrial environments, the cable helps ensure reliable machinery condition monitoring in applications requiring long-term operational stability.

Key Advantages

• Enhanced Mechanical Protection:
The extension cable features stainless steel armor with an FEP jacket, providing improved resistance against mechanical stress, vibration, and harsh operating conditions.

• Reliable 3300 XL NSv Compatibility:
Designed for Bently Nevada 3300 XL NSv proximity monitoring systems, the module ensures dependable connection between probes and Proximitor sensors.

• High-Integrity Signal Transmission:
The 75 Ω coaxial cable design helps maintain stable electrical performance and accurate proximity measurement signals.

• Flexible Installation Range:
The 6.5-meter cable length provides additional installation flexibility for machinery layouts with extended distances between sensing components and monitoring electronics.

• Suitable for Demanding Industrial Environments:
The durable construction supports applications exposed to temperature variations, vibration, and industrial operating conditions.

Technical FAQs

1. What system is the Bently Nevada 330930-065-01-00 Extension Cable Module designed for?
The 330930-065-01-00 is designed for the Bently Nevada 3300 XL NSv Proximity Transducer System and provides connection between compatible proximity probes and Proximitor sensors.

2. What is the primary function of this extension cable?
The extension cable provides a stable signal path between the proximity probe and monitoring electronics to support accurate machinery condition measurements.

3. What does the “065” option represent in the model number?
The “065” option indicates the cable length configuration, which provides a 6.5-meter extension cable assembly.

4. What does the “01” option indicate for this cable model?
The “01” option identifies the cable configuration with stainless steel armor and FEP jacket protection.

5. What type of cable construction is used in the 330930-065-01-00?
The cable uses a 75 Ω coaxial design with FEP insulation to maintain consistent electrical characteristics.

6. Can this cable be used for vibration and position monitoring applications?
Yes, the cable supports proximity-based vibration, radial position, axial position, and phase reference monitoring applications.

7. How does the armored construction improve reliability?
The stainless steel armor provides additional mechanical protection against installation stress, vibration exposure, and physical damage.

8. Is the 330930-065-01-00 suitable for continuous monitoring systems?
Yes, it is designed for continuous machinery protection systems requiring stable and reliable signal transmission.

9. Which sensors are normally connected with this extension cable?
The cable is typically used between a compatible 3300 XL NSv proximity probe and a matching Proximitor sensor.

10. What installation factors should be considered when using this cable?
Engineers should consider system compatibility, connector protection, cable routing, and proper installation practices to maintain measurement performance.
