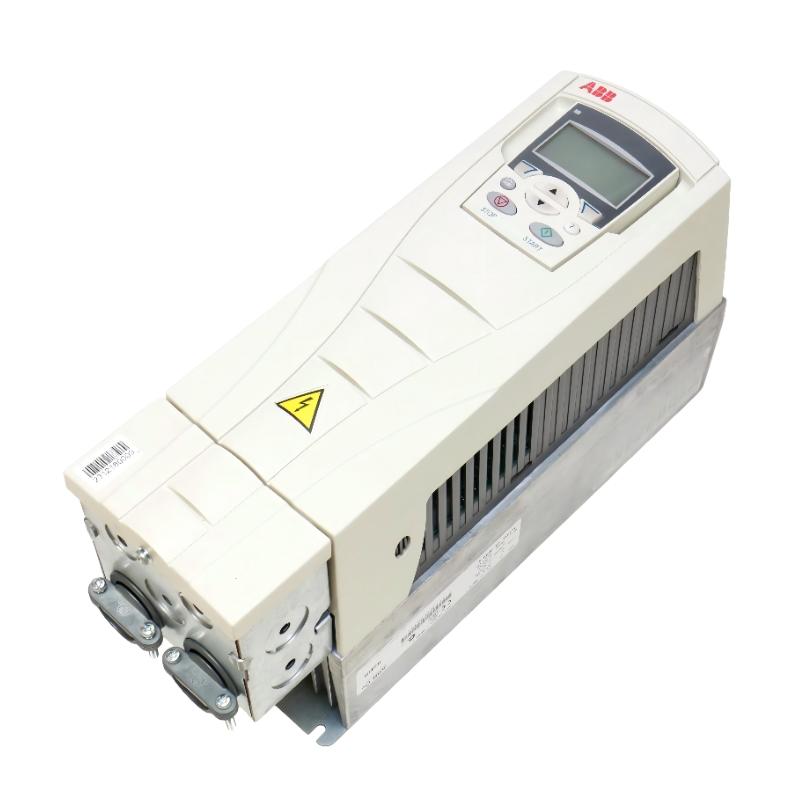

ABB ACS550-01-06A9-4 3AUA0000002415-D Frequency Converter
ABB ACS550-01-06A9-4 3AUA0000002415-D Frequency Converter
0.0
Points
Brand:ABB PLC Item No.:ACS550-01-06A9-4 Product Origin:Sweden (SE) Product Dimensions:465 × 225 × 365 mm Product Weight:6.1 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
Introduction to Reliable ABB ACS550 Motor Drive Solutions
The ABB ACS550-01-06A9-4 3AUA0000002415-D Frequency Converter is an industrial variable speed drive designed for efficient AC motor management. It provides reliable speed adjustment, smooth motor operation, and flexible control capability for various industrial applications.
The ACS550 series is widely used in systems requiring dependable motor control, including pumps, fans, conveyors, and process equipment. Its compact design allows convenient installation while maintaining strong operational performance.
With reliable construction, efficient control functions, and flexible application capability, this frequency converter helps improve equipment efficiency, optimize production processes, and support long-term industrial operation.
Technical Specifications
Parameter
Specification
Manufacturer
ABB
Model Number
ACS550-01-06A9-4
Product ID
3AUA0000002415-D
Product Type
Frequency Converter
Series
ACS550 Series
Rated Voltage
380–480 V
Rated Current
6.9 A
Rated Power
3 kW
Frequency
50/60 Hz
Protection Rating
IP21
Mounting Type
Wall Mounting
Dimensions
465 × 225 × 365 mm
Weight
6.1 kg
Application
Industrial AC Motor Speed Control
Recommended Related Models for System Integration
Model
Description
ABB ACS550-01-05A4-4
General Purpose Frequency Converter
ABB ACS550-01-06A9-4
General Purpose Frequency Converter
ABB ACS550-01-08A8-4
General Purpose Frequency Converter
ABB ACS580 Series
Advanced Industrial Drive Series
ABB ACS880 Series
High Performance Industrial Drive Platform
Popular Related Models for Industrial Motor Control
Model
Product Description
ABB ACS550
General Industrial Frequency Converter
ABB ACS580
Advanced Variable Speed Drive
ABB ACS880
High Performance Industrial Drive System
ABB ACS355
Compact Machinery Drive
ABB ACH550
HVAC Motor Control Drive
Applications for Industrial Motor Control and Energy Optimization
The ABB ACS550-01-06A9-4 3AUA0000002415-D Frequency Converter is designed for efficient control of AC motors in industrial automation and process applications. This variable frequency drive provides accurate speed regulation, smooth acceleration and deceleration, and reliable motor operation for systems requiring stable performance and energy-efficient control.
As part of the ABB ACS550 series, this frequency converter is suitable for general-purpose motor applications where flexible speed adjustment, dependable operation, and convenient system integration are required. It is widely used in industrial environments where precise motor control and long-term reliability are important.
Industry
Application Examples
Manufacturing
Conveyor systems, production machinery, and automated equipment
Water Treatment
Pumps, circulation systems, and flow control applications
HVAC
Fans, ventilation systems, and air handling equipment
Industrial Facilities
General AC motor speed regulation
Process Industries
Variable speed drive applications
The frequency converter helps improve system efficiency by adjusting motor speed according to actual operating requirements, reducing unnecessary energy consumption and mechanical stress.
Advantages of ABB ACS550 Frequency Converter Technology
The ABB ACS550-01-06A9-4 combines advanced motor control functions with a compact and reliable industrial design. It provides stable performance, flexible configuration, and efficient operation for a wide range of motor-driven applications.
Advantage
Description
Compact Design
Suitable for installations with limited space requirements
Efficient Motor Control
Provides precise speed and torque adjustment
Energy Saving Operation
Reduces power consumption through variable speed control
Reliable Protection
Supports safe operation of motor and drive systems
Flexible Integration
Suitable for different industrial automation applications
Stable Performance
Designed for continuous industrial operation
This frequency converter provides an effective solution for optimizing motor performance and maintaining reliable equipment operation.
1. What is the main function of the ABB ACS550-01-06A9-4?
It controls AC motor speed and torque by adjusting output frequency and voltage.
2. What is the rated current of this frequency converter?
The rated output current is 6.9 A.
3. What motor power is suitable for this model?
It is suitable for approximately 3 kW motor applications.
4. What voltage range does this frequency converter support?
It supports 380–480 V three-phase industrial power applications.
5. What types of motors can be controlled by this drive?
It is mainly used with three-phase AC induction motors and compatible industrial motors.
6. What are the advantages of variable frequency control?
It provides adjustable motor speed, improves process control, reduces energy consumption, and decreases mechanical wear.
7. Where is the ABB ACS550 series commonly used?
It is widely applied in pumps, fans, conveyors, HVAC systems, and industrial machinery.
8. What installation conditions should be considered?
Power supply, motor specifications, ventilation, mounting position, and control connections should be checked before installation.
9. How does this converter improve motor operation?
It allows motors to run at optimized speeds according to actual load conditions.
10. What should be confirmed before replacing this frequency converter?
The motor power rating, voltage requirements, current capacity, dimensions, and control compatibility should be verified.
