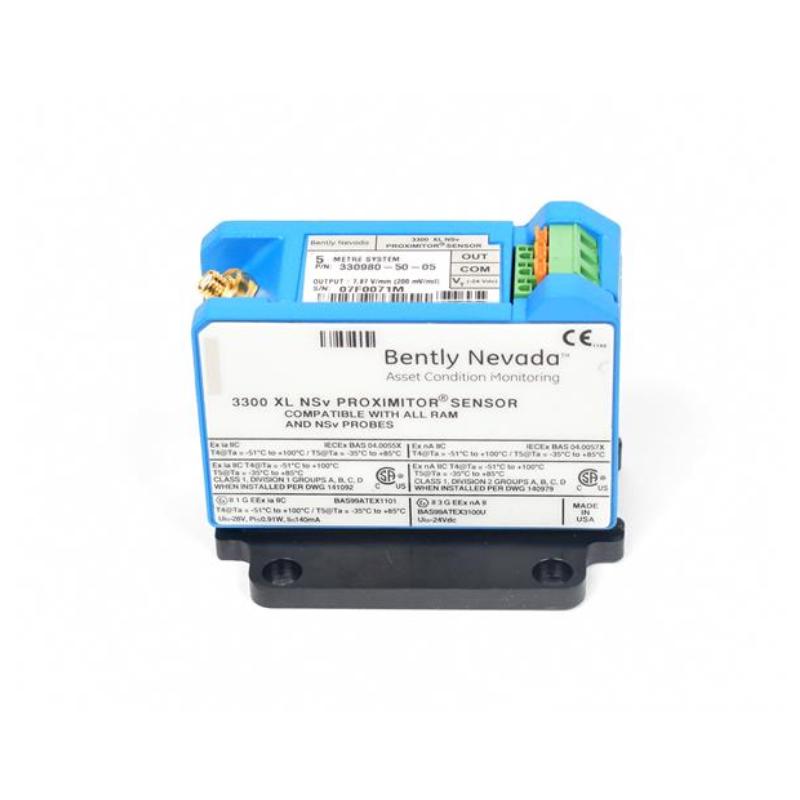

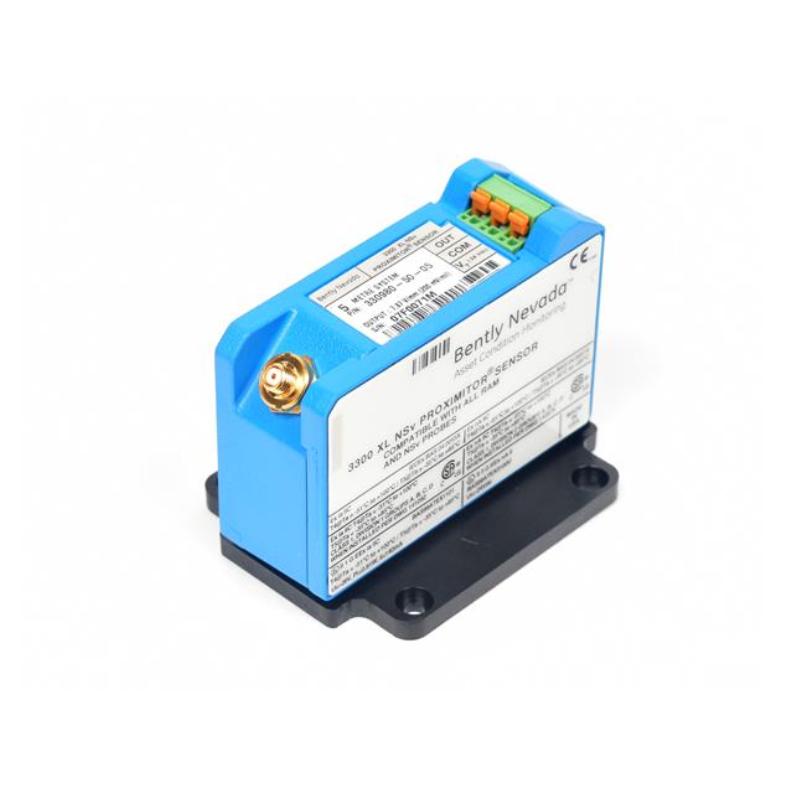

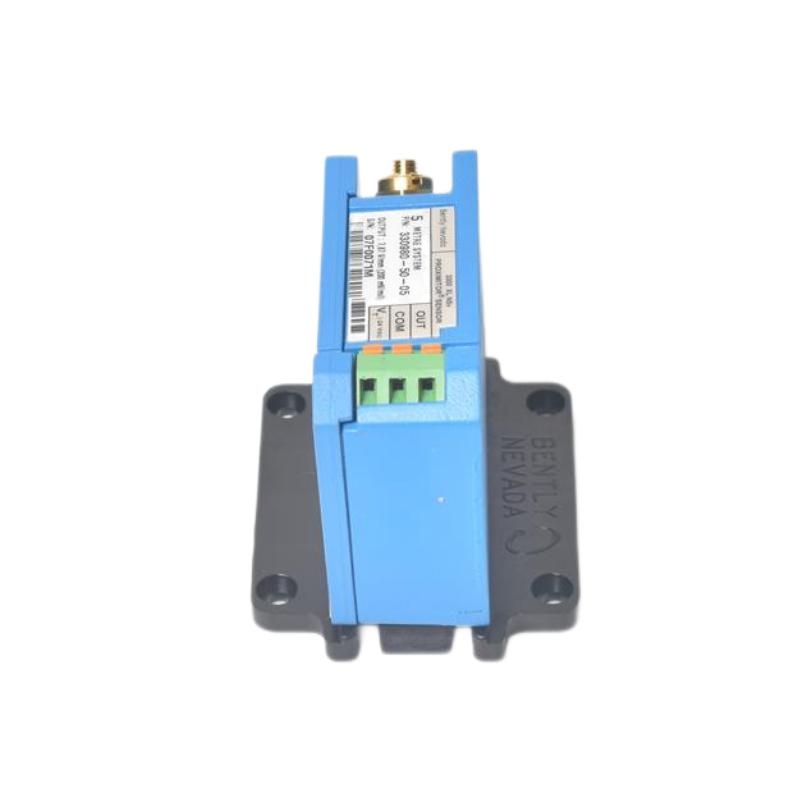

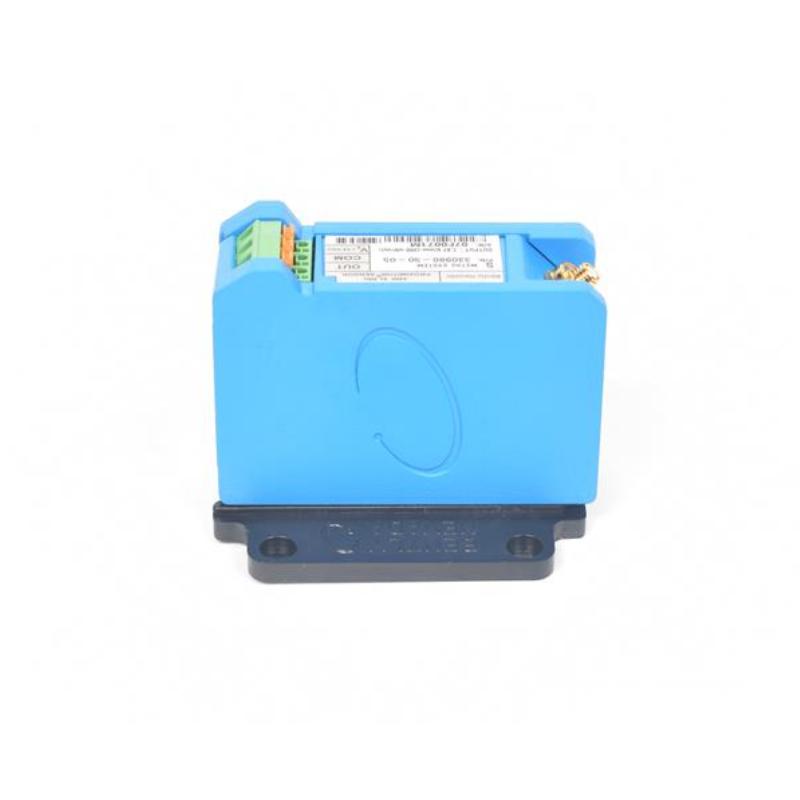

Bently Nevada 330980-060-00-05 Proximitor Sensor Module

Applications

• Compact Rotating Equipment Monitoring:
The Bently Nevada 330980-060-00-05 Proximitor Sensor Module is designed for 3300 XL NSv Proximity Transducer Systems, providing accurate vibration and shaft position measurement for machines with limited installation space.

• Compressor Condition Monitoring:
This module is widely applied in centrifugal air compressors, refrigeration compressors, and process gas compressors where reliable proximity measurement is required for machinery protection.

• Industrial Turbomachinery Protection:
The sensor supports continuous monitoring applications in turbines and other critical rotating equipment by delivering stable displacement measurement signals.

• Predictive Maintenance Systems:
The module helps maintenance teams analyze equipment operating conditions through dependable proximity signal processing and improved machinery diagnostics.

Key Advantages

• High-Precision Proximity Measurement:
The module provides stable eddy current measurement performance for accurate shaft vibration and position monitoring in demanding industrial applications.

• Designed for 3300 XL NSv Systems:
The Proximitor Sensor Module is optimized for compatibility with 3300 XL NSv probes and extension cables, ensuring reliable system integration.

• Compact Installation Design:
The slim sensor housing allows flexible installation in applications where traditional monitoring components may require more space.

• Strong Environmental Performance:
The module features enhanced resistance to electrical interference and industrial operating conditions, supporting reliable long-term operation.

• Improved Machinery Protection Capability:
By providing accurate proximity signal conversion, the sensor helps monitoring systems detect abnormal equipment conditions and reduce unexpected downtime.

Technical FAQs

1. What system is the Bently Nevada 330980-060-00-05 Proximitor Sensor Module used with?
The 330980-060-00-05 is designed for the Bently Nevada 3300 XL NSv Proximity Transducer System and works with compatible NSv proximity probes and extension cables.

2. What is the primary function of this Proximitor Sensor Module?
The module converts proximity probe signals into output signals used by monitoring systems for vibration and shaft position analysis.

3. What type of measurement technology does this module use?
The module uses eddy current sensing technology to provide non-contact measurement of shaft displacement.

4. What type of probes are compatible with the 330980-060-00-05?
The module is compatible with Bently Nevada 3300 NSv proximity probes and matching extension cable assemblies.

5. How does the module improve machinery monitoring accuracy?
The module provides stable signal conditioning and accurate displacement measurement to support reliable equipment diagnostics.

6. What operating voltage is required for this Proximitor Sensor Module?
The module typically operates with a -17.5 Vdc to -26 Vdc power supply depending on system configuration requirements.

7. Can the 330980-060-00-05 be used in hazardous area applications?
Yes, the 3300 XL NSv system supports hazardous area installation when configured according to applicable approval requirements.

8. How does the module handle electrical interference?
The sensor incorporates improved RFI and EMI immunity to maintain reliable operation in industrial environments.

9. What type of output signal does this module provide?
The module provides a proportional voltage output representing the measured distance between the probe tip and the target.

10. What applications benefit most from the 330980-060-00-05?
Applications requiring compact, accurate, and continuous shaft vibration or position monitoring benefit most from this Proximitor Sensor Module.
