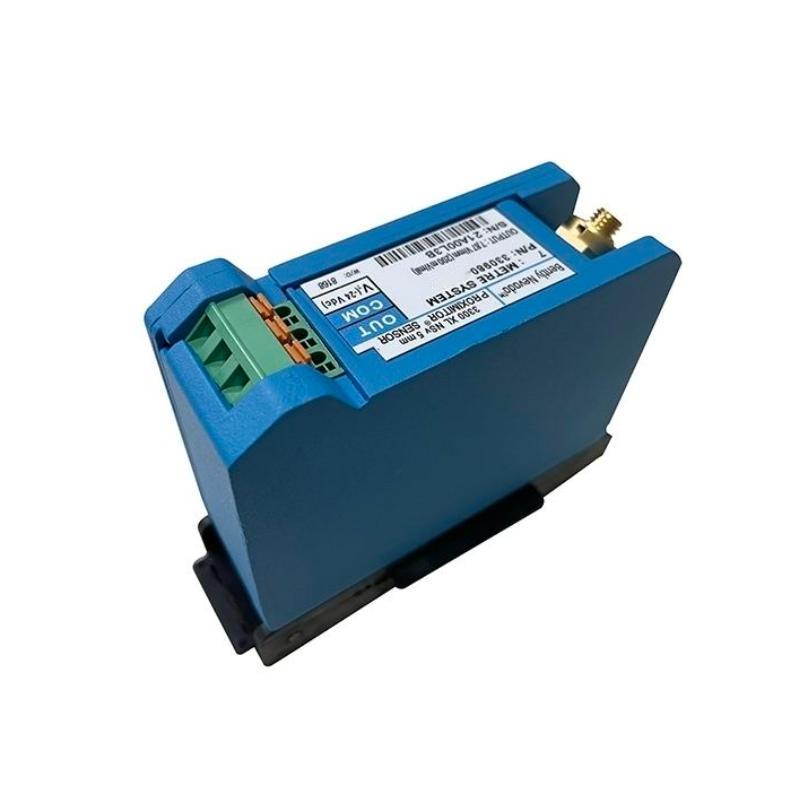

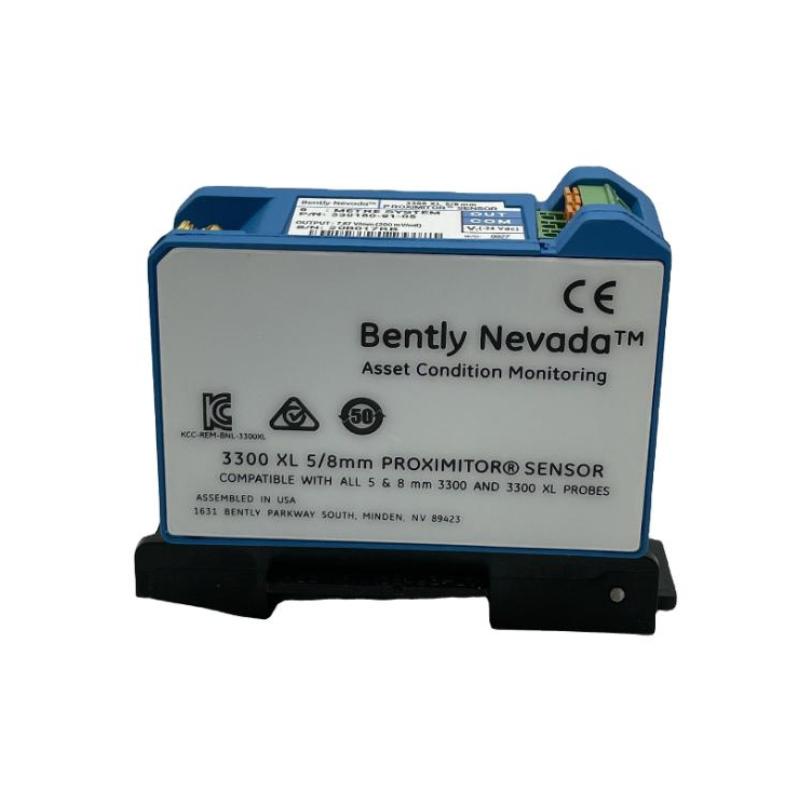

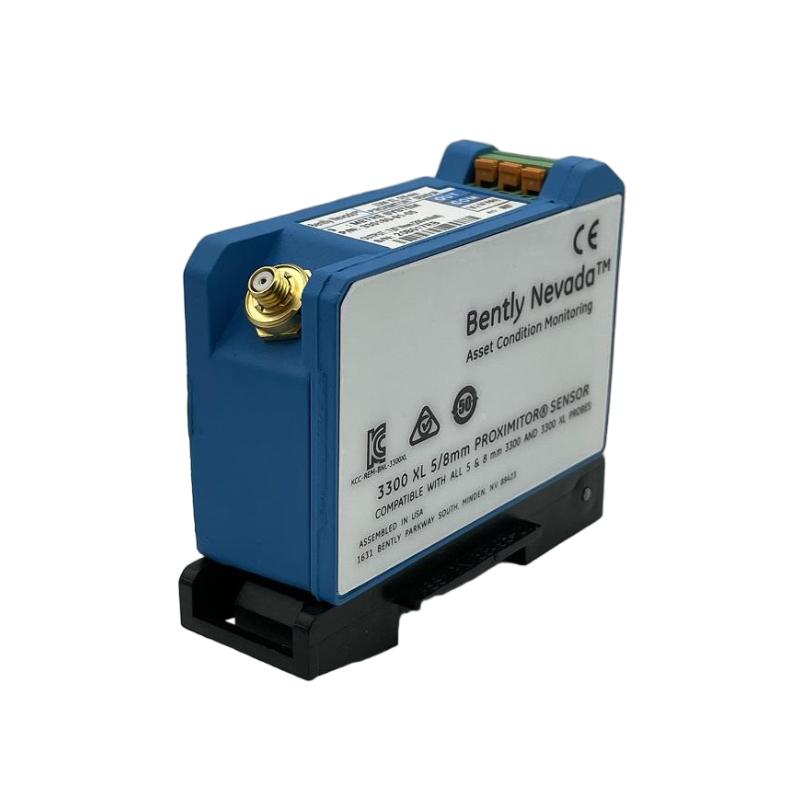

Bently Nevada 330980-70-05 Proximitor Sensor Module

Applications

• Rotating Machinery Vibration Monitoring:
The Bently Nevada 330980-70-05 Proximitor Sensor Module is designed for 3300 XL NSv Proximity Transducer Systems, providing accurate shaft displacement and vibration measurement for critical rotating equipment.

• Compressor and Turbomachinery Protection:
This module is widely used in centrifugal compressors, refrigeration compressors, process gas compressors, and turbines where precise non-contact measurement is required for continuous equipment monitoring.

• Industrial Asset Condition Monitoring:
The sensor supports predictive maintenance programs by delivering reliable proximity signals for analyzing machine health and detecting abnormal operating conditions.

• Power Generation and Process Industries:
The module provides dependable performance in power plants, petrochemical facilities, and industrial production systems where machinery protection is essential.

Key Advantages

• High-Accuracy Eddy Current Measurement:
The Proximitor Sensor Module provides precise non-contact shaft displacement measurement to support reliable vibration analysis and machinery protection.

• 3300 XL NSv System Compatibility:
Designed for integration with 3300 XL NSv probes and extension cables, ensuring stable system performance and simplified replacement compatibility.

• Optimized for Limited Installation Space:
The NSv design offers a compact solution for machines with restricted mounting areas while maintaining dependable monitoring capability.

• Stable Signal Conditioning Performance:
The module maintains consistent electrical characteristics to provide accurate output signals for industrial monitoring systems.

• Multiple Approval Configuration:
The -05 option supports multiple agency approval requirements, making the module suitable for a wider range of industrial installations.

Technical FAQs

1. What system is the Bently Nevada 330980-70-05 Proximitor Sensor Module designed for?
The 330980-70-05 is designed for the Bently Nevada 3300 XL NSv Proximity Transducer System and operates with compatible NSv probes and extension cables.

2. What is the main function of the 330980-70-05 module?
The module converts proximity probe measurements into proportional electrical signals used for shaft vibration and displacement monitoring.

3. What sensing technology does this module use?
The module uses eddy current proximity sensing technology for non-contact measurement of rotating shaft movement.

4. What does the “70” code represent in the model number?
The “70” option indicates a 7.0-meter total system length configuration with panel mounting capability.

5. What does the “05” suffix indicate?
The “05” suffix identifies the multiple agency approval option for the sensor configuration.

6. Which probes are compatible with the 330980-70-05?
The module is designed to work with compatible Bently Nevada 3300 XL NSv proximity probes and extension cable assemblies.

7. What type of output signal does the sensor provide?
The module provides a voltage output proportional to the measured distance between the probe tip and the monitored shaft surface.

8. Can the 330980-70-05 be used for continuous monitoring applications?
Yes, it is designed for continuous machinery protection systems requiring stable and reliable proximity measurement.

9. How does this module support predictive maintenance strategies?
The module provides accurate shaft position and vibration data, helping maintenance teams identify developing mechanical issues before failures occur.

10. What installation factors should be considered for this module?
Proper probe compatibility, cable connection, target material calibration, and monitoring system configuration should be considered during installation.
