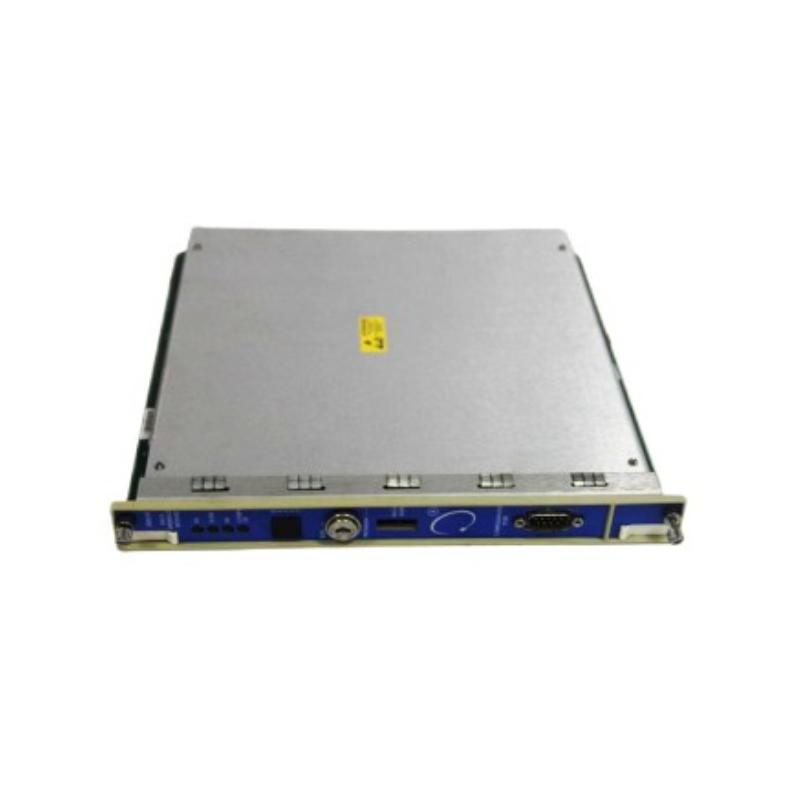

Bently Nevada 3500/15-02-02-00 Power Supply Module

Applications

• 3500 Machinery Protection System Power Management:
The Bently Nevada 3500/15-02-02-00 Power Supply Module provides reliable power conversion and distribution for 3500 Series monitoring racks, supporting continuous operation of vibration, position, and condition monitoring modules.

• Critical Rotating Equipment Protection:
This power supply module is widely used in turbine, compressor, generator, and pump protection systems where stable electrical power is essential for uninterrupted machinery monitoring.

• Power Generation and Industrial Facilities:
The module supports machinery protection installations in power plants, petrochemical facilities, and process industries requiring dependable rack-level power solutions.

• Redundant Power System Applications:
Designed for dual power supply configurations, the module helps improve system availability by supporting backup power operation within compatible 3500 racks.

Key Advantages

• High-Voltage AC Power Configuration:
The 3500/15-02-02-00 is configured with high-voltage AC power input capability, supporting industrial installations requiring 175–264 Vac rms input operation.

• Reliable Rack-Level Power Supply:
The module converts incoming power into regulated output power required by Bently Nevada 3500 monitoring modules, helping maintain stable system performance.

• Redundant Operation Capability:
The 3500 rack architecture allows two power supplies to be installed, with one supply operating as primary power and the second providing backup support.

• Half-Height Modular Design:
The compact half-height module design allows efficient installation in designated 3500 rack power supply positions.

• Continuous Industrial Reliability:
Designed for machinery protection environments, the module provides dependable power performance for long-term monitoring applications.

Technical FAQs

1. What is the main function of the Bently Nevada 3500/15-02-02-00 Power Supply Module?
The module converts high-voltage AC input power into regulated power required for operating Bently Nevada 3500 rack modules.

2. Which system is compatible with the 3500/15-02-02-00 module?
The module is designed specifically for Bently Nevada 3500 Machinery Protection System racks.

3. What input voltage does the 3500/15-02-02-00 support?
The module supports high-voltage AC input operation within the 175–264 Vac rms range.

4. Can this power supply module be used in redundant configurations?
Yes, compatible 3500 racks can use dual power supply modules to provide backup power capability and improve system availability.

5. Does the 3500/15-02-02-00 perform vibration signal processing?
No, the module only provides electrical power and does not process vibration, displacement, or condition monitoring signals.

6. Which modules receive power from this supply?
The module supplies power to compatible Bently Nevada 3500 monitoring, communication, and interface modules installed in the rack.

7. How does the module improve machinery protection reliability?
Stable power delivery allows monitoring modules to operate consistently, supporting continuous equipment condition monitoring.

8. Can the power supply status be monitored?
Yes, the module includes a front-panel Supply OK indicator for confirming proper operating status.

9. What installation considerations are important for this module?
Engineers should verify rack compatibility, input voltage requirements, grounding practices, and power redundancy configuration before installation.

10. Is the 3500/15-02-02-00 interchangeable with other 3500/15 power supply models?
Replacement suitability depends on the required input voltage configuration, rack design, and approved system configuration.
