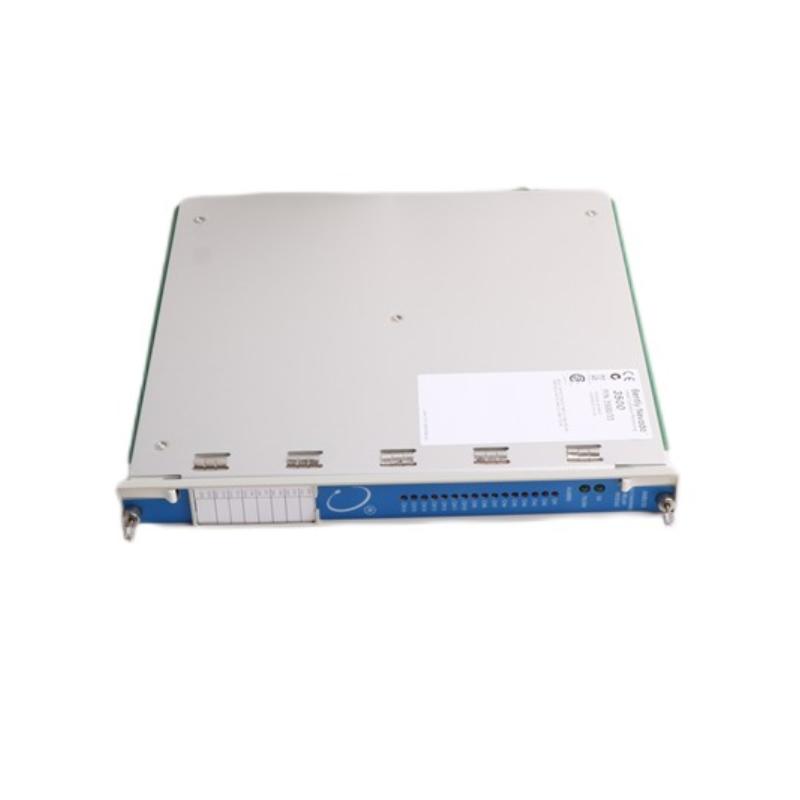

Bently Nevada 3500/15-02-02-01 Power Supply Module

Applications

• 3500 Machinery Protection System Power Management:
The Bently Nevada 3500/15-02-02-01 Power Supply Module provides stable power conversion and distribution for 3500 Series monitoring racks, supporting continuous operation of vibration monitoring, protection, and communication modules.

• Critical Rotating Equipment Monitoring:
This power supply module is widely used in turbine, compressor, generator, and pump protection systems where reliable electrical power is essential for continuous machinery condition monitoring.

• Power Generation and Process Industry Installations:
The module supports industrial facilities including power plants, petrochemical plants, and manufacturing sites requiring dependable rack-level power solutions for critical assets.

• Redundant Machinery Protection Configurations:
Designed for dual power supply rack arrangements, the module helps improve system availability by providing backup power capability within compatible 3500 system architectures.

Key Advantages

• High Voltage AC Power Configuration:
The 3500/15-02-02-01 is configured for high voltage AC input applications, supporting industrial power systems requiring approximately 175–264 Vac rms input operation.

• Integrated Safety Approval Option:
The -01 suffix provides CSA/NRTL/C Class 1 Division 2 approval configuration, supporting installations where additional hazardous environment compliance is required.

• Reliable Rack Power Conversion:
The module converts incoming AC power into regulated power suitable for Bently Nevada 3500 monitoring modules, helping maintain stable system performance.

• Redundant Power Support Capability:
The 3500 rack can operate with one or two power supplies, allowing redundant configurations for applications where uninterrupted monitoring availability is required.

• Industrial-Grade Long-Term Operation:
Designed for continuous machinery protection environments, the module provides dependable power delivery for demanding industrial applications.

Technical FAQs

1. What is the main function of the Bently Nevada 3500/15-02-02-01 Power Supply Module?
The module converts high voltage AC input power into regulated power required by Bently Nevada 3500 monitoring system modules.

2. Which system is compatible with the 3500/15-02-02-01?
The module is designed specifically for Bently Nevada 3500 Machinery Protection System racks.

3. What input voltage does this power supply support?
The module supports high voltage AC input operation within the 175–264 Vac rms range.

4. What does the “01” suffix indicate in the model number?
The “01” suffix indicates the CSA/NRTL/C Class 1 Division 2 approval option for the power supply configuration.

5. Can this power supply module be used in redundant rack configurations?
Yes, compatible 3500 racks can use two power supply modules to provide backup power capability and improve system availability.

6. Does the 3500/15-02-02-01 process vibration or sensor signals?
No, the module only provides electrical power conversion and does not perform measurement or signal processing functions.

7. Which modules receive power from this supply?
The module supplies power to compatible Bently Nevada 3500 monitoring, communication, and interface modules installed in the rack.

8. How does the module improve machinery protection reliability?
Stable power delivery helps ensure monitoring modules operate consistently, supporting continuous equipment protection and condition analysis.

9. What installation factors should be considered before replacement?
Engineers should verify input voltage type, rack compatibility, approval requirements, and power redundancy configuration before installation.

10. Can the 3500/15-02-02-01 replace other 3500/15 power supply models?
Replacement depends on the required voltage configuration, rack design, and approval requirements of the existing 3500 system.
