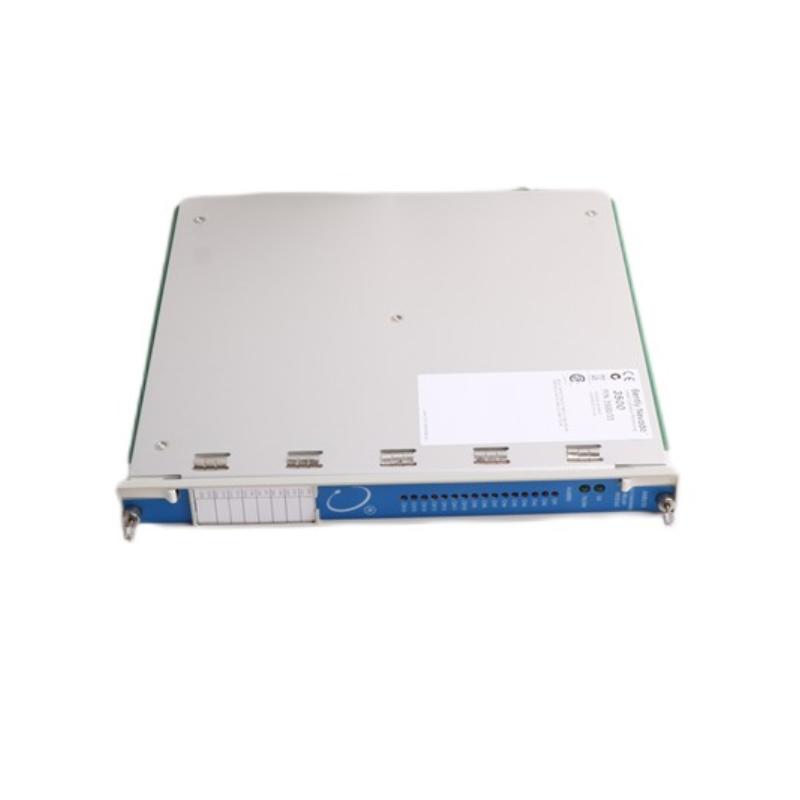

Bently Nevada 3500/15-02-02-02 Power Supply Module

Applications

• 3500 Machinery Protection System Power Management:
The Bently Nevada 3500/15-02-02-02 Power Supply Module provides stable power conversion and distribution for Bently Nevada 3500 Series racks, supporting continuous operation of monitoring, communication, and protection modules in critical machinery applications.

• Critical Rotating Equipment Protection:
This power supply module is used in turbine, compressor, generator, and pump monitoring systems where dependable power availability is essential for uninterrupted machinery protection.

• Power Generation and Industrial Facilities:
The module supports installations across power plants, petrochemical facilities, and industrial processing environments requiring reliable rack-level power solutions.

• Redundant Power Supply Configurations:
Designed for dual power supply arrangements, the module helps maintain system availability by supporting backup power operation within compatible 3500 rack architectures.

Key Advantages

• High Voltage AC Dual Supply Configuration:
The 3500/15-02-02-02 features high voltage AC input configuration for both power supply positions, providing a dependable solution for rack installations requiring dual AC power modules.

• ATEX / IECEx / CSA Zone 2 Approval Option:
The -02 suffix provides an approval configuration suitable for Class 1 Zone 2 hazardous area applications, expanding installation flexibility in industrial environments.

• Stable Rack Power Conversion:
The module converts incoming AC power into regulated power required by 3500 monitoring modules, helping maintain consistent system performance.

• Redundant Operation Capability:
When installed with compatible rack configurations, dual power supplies can provide backup operation and improve protection system availability.

• Industrial Reliability Design:
The half-height modular construction provides efficient installation and dependable long-term operation in machinery protection environments.

Technical FAQs

1. What is the main function of the Bently Nevada 3500/15-02-02-02 Power Supply Module?
The module converts high voltage AC input power into regulated power required for Bently Nevada 3500 Series monitoring system modules.

2. Which system is compatible with the 3500/15-02-02-02?
The module is designed specifically for Bently Nevada 3500 Machinery Protection System racks.

3. What input voltage does this power supply module support?
The module supports high voltage AC input operation within the 175–264 Vac rms range.

4. What does the “02” suffix indicate in the model number?
The “02” suffix indicates the ATEX, IECEx, and CSA Class 1 Zone 2 approval configuration.

5. Can the 3500/15-02-02-02 operate in redundant power configurations?
Yes, compatible 3500 racks can use dual power supply modules to improve system availability and provide backup power capability.

6. Does this module process vibration or condition monitoring signals?
No, the module only provides electrical power conversion and does not perform vibration measurement or signal processing.

7. Which modules can receive power from this supply?
The module supplies power to compatible Bently Nevada 3500 monitoring, communication, and interface modules installed within the rack.

8. How does the power supply improve machinery protection reliability?
Stable power delivery allows monitoring modules to operate continuously and maintain reliable equipment protection functions.

9. What installation requirements should be considered before using this module?
Engineers should verify rack compatibility, input voltage requirements, grounding practices, and hazardous area approval requirements before installation.

10. Is the 3500/15-02-02-02 interchangeable with other 3500/15 models?
Replacement suitability depends on the required power configuration, approval certification, and existing rack system design.
