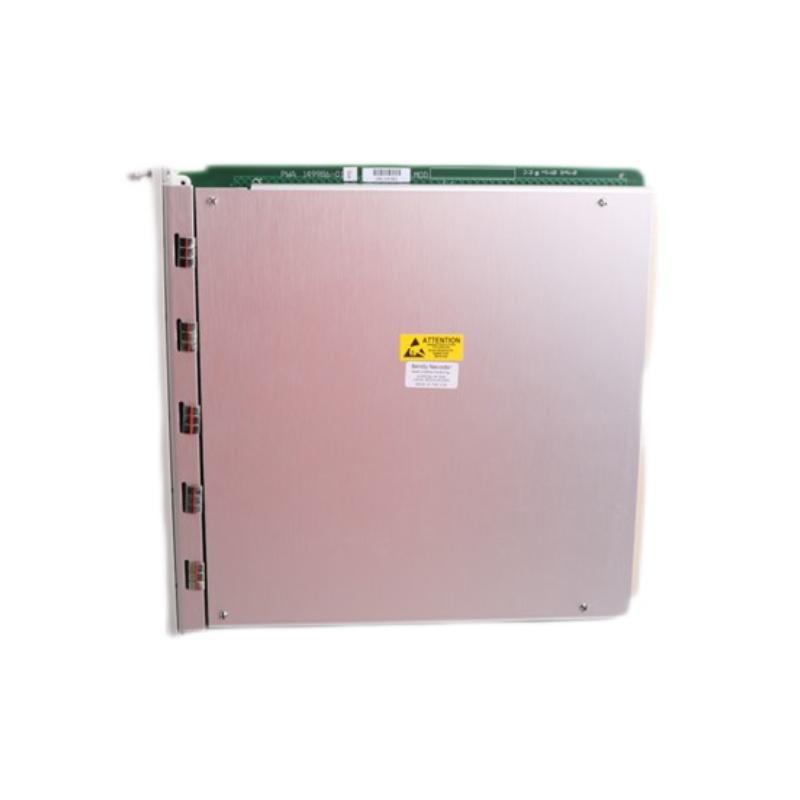

Bently Nevada 3500/15-03-00-00 Power Supply Module

Applications

• 3500 Machinery Protection System Power Supply Management:
The Bently Nevada 3500/15-03-00-00 Power Supply Module provides reliable high-voltage DC power conversion for 3500 Series machinery protection racks, ensuring stable operation of monitoring and protection modules in critical industrial applications.

• Industrial Rotating Equipment Protection:
This module is suitable for turbine, compressor, generator, and pump monitoring systems where continuous power availability is required to maintain machinery protection functions.

• Power Generation and Process Industry Systems:
The module supports applications in power plants, petrochemical facilities, and heavy industrial environments where dependable DC power solutions are essential for online condition monitoring.

• Remote and DC-Based Installation Environments:
Designed for facilities using high-voltage DC power sources, the module provides a practical solution for integrating Bently Nevada 3500 monitoring racks into specialized industrial power architectures.

Key Advantages

• High Voltage DC Power Configuration:
The 3500/15-03-00-00 is configured with a legacy high-voltage DC power supply option, supporting input ranges of approximately 88 to 140 Vdc for industrial applications.

• Stable Rack-Level Power Conversion:
The module converts incoming DC power into regulated voltages required by Bently Nevada 3500 monitoring modules, supporting consistent system performance.

• Flexible 3500 System Integration:
Designed for installation in dedicated power supply slots on the left side of 3500 racks, the module integrates seamlessly with existing machinery protection architectures.

• Continuous Monitoring Reliability:
The power supply supports long-term operation of critical monitoring systems by maintaining dependable electrical power for protection modules.

• Redundant Power Capability:
Compatible 3500 racks can use dual power supplies, allowing one supply to operate as primary power while the second provides backup support for improved system availability.

Technical FAQs

1. What is the main function of the Bently Nevada 3500/15-03-00-00 Power Supply Module?
The module converts high-voltage DC input power into regulated power required by Bently Nevada 3500 Series monitoring system modules.

2. Which system is compatible with the 3500/15-03-00-00?
The module is designed for use with Bently Nevada 3500 Machinery Protection System racks.

3. What type of input power does this model support?
The module supports legacy high-voltage DC input operation with an input range of approximately 88 to 140 Vdc.

4. Does the 3500/15-03-00-00 process vibration signals?
No, this module only provides power conversion and does not perform vibration measurement or signal processing.

5. Can this power supply be installed in redundant configurations?
Yes, compatible 3500 racks can accommodate two power supply modules for improved system availability.

6. Which modules receive power from this supply?
The module supplies power to compatible monitoring, communication, and interface modules installed in a Bently Nevada 3500 rack.

7. What does the “03” option indicate in the model number?
The “03” option identifies the legacy high-voltage DC power supply configuration.

8. How does this module support machinery protection reliability?
By providing stable electrical power, the module helps ensure continuous operation of monitoring modules used for equipment protection.

9. What installation factors should be checked before replacement?
Engineers should verify rack compatibility, DC input voltage requirements, power supply configuration, and system redundancy design.

10. Can the 3500/15-03-00-00 replace AC power supply models?
Replacement depends on the available plant power source, rack configuration, and required power supply type.
