Brand:Bently Nevada PLC Item No.:330186-02 Product Origin:USA Product Dimensions:Scale Units: 0-25 mm Product Weight:2.8 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

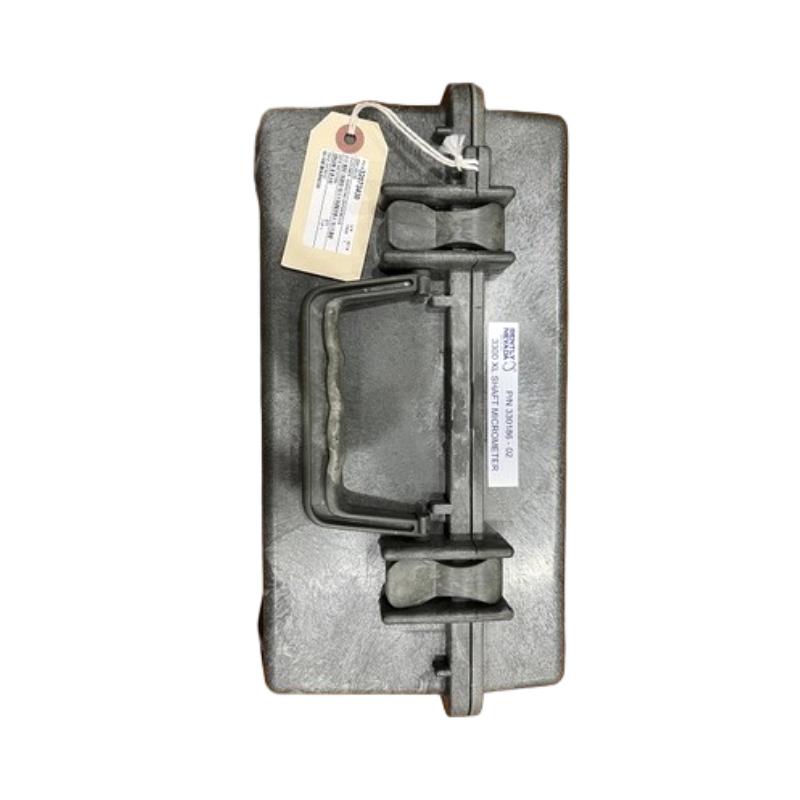

The Bently Nevada 330186-02 3300 XL Shaft Micrometer is a specialized precision accessory developed to support accurate installation checks and verification of proximity measurement systems. It provides engineers with a practical method for simulating shaft movement and confirming sensor performance.
Designed for professional industrial applications, this tool helps improve the accuracy of machinery monitoring setups by allowing controlled mechanical positioning during calibration activities. Its compatibility with Bently Nevada monitoring solutions makes it an important accessory for maintenance teams responsible for critical rotating equipment.
By supporting accurate sensor verification and reliable system commissioning, the 330186-02 helps enhance machinery protection performance and operational confidence.
Technical Specifications
Specification
Details
Product Brand
Bently Nevada
Model Number
330186-02
Product Series
3300 XL
Module Type
Shaft Micrometer
Measurement System
Metric
Measurement Range
0-25 mm
Application
Proximity Sensor Calibration and Verification
Function
Mechanical Position Adjustment
Compatible Equipment
Bently Nevada Proximity Transducer Systems
Usage Environment
Industrial Maintenance and Commissioning
Adjustment Type
Precision Mechanical Movement
Dimensions
Approx. 152 × 246 × 356 mm
Weight
2.80 kg (6.17 lb)
Recommended Related Models
Model
Description
Bently Nevada 330173-04-08-10-02-00
3300 5mm Proximity Probe for shaft vibration monitoring
Bently Nevada 330180-50-00
3300 XL Extension Cable for proximity probe systems
Bently Nevada 3300/03-01-00
3300 Power Supply Module for monitoring rack applications
Bently Nevada 3300/16-12-01-00
Dual Vibration Monitor Module for machinery protection
Popular Related Models
Model
Description
Bently Nevada 3300/15-05-02-00
Dual Channel Proximity Monitor Module
Bently Nevada 3300/20-12-01-01
Dual Thrust Position Monitor Module
Bently Nevada 3300/25-01-01-00
Dual Acceleration Monitor Module
Precision Applications for Sensor Calibration and Machinery Verification

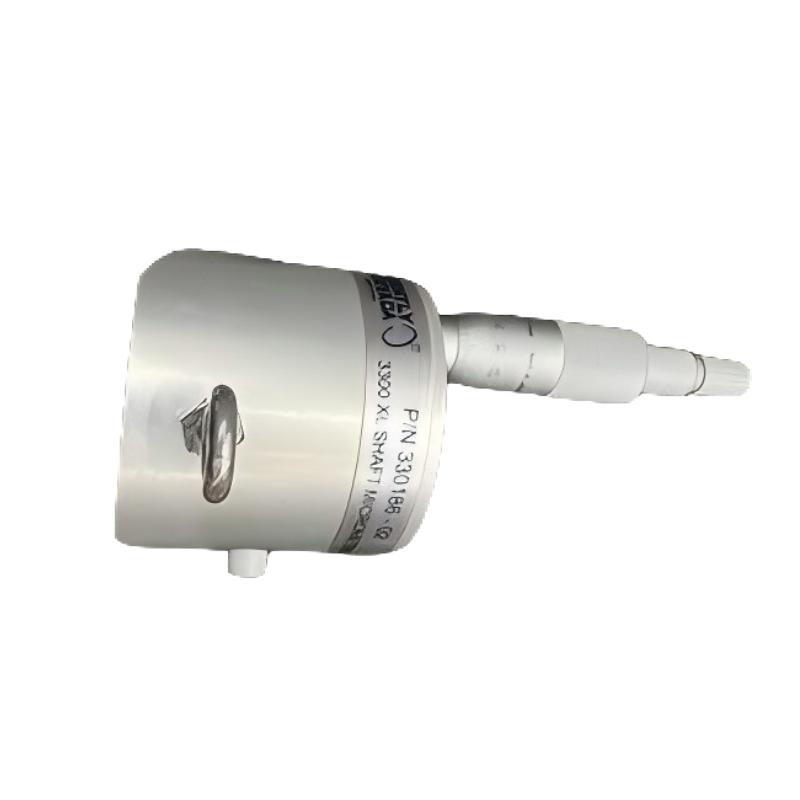

The Bently Nevada 330186-02 3300 XL Shaft Micrometer is a precision mechanical adjustment tool designed for accurate verification and calibration of proximity sensor systems used in rotating machinery monitoring applications.
This shaft micrometer is commonly used during equipment commissioning, maintenance inspections, and troubleshooting procedures where precise shaft position simulation is required. It allows engineers to verify proximity probe response, confirm measurement accuracy, and support reliable operation of machinery protection systems.
With a 0-25 mm metric measurement range, the 330186-02 provides controlled mechanical adjustment for testing and calibration tasks associated with Bently Nevada proximity transducer systems. Its robust construction and accurate positioning capability make it a valuable accessory for power generation, petrochemical, and industrial maintenance environments.
Key Benefits and Performance Advantages
Feature
Description
Precision Mechanical Adjustment
Provides accurate shaft position simulation for sensor verification
0-25 mm Metric Scale
Supports controlled measurement and calibration procedures
3300 XL Series Compatibility
Designed for use with Bently Nevada proximity monitoring solutions
Reliable Position Control
Enables repeatable adjustments during testing operations
Professional Maintenance Tool
Helps improve confidence in sensor installation and system performance
Durable Industrial Design
Suitable for field service, commissioning, and laboratory environments
Technical FAQs
1. What is the primary function of the Bently Nevada 330186-02 Shaft Micrometer?
The shaft micrometer is used to precisely adjust and verify the position response of proximity sensor systems.
2. How does the shaft micrometer support proximity probe testing?
It provides controlled mechanical movement that allows engineers to observe sensor output changes at different positions.
3. What type of sensors can be verified using this tool?
It is designed for checking Bently Nevada proximity transducer systems used in machinery monitoring applications.
4. Why is accurate position adjustment important during sensor calibration?
Precise adjustment ensures that proximity sensors provide accurate and reliable measurement signals.
5. Can this shaft micrometer be used during machinery commissioning?
Yes. It is suitable for commissioning, maintenance, and troubleshooting procedures involving proximity monitoring systems.
6. What measurement range does the 330186-02 provide?
The unit provides a metric adjustment range from 0 to 25 mm.
7. Is the 330186-02 an electronic measurement device?
No. It is a precision mechanical adjustment instrument used together with electronic monitoring equipment.
8. What applications commonly require a shaft micrometer?
Typical applications include vibration monitoring system setup, sensor verification, and rotating equipment maintenance.
9. How does this tool improve machinery monitoring reliability?
It helps confirm proper sensor operation before the monitoring system is placed into service.
10. What industries benefit from using this calibration accessory?
Power generation, oil and gas, petrochemical, and heavy industrial facilities commonly use this type of verification tool.
