Product Overview and Engineering Introduction

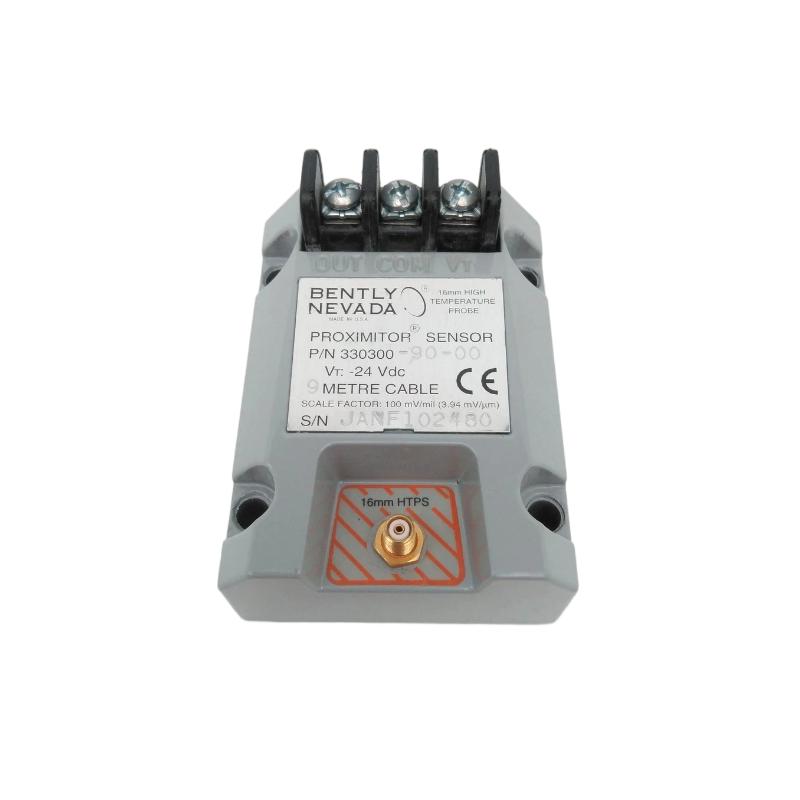

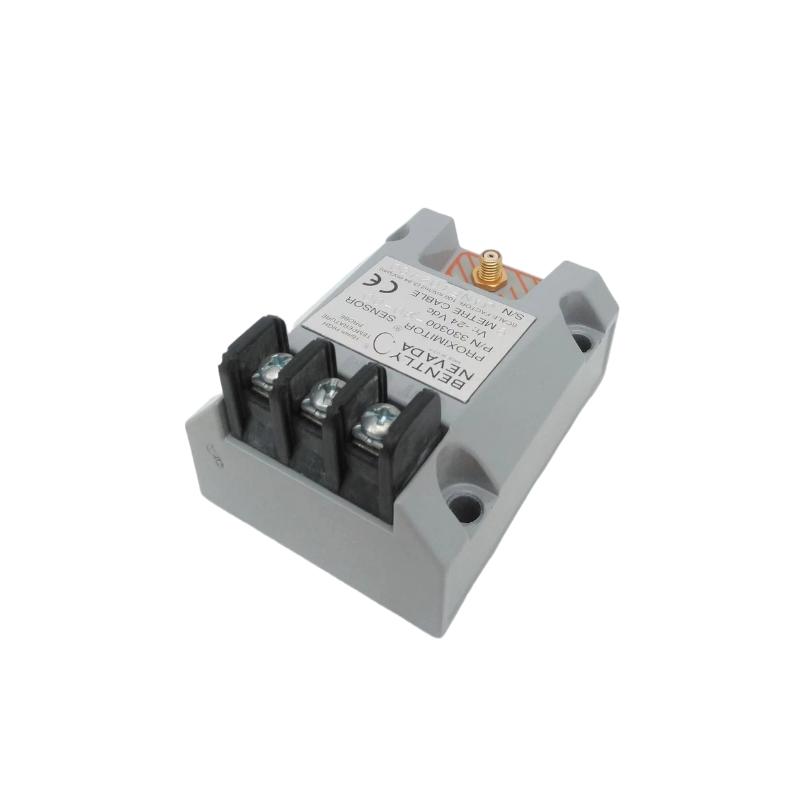

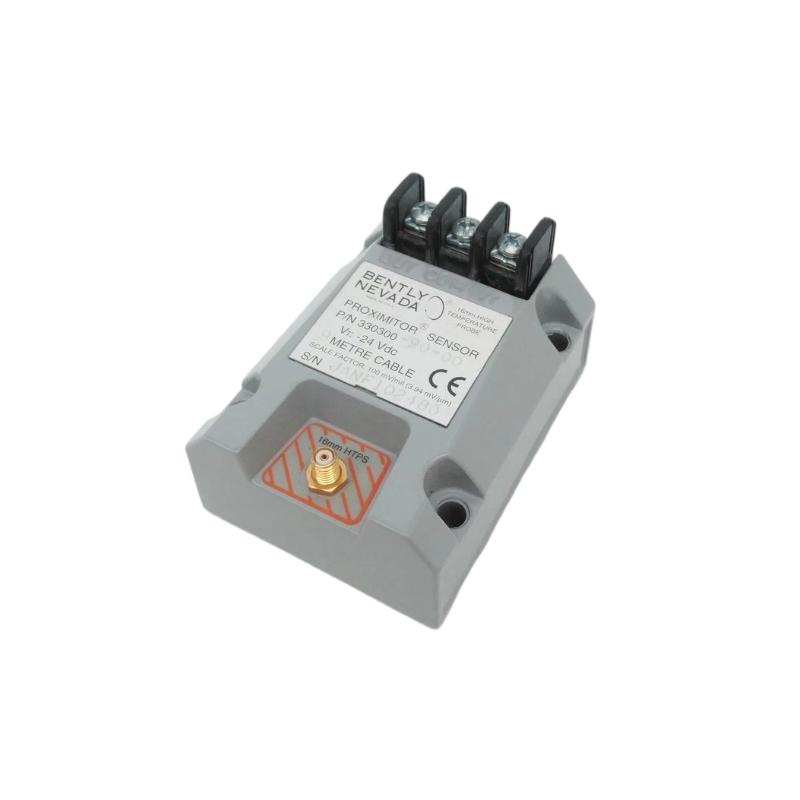

The Bently Nevada 330300-90-00 3300 XL High Temperature Preamplifier Sensor is a specialized signal conditioning component developed for advanced machinery protection applications. It provides reliable interface performance for proximity probe systems installed in challenging industrial environments.

Designed to support high-temperature monitoring applications, this preamplifier sensor helps maintain signal integrity between field sensors and monitoring electronics. Its 9-meter total length configuration allows greater installation flexibility, making it suitable for equipment where sensing locations are separated from monitoring cabinets.

For industries that depend on continuous operation of critical rotating machinery, the 330300-90-00 provides dependable signal handling performance and supports improved equipment monitoring accuracy.

Technical Specifications

Specification	Details
Product Brand	Bently Nevada
Model Number	330300-90-00
Product Series	3300 XL
Module Type	High Temperature Preamplifier Sensor
Sensor Type	Proximity Signal Conditioning Module
Total Length	9 meters
Application	High Temperature Rotating Machinery Monitoring
Compatible System	Bently Nevada 3300 XL Proximity Monitoring System
Function	Proximity Probe Signal Processing and Transmission
Installation Type	Industrial Field Installation
Measurement Application	Shaft Vibration and Position Monitoring
Cable Configuration	Extended Length Signal Cable
Dimensions	Approx. 25 × 25 × 300 mm
Weight	0.26 kg (0.56 lb)

Recommended Related Models

Model	Description
Bently Nevada 330300-90-00-05	3300 XL High Temperature Preamplifier Sensor Configuration
Bently Nevada 330180-90-00	3300 XL Extension Cable for proximity monitoring applications
Bently Nevada 330173-00-08-10-02-00	3300 5mm Proximity Probe for shaft monitoring
Bently Nevada 330193-00-04-10-00	3300 XL 8mm Proximity Probe for rotating machinery applications

Popular Related Models

Model	Description
Bently Nevada 3300/03-01-00	3300 Power Supply Module for monitoring system racks
Bently Nevada 3300/16-12-01-00	Dual Vibration Monitor Module
Bently Nevada 3300/20-12-01-01	Dual Thrust Position Monitor Module
Bently Nevada 3500/42M	Proximity Monitor Module for advanced machinery protection

Applications in High Temperature Machinery Monitoring

The Bently Nevada 330300-90-00 3300 XL High Temperature Preamplifier Sensor is designed for reliable signal conditioning in demanding rotating machinery environments where elevated temperatures and accurate vibration monitoring are critical. As part of the 3300 XL proximity monitoring system, this preamplifier sensor provides stable signal transmission between proximity probes and monitoring equipment.

This high-temperature preamplifier sensor is commonly applied in gas turbines, steam turbines, compressors, expanders, and other industrial rotating equipment operating in harsh thermal conditions. Its extended temperature capability makes it suitable for installations where standard signal conditioning components may not provide sufficient reliability.

With a 9-meter total length configuration, the 330300-90-00 offers flexible installation options for complex machinery layouts while maintaining consistent signal quality. It supports advanced machinery protection strategies by helping monitoring systems receive accurate and dependable vibration and position data.

Performance Advantages and Technical Benefits

Feature	Description
High Temperature Capability	Designed for demanding environments where elevated operating temperatures are present
3300 XL System Compatibility	Supports integration with Bently Nevada 3300 XL proximity monitoring systems
Reliable Signal Conditioning	Helps maintain stable transmission between probe and monitoring electronics
Extended 9-Meter Length	Provides installation flexibility for large machinery configurations
Industrial Grade Construction	Built for continuous operation in critical equipment applications
Enhanced Monitoring Reliability	Supports accurate vibration and shaft position analysis

Technical FAQs

1. What is the main function of the Bently Nevada 330300-90-00?
The preamplifier sensor conditions and transmits signals from proximity probes to machinery monitoring systems.

2. Why is a high-temperature preamplifier used in industrial applications?
It is used where installation locations experience higher temperatures that require enhanced thermal performance.

3. Which monitoring systems are compatible with this preamplifier sensor?
It is designed for use with Bently Nevada 3300 XL proximity monitoring system configurations.

4. What type of signals does the preamplifier process?
It processes proximity probe signals related to shaft vibration and displacement measurements.

5. Can this component be used for turbine monitoring applications?
Yes. It is suitable for turbine and other critical rotating machinery monitoring systems.

6. How does a preamplifier improve machinery monitoring performance?
It helps provide stable signal conditioning and reliable communication between sensing components and monitoring equipment.

7. What types of equipment typically require high-temperature signal conditioning?
Applications include turbines, compressors, expanders, and machinery operating near high-temperature areas.

8. How does the preamplifier support predictive maintenance programs?
It helps deliver consistent measurement signals that allow engineers to analyze equipment condition trends.

9. Is this component installed directly on rotating equipment?
No. It is installed as part of the monitoring signal chain between the proximity probe and monitoring system.

10. What factors affect the reliability of proximity monitoring signals?
Installation quality, cable routing, environmental conditions, and system compatibility influence signal reliability.
