Product Introduction and Engineering Overview

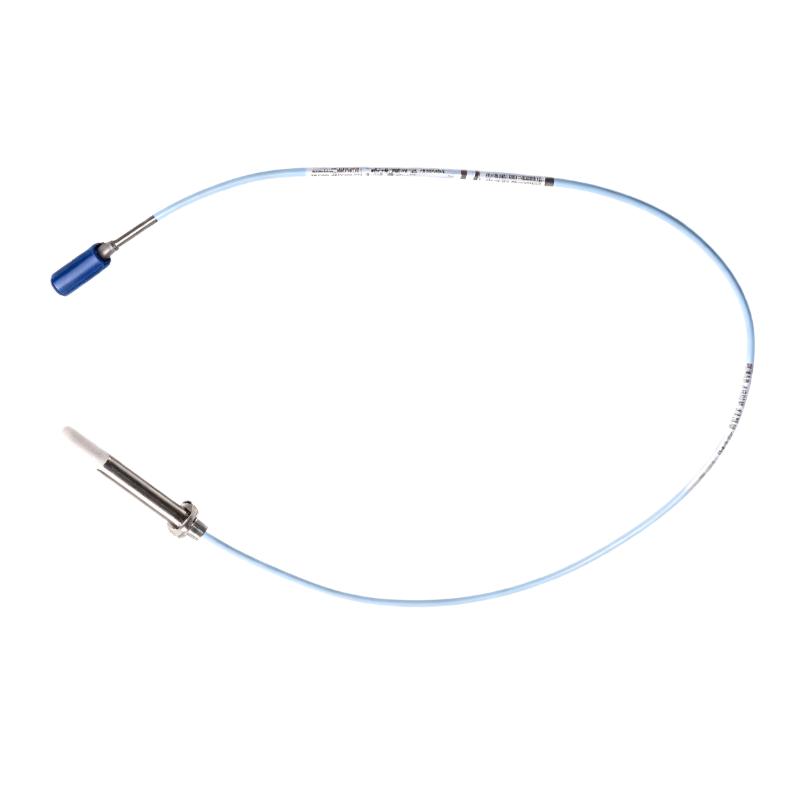

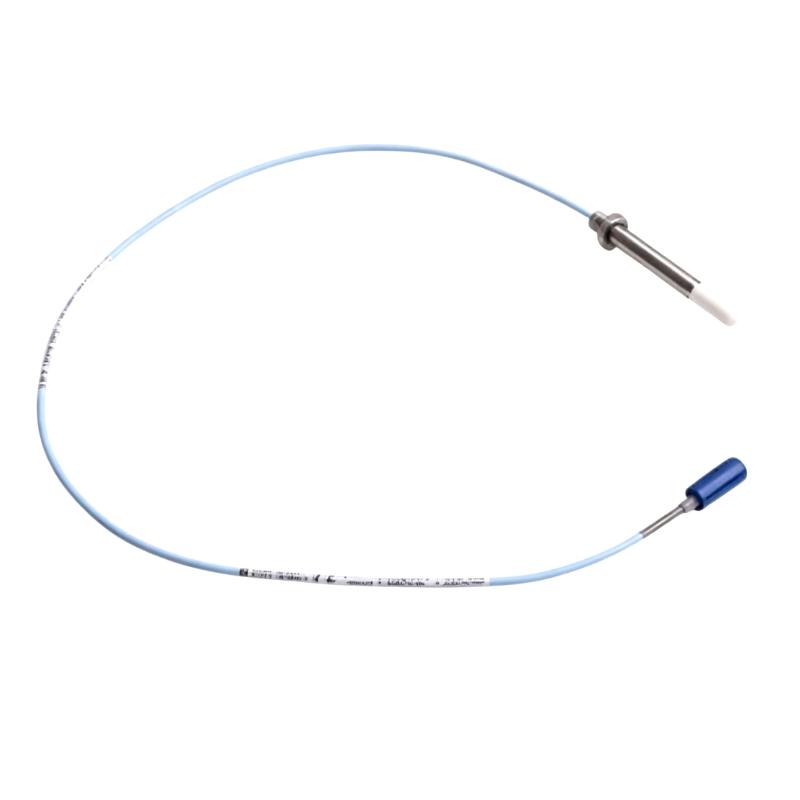

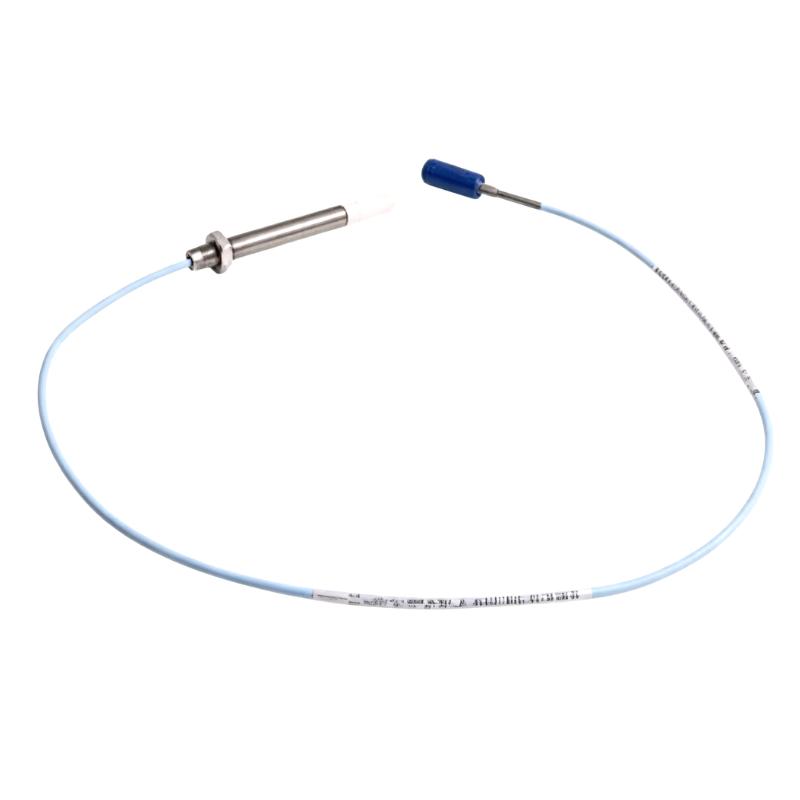

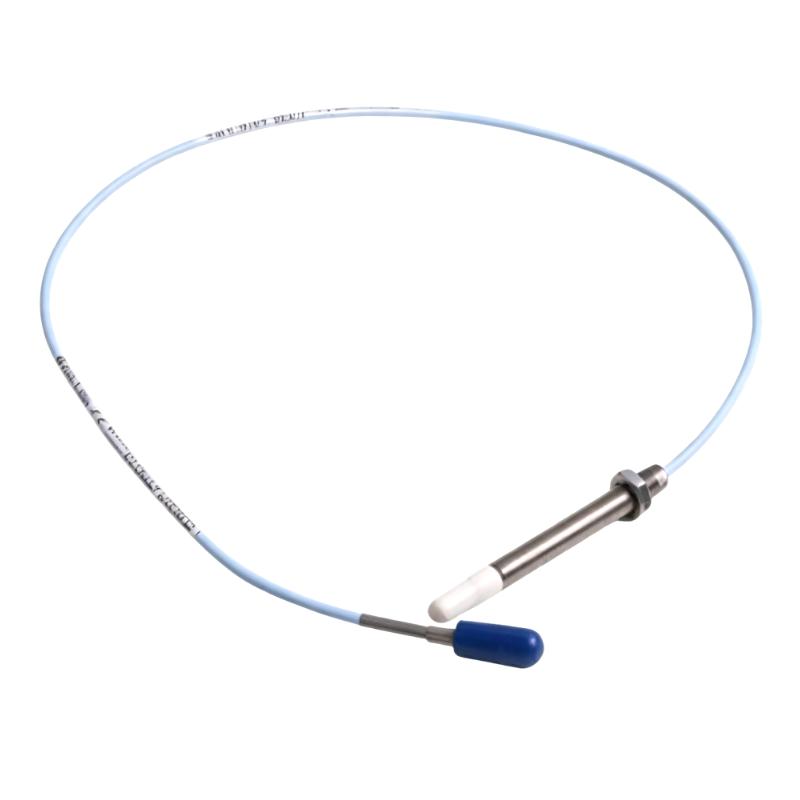

The Bently Nevada 330903-05-16-05-02-00 3300 NSv Proximity Probe is a precision sensing solution developed for industries requiring dependable machinery monitoring in compact installation environments. It provides accurate shaft vibration and displacement measurement to support equipment protection and reliability improvement programs.

The 3300 NSv platform combines compact mechanical design with proven sensing technology, allowing engineers to monitor critical rotating components where installation space is limited. Its 0.5-meter total length configuration offers practical flexibility for smaller equipment arrangements.

Designed for industrial reliability, the 330903-05-16-05-02-00 helps operators maintain equipment performance, improve maintenance decisions, and reduce the risk of unexpected machinery failures.

Technical Specifications

Specification	Details
Product Brand	Bently Nevada
Model Number	330903-05-16-05-02-00
Product Series	3300 NSv
Module Type	Metric Proximity Probe
Sensor Technology	Eddy Current Proximity Sensing
Probe Type	NSv Compact Proximity Probe
Total Length	0.5 meters
Measurement Function	Shaft Vibration and Position Monitoring
Application	Rotating Machinery Condition Monitoring
Compatible System	Bently Nevada 3300 NSv Monitoring System
Installation Type	Non-Contact Probe Mounting
Cable Configuration	Integrated 0.5-Meter Cable
Dimensions	Approx. 8 mm probe diameter × 500 mm total length
Weight	0.15 kg (0.33 lb)

Recommended Related Models

Model	Description
Bently Nevada 330903-02-16-05-02-00	3300 NSv Metric Proximity Probe with 0.5-meter configuration
Bently Nevada 330903-00-11-05-02-05	3300 NSv Metric Proximity Probe for compact monitoring applications
Bently Nevada 330903-00-12-05-02-05	3300 NSv Metric Proximity Probe with alternative configuration
Bently Nevada 330180-50-00	Extension Cable for proximity probe system installations

Popular Related Models

Model	Description
Bently Nevada 3300/03-01-00	3300 Power Supply Module for machinery monitoring racks
Bently Nevada 3300/16-12-01-00	Dual Vibration Monitor Module
Bently Nevada 3300/20-12-01-01	Dual Thrust Position Monitor Module
Bently Nevada 3500/42M	Proximity Monitor Module for advanced machinery protection

Applications for Reliable Compact Machinery Protection

The Bently Nevada 330903-05-16-05-02-00 3300 NSv Proximity Probe is designed to provide accurate shaft vibration and displacement monitoring for rotating machinery applications where compact installation and dependable sensing performance are essential. As a member of the 3300 NSv proximity probe series, this sensor delivers reliable non-contact measurement for machinery protection and predictive maintenance systems.

This metric proximity probe is suitable for applications involving small and medium rotating equipment, including compressors, pumps, turbines, motors, and auxiliary machinery. Its compact NSv structure allows installation in areas with limited space while maintaining the measurement accuracy required for effective equipment condition monitoring.

Utilizing advanced eddy current sensing technology, the 330903-05-16-05-02-00 provides stable shaft position and vibration feedback, helping maintenance teams improve machine diagnostics, identify early signs of mechanical issues, and enhance overall operational reliability.

Main Features and Technical Advantages

Feature	Description
3300 NSv Compact Design	Provides reliable proximity measurement for space-restricted installations
Metric Configuration	Designed for metric machinery monitoring applications
Non-Contact Measurement	Enables continuous shaft monitoring without physical contact
Eddy Current Technology	Delivers stable and repeatable vibration measurement performance
0.5-Meter Total Length	Suitable for compact equipment installation requirements
Machinery Condition Monitoring	Supports vibration analysis and equipment protection strategies

Technical FAQs

1. What is the purpose of the Bently Nevada 330903-05-16-05-02-00 proximity probe?
It is used to measure shaft vibration, displacement, and relative position in rotating machinery monitoring systems.

2. How does the 3300 NSv proximity probe work?
It uses eddy current sensing technology to measure the distance between the probe tip and the rotating shaft target.

3. Why is this probe suitable for compact machinery applications?
Its compact design allows installation in locations where traditional proximity probes may not fit.

4. What equipment can be monitored with this proximity probe?
It is commonly used for compressors, pumps, turbines, motors, and other industrial rotating equipment.

5. Does the probe physically touch the machine shaft?
No. It operates through electromagnetic sensing and maintains a non-contact measurement method.

6. What signals are generated by this proximity probe?
It provides vibration and shaft position signals for use by compatible machinery monitoring systems.

7. How does this probe contribute to predictive maintenance?
It provides continuous machine condition data that helps identify developing equipment problems.

8. What factors affect the accuracy of proximity probe measurements?
Installation alignment, probe gap adjustment, calibration, and shaft surface characteristics influence measurement accuracy.

9. Is this proximity probe designed for continuous industrial operation?
Yes. It is designed for permanent installation in machinery monitoring applications.

10. What are the benefits of eddy current sensing technology?
It provides accurate, stable, and fast-response measurement performance for rotating machinery applications.
