Product Introduction and Engineering Overview

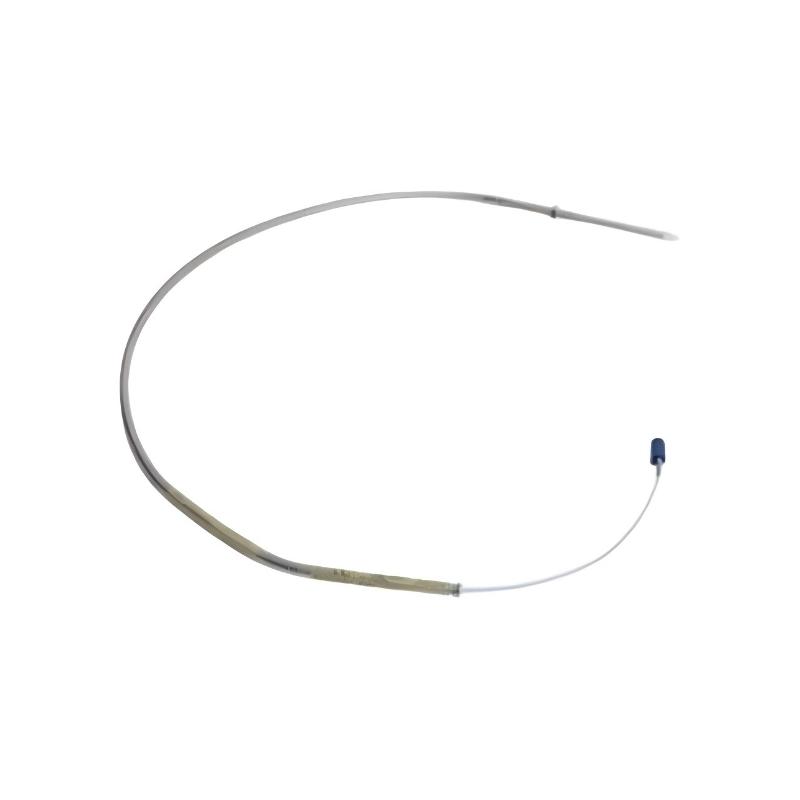

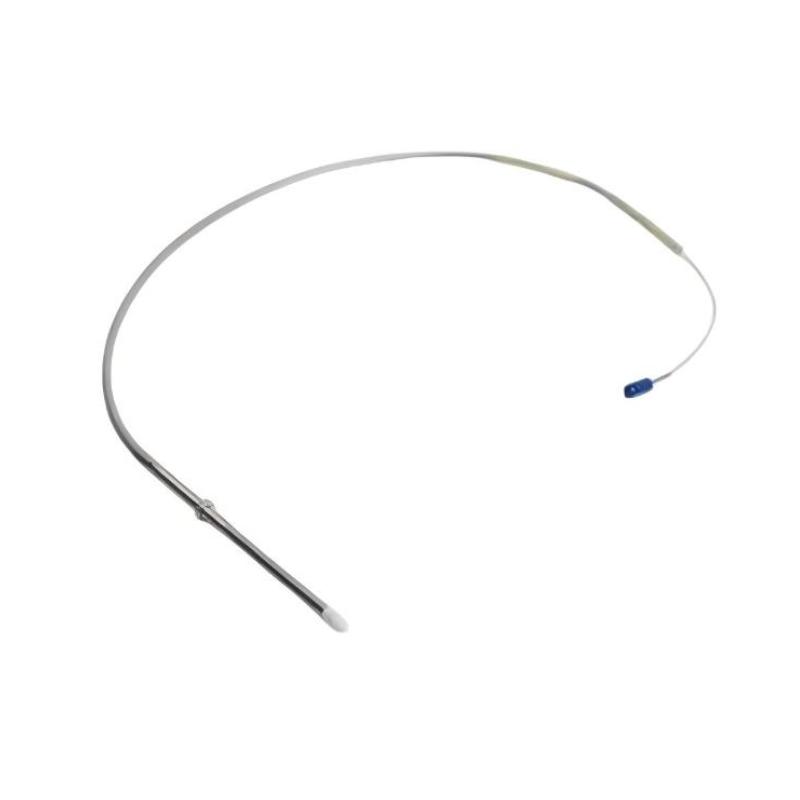

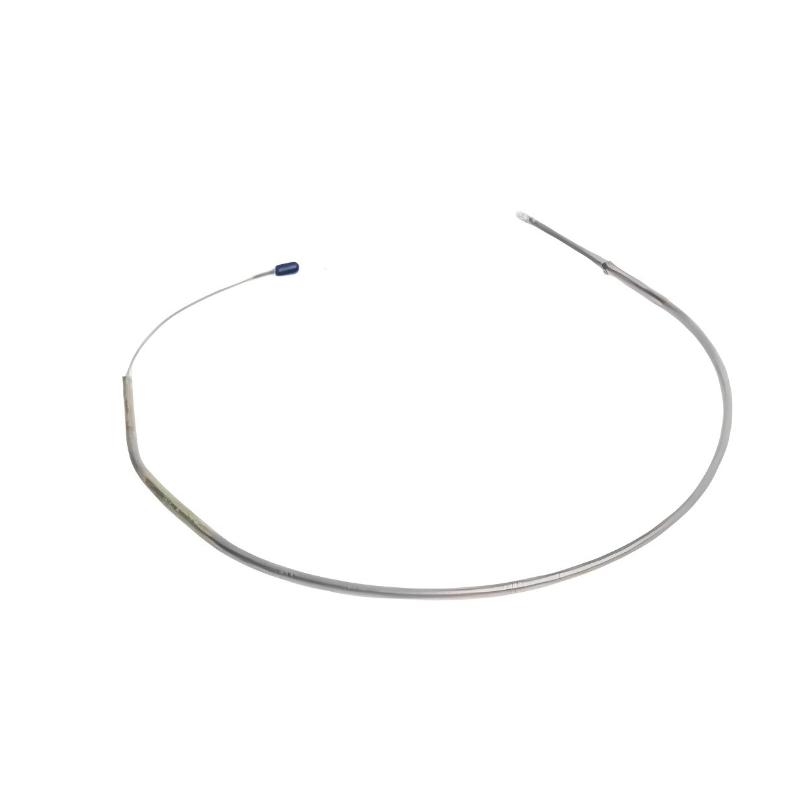

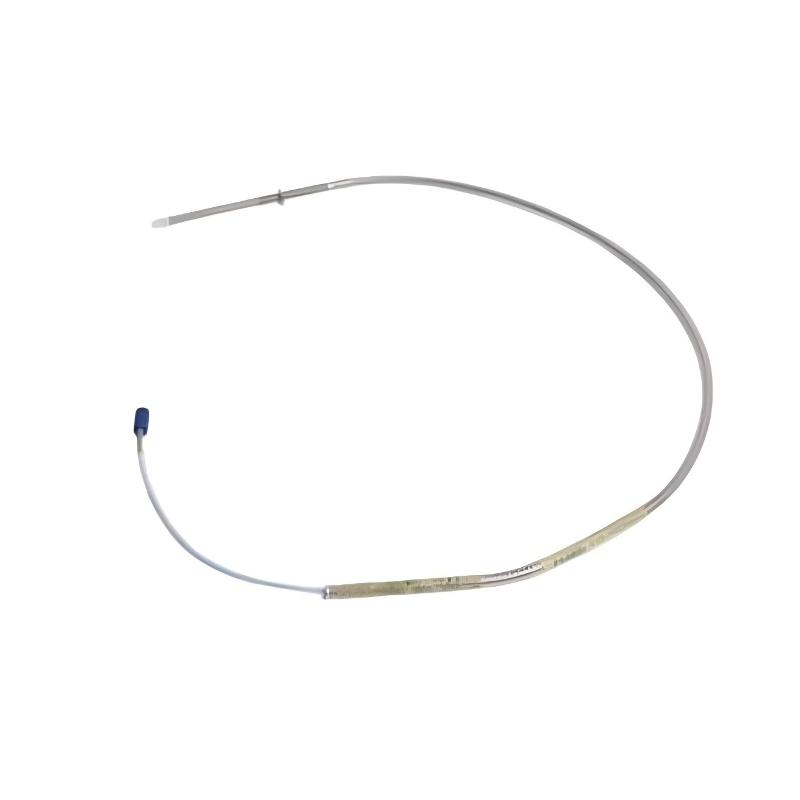

The Bently Nevada 330904-00-10-10-01-05 3300 NSv Proximity Probe is a precision monitoring component developed to provide reliable shaft measurement for industrial rotating machinery. It combines compact sensor design with advanced proximity sensing technology to support accurate equipment condition monitoring.

The 3300 NSv series is designed for applications where reliable vibration and displacement measurement is required in compact or challenging installation environments. With a 1-meter total length configuration, this probe provides practical flexibility while maintaining consistent measurement performance.

For industries focused on improving equipment availability, reducing unexpected downtime, and strengthening predictive maintenance programs, the 330904-00-10-10-01-05 provides a dependable solution for critical machinery monitoring.

Technical Specifications

Specification	Details
Product Brand	Bently Nevada
Model Number	330904-00-10-10-01-05
Product Series	3300 NSv
Module Type	Metric Proximity Probe
Sensor Technology	Eddy Current Proximity Sensing
Probe Type	NSv Compact Proximity Probe
Total Length	1 meter
Measurement Function	Shaft Vibration and Position Monitoring
Application	Rotating Machinery Condition Monitoring
Compatible System	Bently Nevada 3300 NSv Monitoring System
Installation Method	Non-Contact Probe Mounting
Cable Configuration	Integrated 1-Meter Cable
Dimensions	Approx. 8 mm probe diameter × 1000 mm total length
Weight	0.15 kg (0.33 lb)

Recommended Related Models

Model	Description
Bently Nevada 330904-00-07-10-01-05	3300 NSv Metric Proximity Probe with 1-meter configuration
Bently Nevada 330904-00-09-10-02-RU	3300 NSv Metric Proximity Probe for industrial monitoring applications
Bently Nevada 330903-00-21-10-02-05	3300 NSv Metric Proximity Probe with standard 1-meter length
Bently Nevada 330180-50-00	Extension Cable for Bently Nevada proximity probe systems

Popular Related Models

Model	Description
Bently Nevada 3300/03-01-00	3300 Power Supply Module for monitoring rack systems
Bently Nevada 3300/16-12-01-00	Dual Vibration Monitor Module
Bently Nevada 3300/20-12-01-01	Dual Thrust Position Monitor Module
Bently Nevada 3500/42M	Proximity Monitor Module for advanced machinery protection

Applications in Industrial Rotating Equipment Monitoring

The Bently Nevada 330904-00-10-10-01-05 3300 NSv Proximity Probe is designed for accurate shaft vibration and displacement measurement in rotating machinery applications requiring dependable sensing, flexible installation, and continuous condition monitoring. As part of the 3300 NSv proximity probe family, this metric sensor provides reliable non-contact measurement for machinery protection and predictive maintenance systems.

This proximity probe is widely used in industrial equipment such as turbines, compressors, pumps, motors, and auxiliary rotating machinery where accurate shaft monitoring is essential for maintaining operational reliability. The 1-meter total length configuration provides additional installation flexibility for equipment layouts that require extended sensor reach.

Built with proven eddy current sensing technology, the 330904-00-10-10-01-05 delivers stable vibration and shaft position signals, helping operators improve equipment diagnostics, identify developing mechanical conditions, and optimize maintenance strategies for critical assets.

Technical Features and Reliability Advantages

Feature	Description
3300 NSv Proximity Technology	Provides reliable shaft monitoring for industrial rotating equipment
Metric Sensor Configuration	Designed for metric installation requirements
Non-Contact Measurement	Allows continuous monitoring without mechanical contact or wear
Eddy Current Sensing Performance	Delivers stable and repeatable vibration measurement
1-Meter Total Length	Supports flexible installation in various machinery configurations
Predictive Maintenance Capability	Helps improve equipment health analysis and fault detection

Technical FAQs

1. What is the main application of the Bently Nevada 330904-00-10-10-01-05?
It is used for shaft vibration and displacement measurement in rotating machinery monitoring systems.

2. How does the 3300 NSv proximity probe measure shaft position?
It uses eddy current sensing technology to detect changes in the distance between the probe tip and the conductive shaft surface.

3. Why is a 1-meter configuration useful for machinery monitoring?
It provides additional installation flexibility for equipment where the sensor location requires longer connection distance.

4. What equipment is suitable for this proximity probe?
It is commonly used on turbines, compressors, pumps, motors, and other industrial rotating machines.

5. Does the probe touch the rotating shaft during operation?
No. It performs measurement using non-contact electromagnetic sensing technology.

6. What signals are generated by the proximity probe?
It provides shaft vibration and position signals used by compatible machinery monitoring systems.

7. How does this probe support predictive maintenance programs?
It provides continuous operating data that helps identify abnormal machine conditions and potential failures.

8. What installation conditions affect measurement accuracy?
Probe positioning, gap adjustment, calibration, shaft surface condition, and system configuration influence measurement results.

9. Can the probe be used for long-term industrial monitoring?
Yes. It is designed for permanent installation in machinery protection and condition monitoring applications.

10. What advantages does eddy current sensing offer?
It provides accurate, stable, and fast-response measurements without physical contact with the monitored component.
