Product Overview and Engineering Introduction

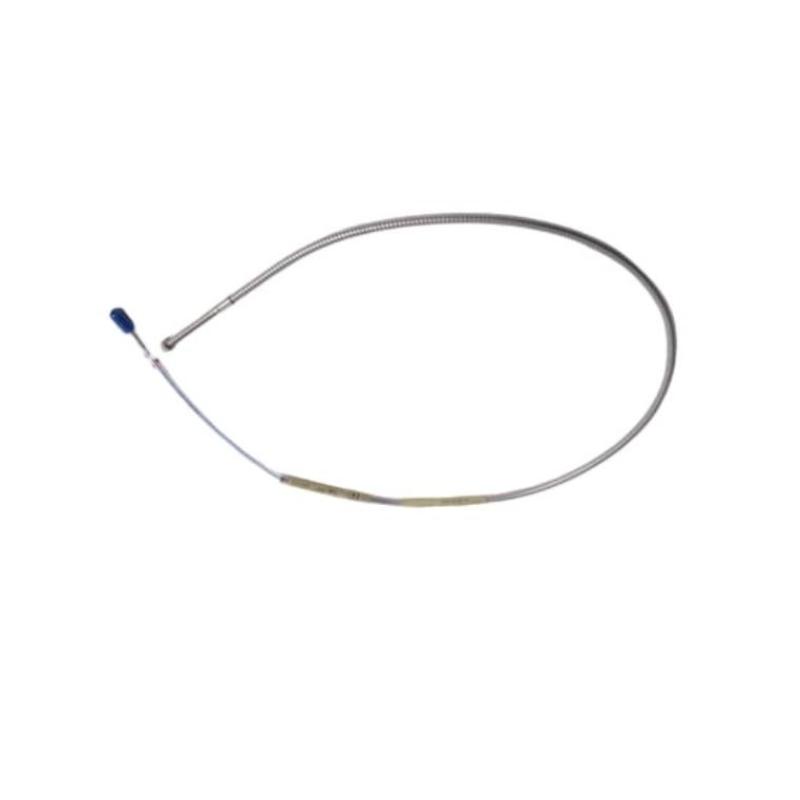

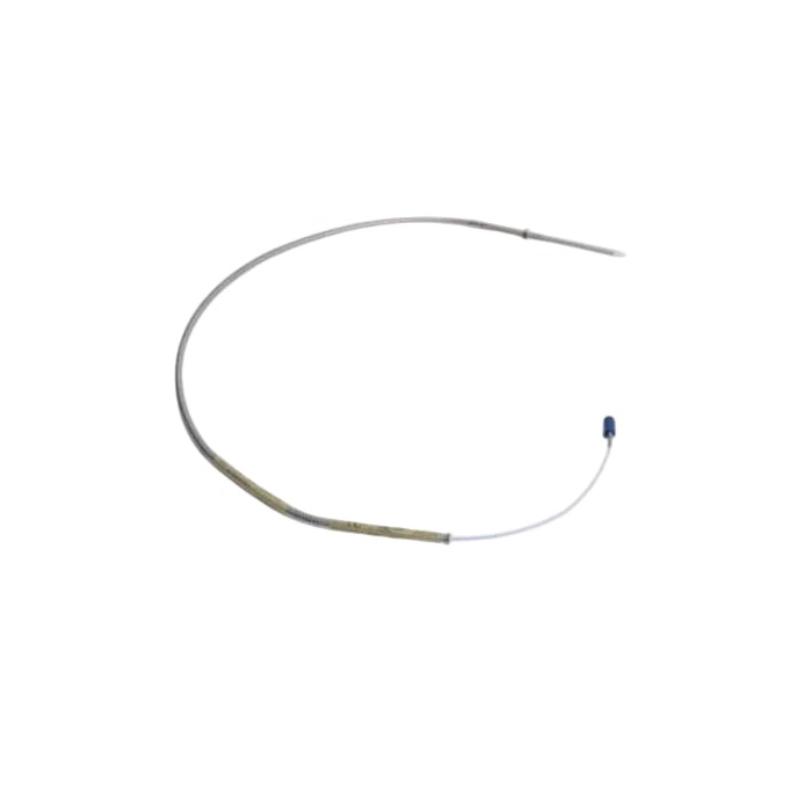

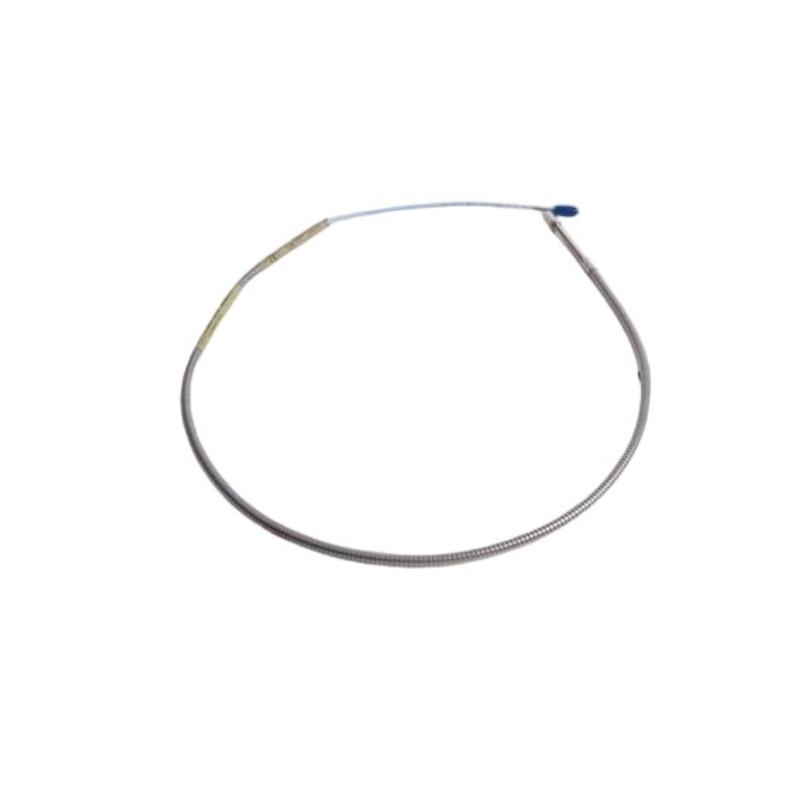

The Bently Nevada 330904-02-10-70-01-00 3300 NSv Proximity Probe is a precision sensing component developed for industrial applications requiring reliable shaft monitoring over extended installation distances. It combines compact sensor construction with proven eddy current technology to provide accurate vibration and displacement measurement.

The 3300 NSv series offers a practical monitoring solution for applications where installation flexibility and measurement reliability are equally important. With a 7-meter total length configuration, this probe is designed to support complex machinery layouts while maintaining dependable monitoring capability.

For industries operating critical rotating assets, the 330904-02-10-70-01-00 helps improve equipment protection, enhance predictive maintenance programs, and support long-term operational stability.

Technical Specifications

Specification	Details
Product Brand	Bently Nevada
Model Number	330904-02-10-70-01-00
Product Series	3300 NSv
Module Type	Metric Proximity Probe
Sensor Technology	Eddy Current Proximity Sensing
Probe Type	NSv Compact Proximity Probe
Total Length	7 meters
Measurement Function	Shaft Vibration and Position Monitoring
Application	Rotating Machinery Condition Monitoring
Compatible System	Bently Nevada 3300 NSv Monitoring System
Installation Method	Non-Contact Probe Mounting
Cable Configuration	Integrated 7-Meter Cable
Dimensions	Approx. 8 mm probe diameter × 7000 mm total length
Weight	0.15 kg (0.33 lb)

Recommended Related Models

Model	Description
Bently Nevada 330904-00-03-70-01-CN	3300 NSv Metric Proximity Probe with 7-meter configuration
Bently Nevada 330903-07-13-70-11-05	3300 NSv Metric Proximity Probe for extended monitoring applications
Bently Nevada 330904-00-10-10-01-05	3300 NSv Metric Proximity Probe with 1-meter configuration
Bently Nevada 330180-90-00	Extension Cable for extended proximity probe installations

Popular Related Models

Model	Description
Bently Nevada 3300/03-01-00	3300 Power Supply Module for machinery monitoring systems
Bently Nevada 3300/16-12-01-00	Dual Vibration Monitor Module
Bently Nevada 3300/20-12-01-01	Dual Thrust Position Monitor Module
Bently Nevada 3500/42M	Proximity Monitor Module for advanced machinery protection

Applications in Extended Industrial Machinery Monitoring

The Bently Nevada 330904-02-10-70-01-00 3300 NSv Proximity Probe is engineered for accurate shaft vibration and displacement measurement in rotating machinery applications where extended installation distance, compact design, and reliable monitoring performance are essential. As part of the 3300 NSv proximity probe family, this metric sensor provides dependable non-contact measurement for machinery protection and predictive maintenance systems.

This proximity probe is suitable for critical industrial equipment including turbines, compressors, pumps, motors, and auxiliary rotating machinery. The 7-meter total length configuration provides additional flexibility for installations where the sensing location is positioned away from the monitoring system while maintaining stable signal transmission.

Featuring advanced eddy current sensing technology, the 330904-02-10-70-01-00 delivers consistent shaft position and vibration data, helping engineers improve machine diagnostics, detect early equipment changes, and optimize maintenance planning for high-value assets.

Technical Advantages and Product Features

Feature	Description
Extended 7-Meter Configuration	Supports installations requiring longer sensor connection distances
3300 NSv Proximity Technology	Provides reliable shaft monitoring for industrial rotating equipment
Metric Probe Design	Compatible with metric-based machinery monitoring applications
Non-Contact Measurement	Enables continuous monitoring without mechanical wear
Eddy Current Sensing Technology	Delivers accurate and stable vibration measurement signals
Predictive Maintenance Support	Helps identify equipment condition changes and improve reliability

Technical FAQs

1. What is the primary purpose of the Bently Nevada 330904-02-10-70-01-00?
It is used to measure shaft vibration, displacement, and position changes in rotating machinery monitoring systems.

2. How does the 3300 NSv proximity probe measure shaft movement?
It uses eddy current sensing technology to detect changes in the distance between the probe tip and the conductive shaft surface.

3. Why is a 7-meter proximity probe configuration used?
It provides installation flexibility when the measurement point is located far from the monitoring equipment.

4. What equipment can use this proximity probe?
It is commonly used on turbines, compressors, pumps, motors, and other industrial rotating machines.

5. Does the probe require direct contact with the rotating shaft?
No. It operates using non-contact electromagnetic sensing technology.

6. What signals are provided by the proximity probe?
It provides shaft vibration and relative position measurement signals for compatible monitoring systems.

7. How does this sensor support machinery protection?
It enables continuous monitoring to help detect abnormal shaft movement and changing machine conditions.

8. What factors affect proximity probe measurement accuracy?
Installation position, probe gap adjustment, calibration, shaft surface condition, and system configuration influence accuracy.

9. Can this proximity probe be used for continuous operation?
Yes. It is designed for permanent installation in industrial machinery monitoring applications.

10. What advantages does eddy current sensing provide?
It offers stable, repeatable, and fast-response measurement performance without physical contact with the shaft.
