Product Introduction and Engineering Overview

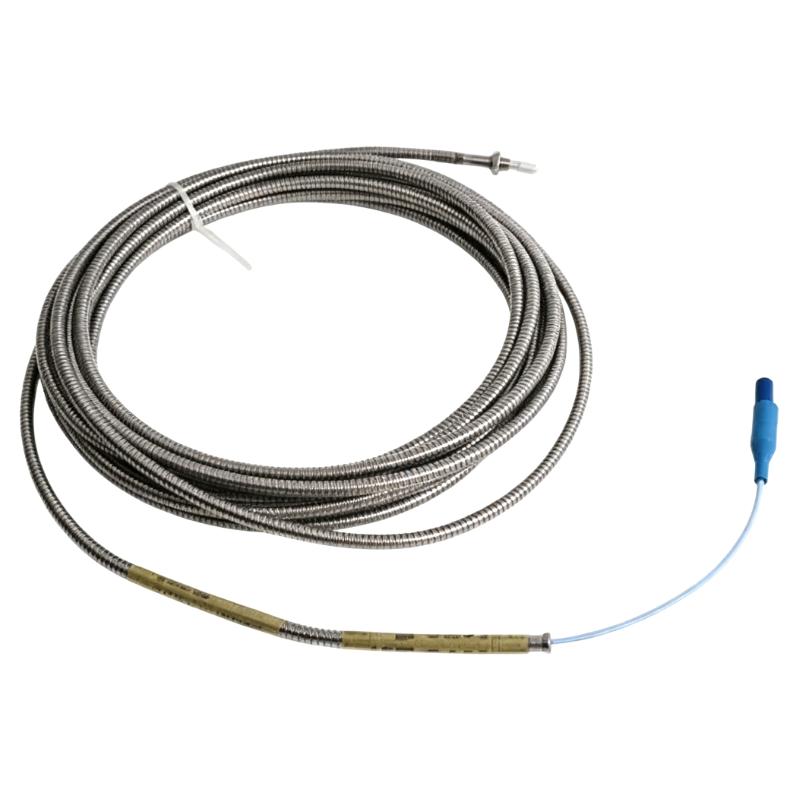

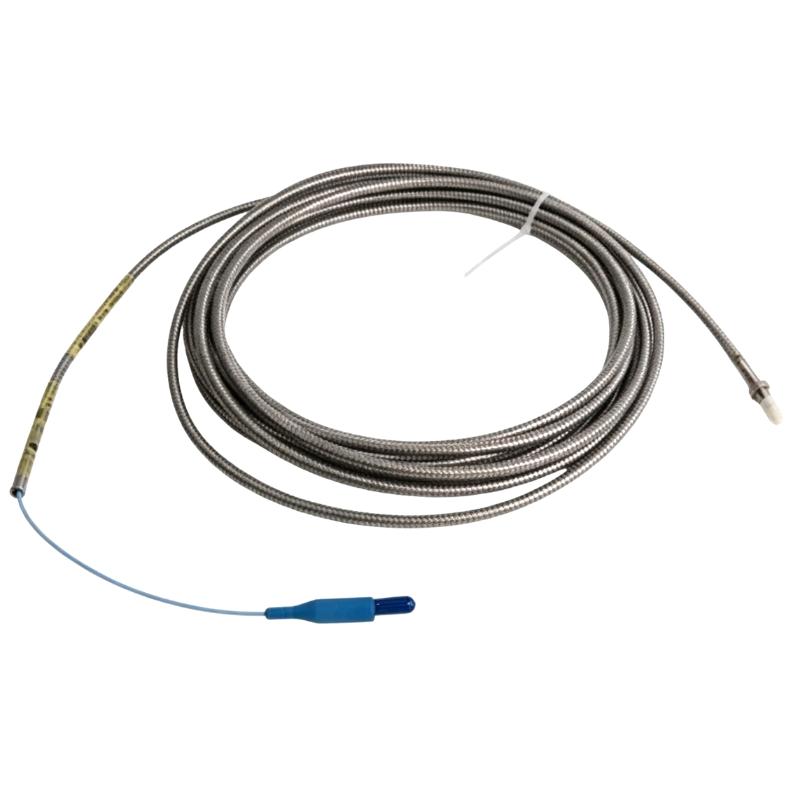

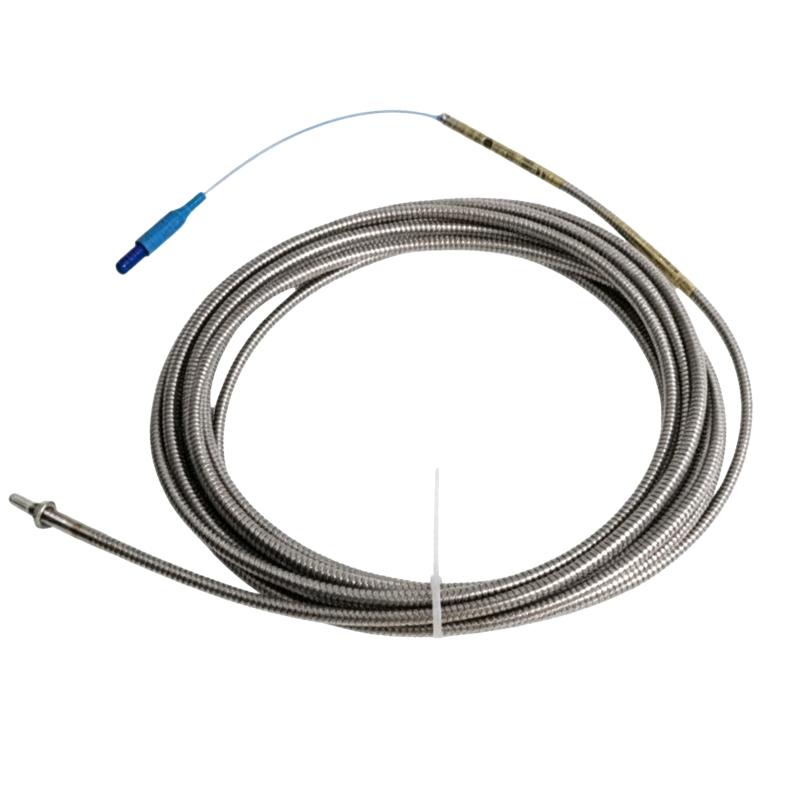

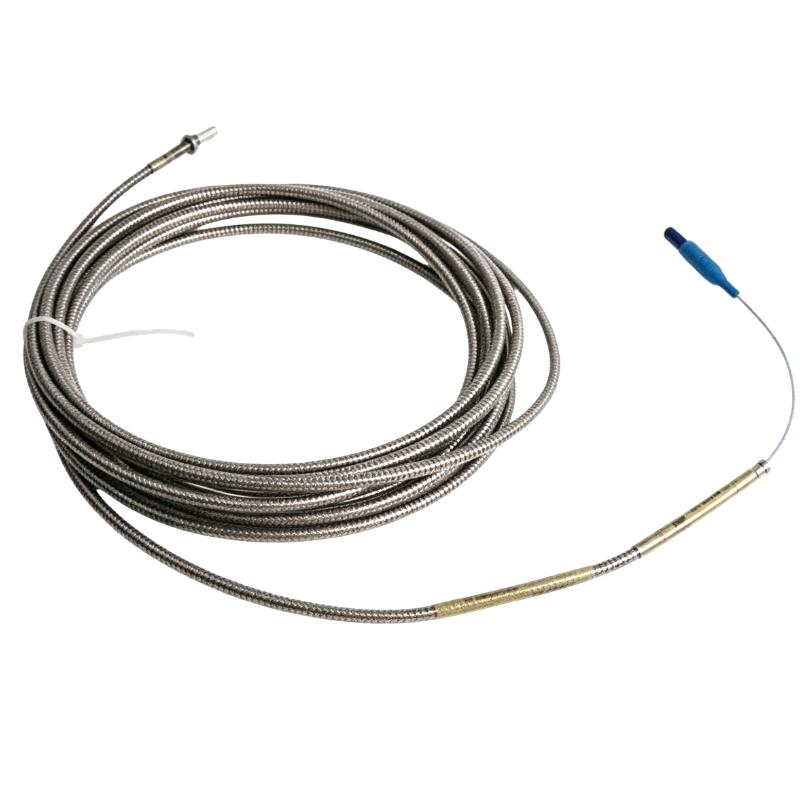

The Bently Nevada 330904-05-14-05-02-00 3300 NSv Proximity Probe is a precision sensing component developed for industries requiring accurate shaft monitoring in compact machinery environments. It provides essential vibration and displacement measurements needed for effective equipment protection and maintenance optimization.

The 3300 NSv platform combines a compact structure with proven eddy current technology, allowing reliable monitoring of rotating components in challenging installation conditions. Its 0.5-meter total length configuration provides an efficient option for short-distance sensor applications.

Built for dependable industrial operation, the 330904-05-14-05-02-00 helps improve machine diagnostics, reduce unexpected downtime, and support long-term reliability of critical rotating equipment.

Technical Specifications

Specification	Details
Product Brand	Bently Nevada
Model Number	330904-05-14-05-02-00
Product Series	3300 NSv
Module Type	Metric Proximity Probe
Sensor Technology	Eddy Current Proximity Sensing
Probe Type	NSv Compact Proximity Probe
Total Length	0.5 meters
Measurement Function	Shaft Vibration and Position Monitoring
Application	Rotating Machinery Condition Monitoring
Compatible System	Bently Nevada 3300 NSv Monitoring System
Installation Method	Non-Contact Probe Mounting
Cable Configuration	Integrated 0.5-Meter Cable
Dimensions	Approx. 8 mm probe diameter × 500 mm total length
Weight	0.15 kg (0.33 lb)

Recommended Related Models

Model	Description
Bently Nevada 330904-02-14-05-02-05	3300 NSv Metric Proximity Probe for compact monitoring applications
Bently Nevada 330904-00-25-05-02-05	3300 NSv Metric Proximity Probe with 0.5-meter configuration
Bently Nevada 330904-00-10-05-02-00	3300 NSv Metric Proximity Probe for short-distance installations
Bently Nevada 330180-50-00	Extension Cable for Bently Nevada proximity probe systems

Popular Related Models

Model	Description
Bently Nevada 3300/03-01-00	3300 Power Supply Module for machinery monitoring systems
Bently Nevada 3300/16-12-01-00	Dual Vibration Monitor Module
Bently Nevada 3300/20-12-01-01	Dual Thrust Position Monitor Module
Bently Nevada 3500/42M	Proximity Monitor Module for advanced machinery protection

Applications in Compact Rotating Equipment Condition Monitoring

The Bently Nevada 330904-05-14-05-02-00 3300 NSv Proximity Probe is designed for accurate shaft vibration and displacement measurement in industrial rotating machinery where compact installation, reliable sensing, and consistent monitoring performance are required. As part of the 3300 NSv proximity probe series, this metric sensor provides dependable non-contact measurement for machinery protection and predictive maintenance applications.

This proximity probe is suitable for a wide range of rotating equipment, including turbines, compressors, pumps, motors, and auxiliary machinery. The 0.5-meter total length configuration offers a practical solution for installations with limited space while maintaining stable shaft monitoring performance.

Using advanced eddy current sensing technology, the 330904-05-14-05-02-00 delivers accurate vibration and shaft position signals, helping maintenance teams evaluate equipment conditions, improve diagnostic capabilities, and enhance operational reliability.

Product Features and Performance Advantages

Feature	Description
3300 NSv Series Technology	Provides reliable shaft monitoring for industrial rotating machinery
Metric Proximity Probe Design	Supports metric installation requirements for equipment monitoring
Compact 0.5-Meter Configuration	Designed for applications requiring shorter installation distance
Non-Contact Measurement Principle	Enables continuous monitoring without mechanical wear
Eddy Current Sensing Technology	Provides stable and repeatable displacement measurement
Machinery Protection Capability	Supports predictive maintenance and equipment condition analysis

Technical FAQs

1. What is the main function of the Bently Nevada 330904-05-14-05-02-00?
It is designed to measure shaft vibration and displacement in rotating machinery monitoring applications.

2. How does the 3300 NSv proximity probe operate?
It uses eddy current sensing technology to detect variations in the gap between the probe tip and the rotating shaft.

3. Why is a compact proximity probe used in industrial equipment?
It allows accurate monitoring in applications where installation space is limited.

4. What equipment is compatible with this proximity probe?
It is commonly used with turbines, compressors, pumps, motors, and other rotating industrial assets.

5. Does the sensor physically touch the shaft during operation?
No. It performs measurement through non-contact electromagnetic sensing.

6. What measurement data does this probe provide?
It provides shaft vibration and relative position information for machinery monitoring systems.

7. How does this probe support maintenance planning?
It provides continuous condition data that helps identify equipment changes and potential issues.

8. What affects the accuracy of proximity probe measurements?
Installation quality, probe gap adjustment, calibration, shaft material, and monitoring system settings influence accuracy.

9. Is the probe suitable for continuous industrial monitoring?
Yes. It is designed for permanent installation in machinery condition monitoring systems.

10. What are the advantages of eddy current sensing technology?
It provides reliable, fast-response, and repeatable measurement without direct mechanical contact.
