Product Introduction and Engineering Overview

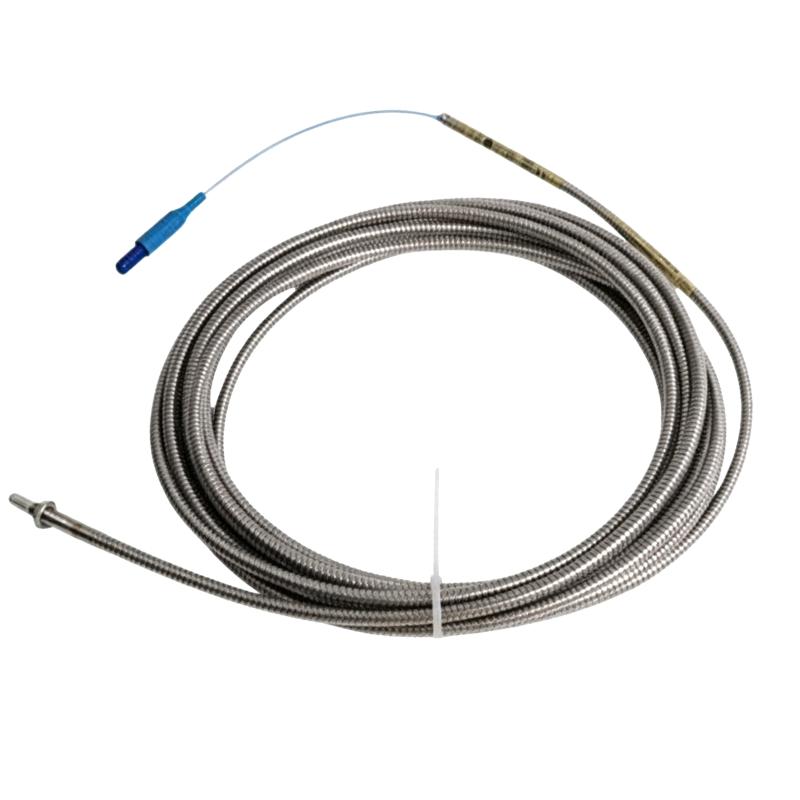

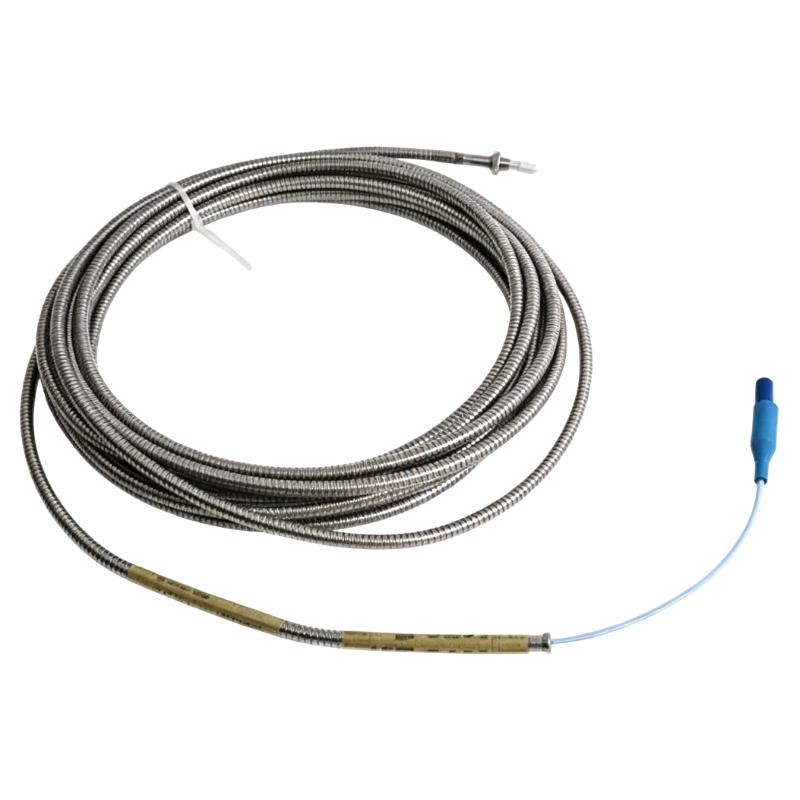

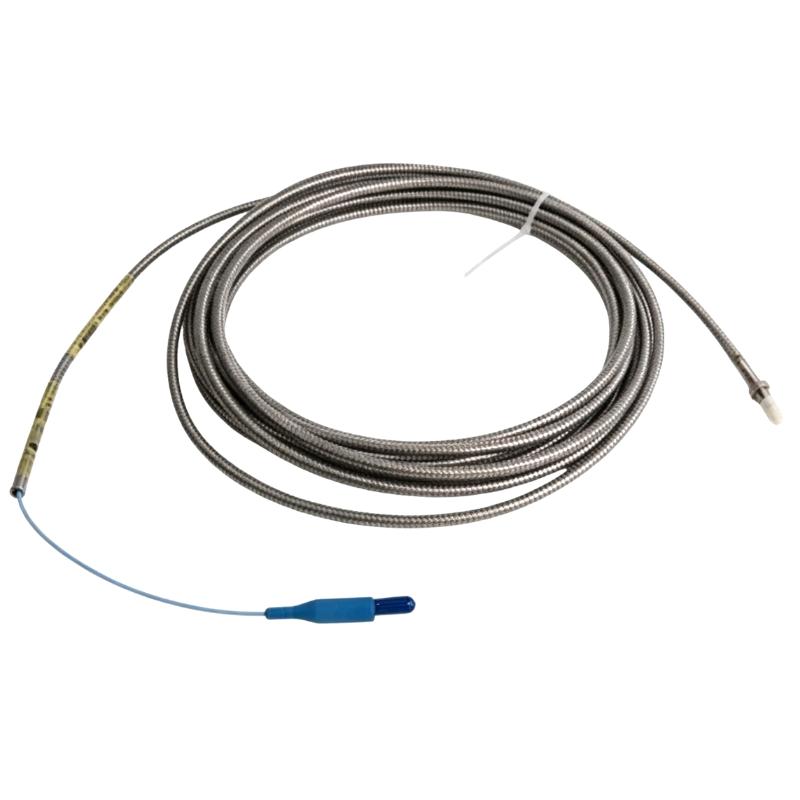

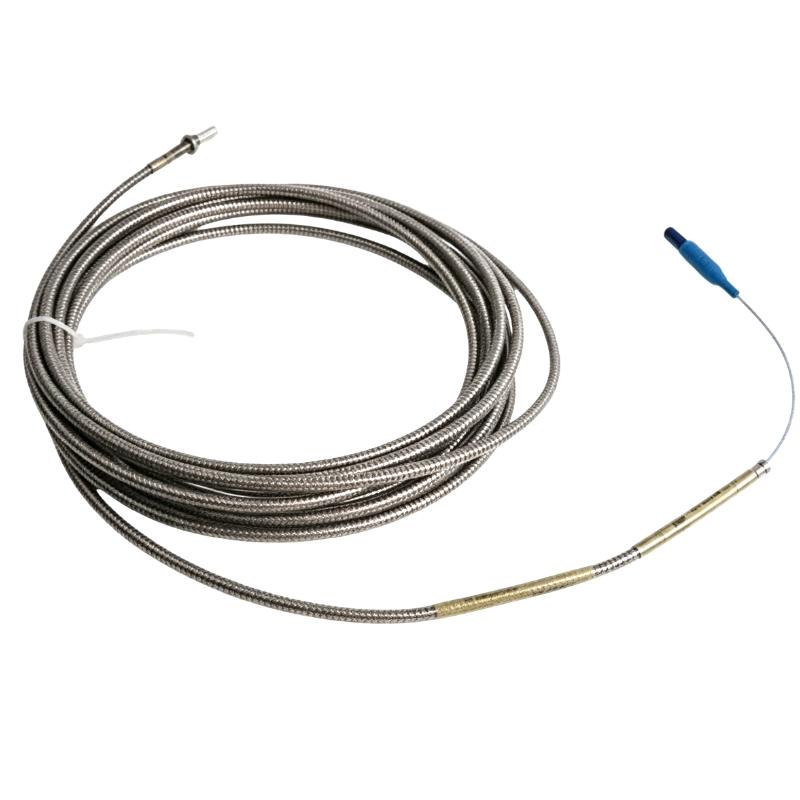

The Bently Nevada 330904-08-15-10-02-05 3300 NSv Proximity Probe is a precision monitoring component developed for industries requiring dependable shaft measurement and reliable machinery protection. It combines compact sensor construction with advanced eddy current technology to deliver accurate vibration and displacement monitoring.

The 3300 NSv platform provides an effective solution for applications where space efficiency, installation flexibility, and measurement reliability are important. The 1-meter total length configuration allows integration into a wide range of rotating equipment monitoring arrangements.

Designed for demanding industrial environments, the 330904-08-15-10-02-05 helps improve equipment condition analysis, reduce unexpected downtime, and support efficient maintenance strategies for critical assets.

Technical Specifications

Specification	Details
Product Brand	Bently Nevada
Model Number	330904-08-15-10-02-05
Product Series	3300 NSv
Module Type	Metric Proximity Probe
Sensor Technology	Eddy Current Proximity Sensing
Probe Type	NSv Compact Proximity Probe
Total Length	1 meter
Measurement Function	Shaft Vibration and Position Monitoring
Application	Rotating Machinery Condition Monitoring
Compatible System	Bently Nevada 3300 NSv Monitoring System
Installation Method	Non-Contact Probe Mounting
Cable Configuration	Integrated 1-Meter Cable
Dimensions	Approx. 8 mm probe diameter × 1000 mm total length
Weight	0.15 kg (0.33 lb)

Recommended Related Models

Model	Description
Bently Nevada 330904-00-10-10-01-05	3300 NSv Metric Proximity Probe with 1-meter configuration
Bently Nevada 330904-00-07-10-01-05	3300 NSv Metric Proximity Probe for industrial monitoring
Bently Nevada 330903-01-07-10-12-05	3300 NSv Metric Proximity Probe with 1-meter length
Bently Nevada 330180-50-00	Extension Cable for Bently Nevada proximity probe systems

Popular Related Models

Model	Description
Bently Nevada 3300/03-01-00	3300 Power Supply Module for machinery monitoring rack systems
Bently Nevada 3300/16-12-01-00	Dual Vibration Monitor Module
Bently Nevada 3300/20-12-01-01	Dual Thrust Position Monitor Module
Bently Nevada 3500/42M	Proximity Monitor Module for advanced machinery protection

Applications in Industrial Rotating Machinery Monitoring

The Bently Nevada 330904-08-15-10-02-05 3300 NSv Proximity Probe is designed for accurate shaft vibration and displacement measurement in industrial rotating machinery applications where reliable performance, flexible installation, and continuous monitoring are required. As part of the 3300 NSv proximity probe family, this metric sensor provides dependable non-contact measurement for machinery protection and condition monitoring systems.

This proximity probe is suitable for critical equipment including turbines, compressors, pumps, motors, and auxiliary rotating machines where precise shaft position feedback is essential. The 1-meter total length configuration provides additional installation flexibility for equipment layouts requiring extended sensor placement while maintaining stable measurement performance.

Utilizing proven eddy current sensing technology, the 330904-08-15-10-02-05 delivers consistent vibration and displacement signals, supporting predictive maintenance programs, improving machine diagnostics, and helping operators maintain reliable equipment operation.

Product Features and Performance Advantages

Feature	Description
3300 NSv Proximity Technology	Provides reliable shaft monitoring for industrial rotating equipment
Metric Sensor Configuration	Designed for metric-based machinery monitoring applications
1-Meter Total Length	Supports flexible installation across various equipment layouts
Non-Contact Measurement Design	Enables continuous monitoring without mechanical contact
Eddy Current Sensing Technology	Delivers accurate and repeatable shaft displacement measurement
Machinery Protection Support	Helps identify operating changes and improve maintenance planning

Technical FAQs

1. What is the main function of the Bently Nevada 330904-08-15-10-02-05?
It is designed to measure shaft vibration and displacement in rotating machinery monitoring systems.

2. How does the 3300 NSv proximity probe measure shaft movement?
It uses eddy current sensing technology to detect variations in the distance between the probe tip and the rotating shaft.

3. Why is a 1-meter proximity probe configuration useful?
It provides additional flexibility when the installation location requires greater distance between the sensor and monitoring equipment.

4. What equipment can use this proximity probe?
It is commonly used with turbines, compressors, pumps, motors, and other industrial rotating machinery.

5. Does the probe contact the rotating shaft during operation?
No. It performs measurement through non-contact electromagnetic sensing technology.

6. What type of signals does this sensor provide?
It provides shaft vibration and relative position signals for compatible machinery monitoring systems.

7. How does the probe support predictive maintenance?
It provides continuous condition data that helps detect abnormal shaft movement and equipment performance changes.

8. What factors affect proximity probe measurement accuracy?
Installation quality, probe gap adjustment, calibration, shaft surface condition, and system configuration influence measurement results.

9. Can this proximity probe be used for continuous monitoring?
Yes. It is designed for permanent installation in industrial machinery condition monitoring systems.

10. What benefits does eddy current sensing technology provide?
It offers accurate, stable, and fast-response measurement without physical wear caused by mechanical contact.
