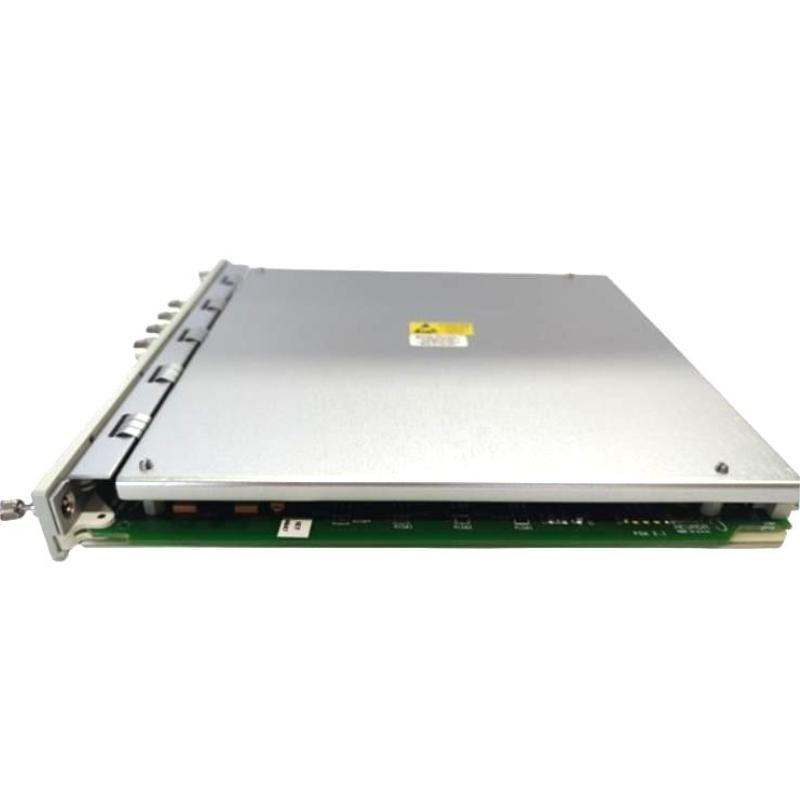

Bently Nevada 3500/15-05-00-00 Power Supply Module

Applications

• 3500 Machinery Protection System Power Management:
The Bently Nevada 3500/15-05-00-00 Power Supply Module provides universal AC power conversion for 3500 Series machinery protection racks, delivering stable operating power for monitoring, communication, and protection modules.

• Industrial Facilities with Variable AC Power Sources:
Supporting an input range of 85 to 264 Vac, this module is ideal for facilities operating under different regional power standards without requiring multiple power supply versions.

• Critical Rotating Equipment Protection:
The module supplies dependable power for turbine, compressor, generator, motor, and pump monitoring systems where continuous machinery protection is essential.

• Power Generation and Process Industries:
Suitable for power plants, refineries, petrochemical facilities, mining operations, and manufacturing plants requiring highly reliable rack-level power distribution.

Key Advantages

• Universal AC Input Design:
The module accepts a wide input voltage range of 85–264 Vac rms, allowing installation in both low- and high-voltage AC power systems without hardware changes.

• Stable Regulated Power Output:
It converts incoming AC power into regulated voltages required by all compatible Bently Nevada 3500 modules, supporting continuous machinery protection.

• Flexible Rack Configuration:
Configured with a Universal AC supply in the upper slot and no secondary supply installed, making it suitable for single-power applications while allowing future redundancy upgrades.

• Simplified Global Deployment:
Universal input capability reduces inventory requirements by supporting multiple international voltage standards with a single module.

• Industrial-Grade Reliability:
Designed for continuous operation in demanding industrial environments, the module provides dependable long-term performance with minimal maintenance.

Technical FAQs

1. What is the primary function of the Bently Nevada 3500/15-05-00-00 Power Supply Module?
The module converts universal AC input power into regulated operating voltages for the Bently Nevada 3500 Machinery Protection System.

2. Which systems are compatible with this module?
It is designed exclusively for Bently Nevada 3500 Series Machinery Protection System racks.

3. What AC input voltage range does this module support?
The universal AC input accepts 85 to 264 Vac rms at 47 to 63 Hz.

4. What does the "05" option represent?
The "05" configuration designates the Universal AC power supply version for the upper power supply position.

5. What does the "00" option indicate?
The "00" option specifies that no secondary power supply is installed in the lower power supply position.

6. Can this module operate with redundant power supplies?
Yes. The 3500 rack supports installation of a second compatible power supply module for redundant operation.

7. Does this module perform machinery monitoring functions?
No. It supplies regulated electrical power only and does not process vibration, position, or temperature signals.

8. Which modules receive power from this supply?
It powers compatible monitor modules, relay modules, communication modules, interface modules, and other supported 3500 rack components.

9. What should be verified before installation?
Engineers should confirm rack compatibility, available AC input voltage, grounding requirements, and overall power system configuration.

10. Can the 3500/15-05-00-00 replace legacy AC power supply modules?
Yes, provided the rack configuration and system requirements are compatible with the Universal AC power supply option.
