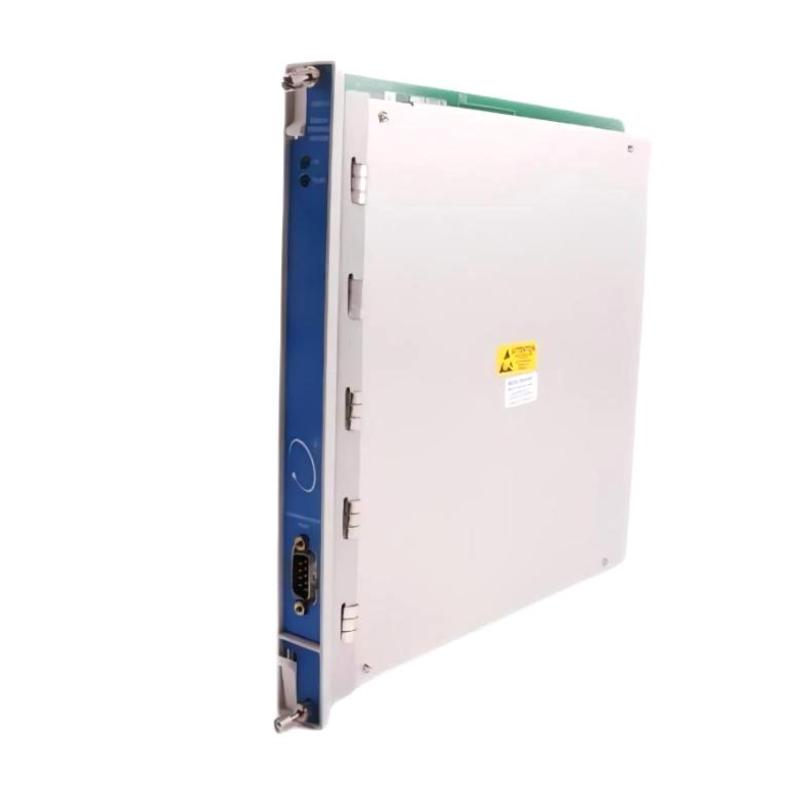

Bently Nevada 3500/15-05-00-05 Power Supply Module

Applications

• 3500 Machinery Protection System Power Management:
The Bently Nevada 3500/15-05-00-05 Power Supply Module delivers reliable universal AC power conversion for the 3500 Series Machinery Protection System, providing continuous power for monitoring, communication, and protection modules in critical industrial applications.

• Industrial Facilities with Worldwide AC Power Standards:
Its universal AC input capability allows installation across facilities operating with different regional power systems, making it an ideal choice for multinational industrial projects.

• Rotating Equipment Condition Monitoring:
The module supports machinery protection systems used on turbines, compressors, generators, pumps, and motors where uninterrupted monitoring is essential for operational reliability.

• Continuous Process Industries:
Widely deployed in power generation, oil & gas, petrochemical, mining, and manufacturing facilities that require dependable rack-level power for mission-critical monitoring systems.

Key Advantages

• Universal AC Input Range:
The module accepts 85–264 Vac rms at 47–63 Hz, allowing flexible deployment without changing hardware for different supply voltages.

• Reliable Regulated Power Output:
It converts incoming AC voltage into stable internal power required by compatible Bently Nevada 3500 modules, ensuring consistent machinery protection performance.

• Agency Approval Configuration:
The -05 approval option designates the marine certification version, making this model suitable for approved marine and offshore applications where required.

• Supports Future Redundant Power Expansion:
Compatible 3500 racks can accommodate a second power supply module, improving overall system availability and simplifying maintenance planning.

• Industrial-Grade Modular Design:
Its compact half-height construction allows quick installation, straightforward replacement, and dependable long-term operation in demanding environments.

Technical FAQs

1. What is the primary function of the Bently Nevada 3500/15-05-00-05 Power Supply Module?
The module converts universal AC input power into regulated operating voltages for compatible Bently Nevada 3500 Series monitoring modules.

2. Which systems are compatible with this module?
It is designed exclusively for the Bently Nevada 3500 Machinery Protection System.

3. What AC input voltage does this module support?
The module accepts 85–264 Vac rms with an operating frequency of 47–63 Hz.

4. What does the first "05" indicate in the model number?
It identifies the Universal AC power supply configuration for the upper power supply position.

5. What does the second "00" indicate?
It specifies that no secondary power supply is installed in the lower power supply position.

6. What does the final "-05" approval option represent?
The "-05" option designates the marine approval configuration for installations requiring marine certification.

7. Can this module operate in redundant power configurations?
Yes. Compatible 3500 racks support installation of a secondary power supply module to provide backup operation.

8. Does this module perform machinery monitoring or signal processing?
No. It functions solely as a regulated power supply for the 3500 rack and does not process monitoring signals.

9. What should be verified before installation?
Engineers should verify rack compatibility, available AC input voltage, grounding practices, approval requirements, and overall system configuration.

10. Can this model replace other 3500/15 Universal AC power supplies?
Replacement compatibility depends on the required agency approval option, rack configuration, and plant installation requirements.
