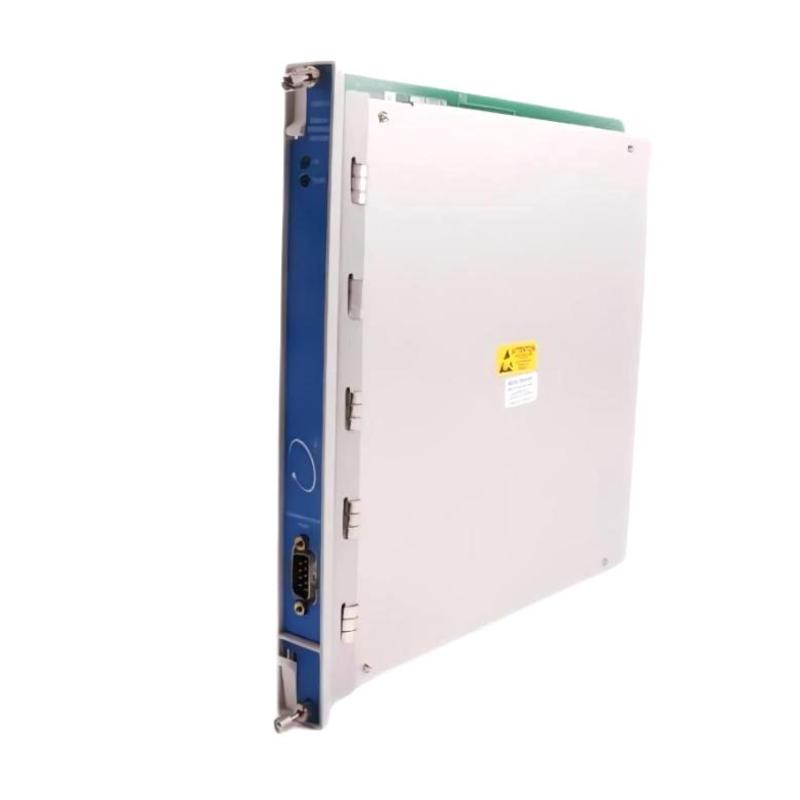

Bently Nevada 3500/15-05-05-00 Power Supply Module

Applications

• 3500 Machinery Protection System Power Distribution:
The Bently Nevada 3500/15-05-05-00 Power Supply Module delivers reliable universal AC power for 3500 Series machinery protection systems, ensuring continuous operation of monitoring, communication, and diagnostic modules in critical industrial environments.

• Global Industrial Power Networks:
Its universal AC input design makes the module suitable for installations operating under different international voltage standards, simplifying system deployment and inventory management.

• Critical Rotating Machinery Monitoring:
The module provides dependable rack power for turbines, compressors, generators, pumps, motors, and other high-value rotating assets requiring uninterrupted condition monitoring.

• Continuous Process Industries:
Ideal for applications in oil & gas, petrochemical, power generation, mining, pulp & paper, and heavy manufacturing where high system availability is essential.

Key Advantages

• Dual Universal AC Configuration:
Both the upper and lower power supply positions utilize Universal AC input, providing a flexible solution for dual-power installations requiring worldwide AC voltage compatibility.

• Wide Universal Input Range:
Supports 85–264 Vac rms at 47–63 Hz, allowing operation across a broad range of industrial AC power systems without additional voltage conversion.

• Supports Redundant Power Operation:
When installed in a dual-power configuration, one supply serves as the primary source while the second automatically functions as backup, maximizing rack availability during maintenance or power interruptions.

• Optimized for High System Reliability:
The module delivers regulated internal voltages required by all compatible 3500 monitoring modules, helping maintain stable long-term machinery protection performance.

• Compact Modular Construction:
Its half-height design enables quick installation, simplified servicing, and efficient use of rack space within the 3500 Machinery Protection System.

Technical FAQs

1. What is the primary function of the Bently Nevada 3500/15-05-05-00 Power Supply Module?
It converts universal AC input power into regulated voltages required by compatible Bently Nevada 3500 Series modules.

2. Which Bently Nevada systems are compatible with this module?
The module is designed exclusively for the Bently Nevada 3500 Machinery Protection System.

3. What AC input voltage range does this module support?
It accepts 85–264 Vac rms with an operating frequency of 47–63 Hz.

4. What does the first "05" indicate in the model number?
It specifies a Universal AC power supply installed in the upper power supply position.

5. What does the second "05" indicate?
It specifies a Universal AC power supply installed in the lower power supply position, creating a dual Universal AC configuration.

6. Can this module provide redundant power capability?
Yes. The dual Universal AC configuration supports primary and backup power operation to improve overall rack availability.

7. Does this module perform machinery monitoring functions?
No. It serves solely as a regulated power supply and does not process vibration, position, or temperature signals.

8. Which modules receive power from this supply?
It supplies regulated power to compatible monitor modules, communication modules, relay modules, interface modules, and other installed 3500 rack components.

9. What should engineers verify before installation?
They should confirm rack compatibility, available AC input voltage, grounding requirements, redundancy configuration, and overall system design.

10. Can the 3500/15-05-05-00 replace other 3500/15 power supply versions?
Replacement depends on the required power supply configuration, approval option, and compatibility with the existing 3500 rack.
