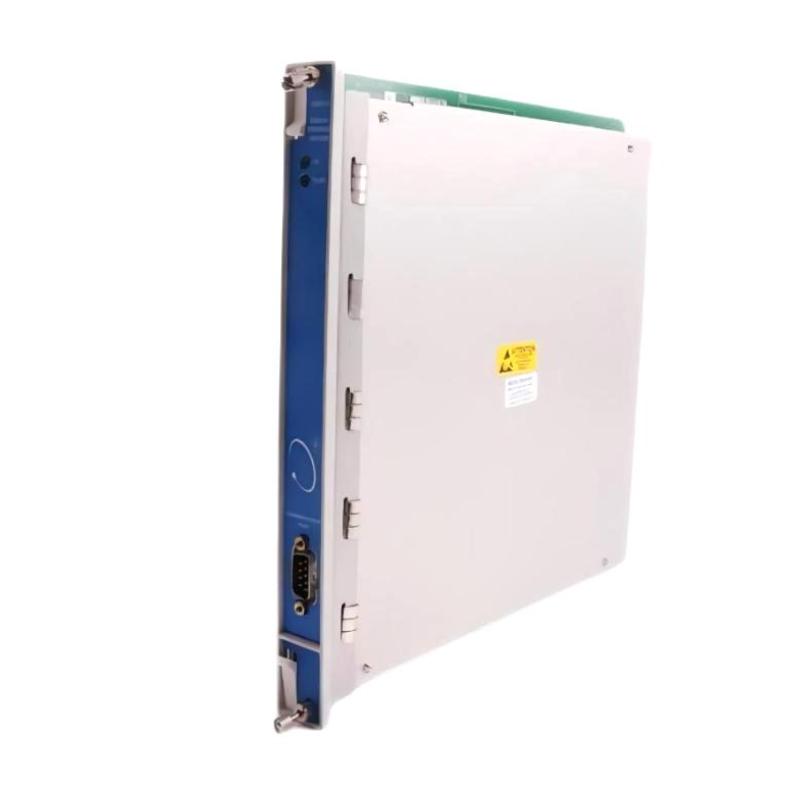

Bently Nevada 3500/15-05-05-00 Power Supply Module

Applications

• 3500 Machinery Protection System Power Distribution:
The Bently Nevada 3500/15-05-05-00 Power Supply Module provides dependable Universal AC power conversion for Bently Nevada 3500 Series racks, ensuring continuous operation of machinery protection and condition monitoring systems in demanding industrial environments.

• Global Industrial Power Networks:
Designed for worldwide installations, the module supports facilities operating under different AC voltage standards, making it an ideal choice for multinational manufacturing, power generation, and process industries.

• Critical Rotating Equipment Monitoring:
The module delivers stable rack power for turbines, compressors, pumps, generators, motors, and other rotating machinery where uninterrupted monitoring is essential for asset protection.

• Redundant High-Availability Systems:
Configured with dual Universal AC power supplies, it supports applications requiring maximum uptime by providing primary and backup power capability within the same 3500 rack.

Key Advantages

• Dual Universal AC Power Configuration:
Both the upper and lower power supply positions utilize Universal AC inputs, providing maximum flexibility and redundancy for industrial machinery protection systems.

• Wide Input Voltage Compatibility:
Supports 85–264 Vac rms at 47–63 Hz, allowing deployment across virtually all industrial AC power systems without changing hardware.

• Automatic Backup Power Capability:
When installed as a dual power configuration, the lower supply operates as the primary source while the upper supply serves as the standby backup, minimizing downtime during power interruptions or maintenance.

• Reliable Rack Power Distribution:
Converts incoming AC power into regulated voltages required by compatible Bently Nevada 3500 monitoring, communication, and interface modules for stable long-term operation.

• Compact Industrial Design:
Its half-height modular construction enables easy installation, fast replacement, and efficient maintenance while maximizing available rack space.

Technical FAQs

1. What is the primary function of the Bently Nevada 3500/15-05-05-00 Power Supply Module?
The module converts Universal AC input power into regulated voltages required to operate compatible Bently Nevada 3500 Series modules.

2. Which Bently Nevada systems support this module?
It is designed exclusively for the Bently Nevada 3500 Machinery Protection System.

3. What AC input voltage does the module accept?
The module supports 85–264 Vac rms with an operating frequency of 47–63 Hz.

4. What does the first "05" represent in the model number?
It identifies a Universal AC power supply installed in the upper power supply position.

5. What does the second "05" represent?
It specifies a second Universal AC power supply installed in the lower power supply position, creating a fully redundant dual-power configuration.

6. Does this module support redundant power operation?
Yes. The dual Universal AC configuration provides automatic primary and backup power capability for improved system availability.

7. Does this module perform vibration monitoring or signal processing?
No. It functions exclusively as a regulated rack power supply and does not process monitoring signals.

8. Which modules receive power from this supply?
It supplies regulated power to compatible monitor modules, relay modules, communication modules, interface modules, and other installed 3500 rack components.

9. What should engineers verify before installation?
They should confirm rack compatibility, AC input voltage, grounding requirements, redundancy configuration, and overall system design.

10. Can the 3500/15-05-05-00 replace other 3500/15 power supply versions?
Replacement compatibility depends on the existing rack configuration, required input voltage type, and agency approval requirements.
