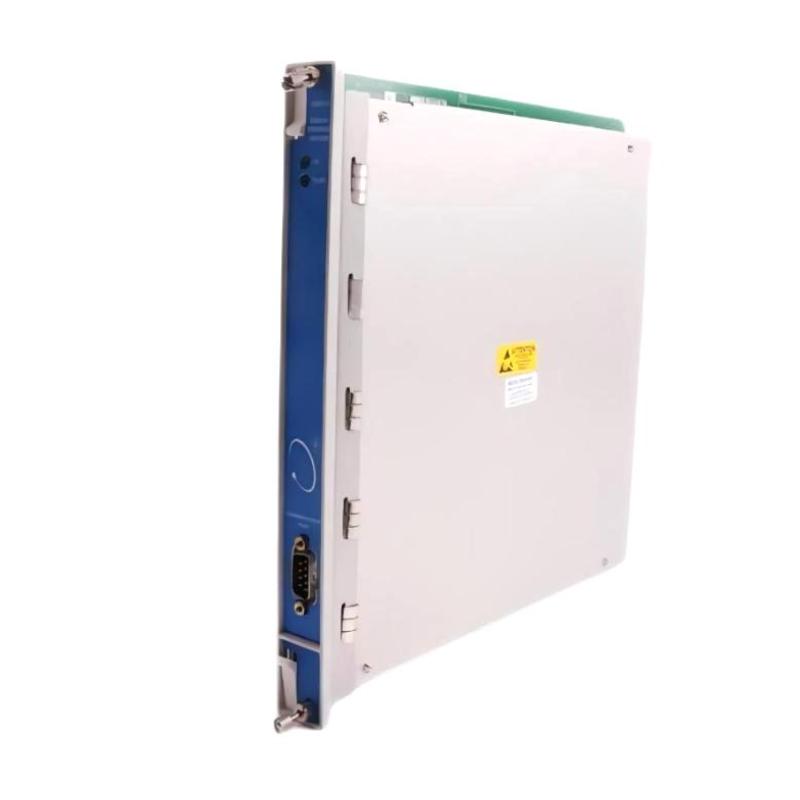

Bently Nevada 3500/15-05-05-01 Power Supply Module

Applications

• Reliable Power Source for 3500 Protection Systems:
The Bently Nevada 3500/15-05-05-01 Power Supply Module provides stable Universal AC power conversion for the 3500 Machinery Protection System, ensuring continuous operation of monitoring and protection modules in mission-critical applications.

• Hazardous Industrial Environments:
With CSA / NRTL / C Class 1, Division 2 approval, this module is well suited for machinery protection systems installed in hazardous industrial areas such as refineries, gas processing plants, and chemical facilities.

• Worldwide Industrial Installations:
Its universal AC input supports global power standards, allowing a single module type to be deployed across international facilities with minimal engineering changes.

• High-Availability Machinery Monitoring:
Designed for critical rotating assets including turbines, compressors, pumps, generators, and motors, the module supports uninterrupted rack operation for continuous equipment protection.

Key Advantages

• Dual Universal AC Configuration:
Both the upper and lower power supply positions are configured for Universal AC operation, enabling highly reliable redundant power arrangements.

• CSA Class I, Division 2 Certified:
The -01 approval option provides CSA / NRTL / C certification for Class I, Division 2 hazardous locations, making it suitable for certified industrial installations.

• Wide Operating Voltage Range:
Accepts 85–264 Vac rms at 47–63 Hz, eliminating the need for different power supply versions across regional electrical systems.

• Supports Automatic Redundant Operation:
When installed as a dual-power configuration, one supply serves as the primary source while the second remains available as backup, improving overall system uptime.

• Engineered for Continuous Industrial Service:
Its compact half-height construction and robust design provide dependable long-term performance while simplifying installation and maintenance.

Technical FAQs

1. What is the primary function of the Bently Nevada 3500/15-05-05-01 Power Supply Module?
It converts Universal AC input power into regulated voltages required by compatible Bently Nevada 3500 Machinery Protection System modules.

2. Which systems are compatible with this module?
The module is designed exclusively for Bently Nevada 3500 Series Machinery Protection System racks.

3. What AC input voltage does this module support?
It accepts 85–264 Vac rms with an operating frequency of 47–63 Hz.

4. What does the first "05" represent in the model number?
It specifies a Universal AC power supply installed in the upper power supply position.

5. What does the second "05" represent?
It specifies a Universal AC power supply installed in the lower power supply position, providing a dual Universal AC configuration.

6. What does the "-01" suffix indicate?
The "-01" suffix identifies the CSA / NRTL / C Class I, Division 2 hazardous-area approval option.

7. Does this module monitor vibration or process signals?
No. It functions solely as a power supply and does not perform signal acquisition or machinery monitoring.

8. Can this module be used in redundant power configurations?
Yes. The dual Universal AC configuration supports automatic primary and backup power operation for improved rack availability.

9. What should be checked before replacing this module?
Verify rack compatibility, input voltage, hazardous-area approval requirements, grounding, and overall system configuration.

10. Can this model replace other 3500/15 power supply modules?
Replacement depends on matching the required input power type, rack configuration, and agency approval specified for the installation.
