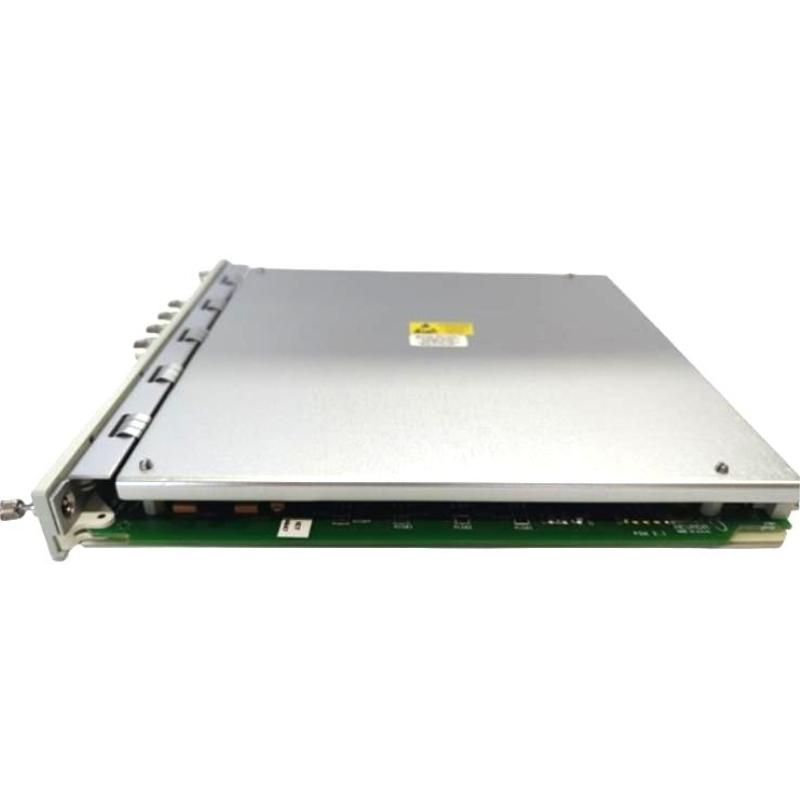

Bently Nevada 3500/15-05-05-CN Power Supply Module

Applications

• 3500 Machinery Protection System Power Distribution:
The Bently Nevada 3500/15-05-05-CN Power Supply Module provides dependable Universal AC power conversion for Bently Nevada 3500 Series racks, ensuring uninterrupted operation of machinery protection, condition monitoring, and communication modules in demanding industrial environments.

• Industrial Facilities Requiring China-Specific Certification:
The CN approval configuration is intended for installations requiring China-specific certification, making the module suitable for industrial projects that must comply with regional approval requirements.

• Critical Rotating Equipment Monitoring:
The module delivers reliable rack power for turbines, compressors, generators, pumps, and large motors where continuous machinery protection is essential for maximizing equipment availability.

• High-Availability Process Control Systems:
Ideal for power generation, petrochemical, oil & gas, mining, and heavy manufacturing facilities requiring redundant power architecture for continuous machinery monitoring.

Key Advantages

• Dual Universal AC Power Configuration:
Both the upper and lower power supply positions utilize Universal AC inputs, providing a fully redundant power arrangement for improved system reliability.

• Wide Universal Input Voltage:
Supports 85–264 Vac rms at 47–63 Hz, allowing installation across global industrial power systems without requiring voltage-specific hardware.

• China-Specific Approval Option:
The CN suffix identifies the China-specific approval configuration, supporting installations where regional certification is required.

• Automatic Redundant Power Capability:
The dual power supply configuration enables primary and backup power operation, helping maintain continuous rack performance during maintenance or power source interruptions.

• Designed for Continuous Industrial Operation:
Its rugged half-height construction offers dependable long-term performance while simplifying installation, maintenance, and future system expansion.

Technical FAQs

1. What is the primary function of the Bently Nevada 3500/15-05-05-CN Power Supply Module?
It converts Universal AC input power into regulated operating voltages required by compatible Bently Nevada 3500 Machinery Protection System modules.

2. Which Bently Nevada systems are compatible with this module?
The module is designed exclusively for Bently Nevada 3500 Series Machinery Protection System racks.

3. What AC input voltage range does this module support?
It accepts 85–264 Vac rms with an operating frequency of 47–63 Hz.

4. What does the first "05" indicate in the model number?
It specifies a Universal AC power supply installed in the upper power supply position.

5. What does the second "05" indicate?
It specifies a Universal AC power supply installed in the lower power supply position, creating a dual Universal AC redundant configuration.

6. What does the "CN" suffix represent?
The CN suffix identifies the China-specific approval option for installations requiring regional certification.

7. Does this module monitor vibration or process variables?
No. It functions solely as a rack power supply and does not perform machinery monitoring or signal processing.

8. Can this module support redundant power operation?
Yes. The dual Universal AC configuration provides automatic primary and backup power capability to improve system availability.

9. What should engineers verify before installation?
They should verify rack compatibility, AC input voltage, grounding requirements, regional approval requirements, and overall power system configuration.

10. Can the 3500/15-05-05-CN replace other 3500/15 power supply modules?
Replacement compatibility depends on the required power input type, rack configuration, and approval option specified for the installation.
