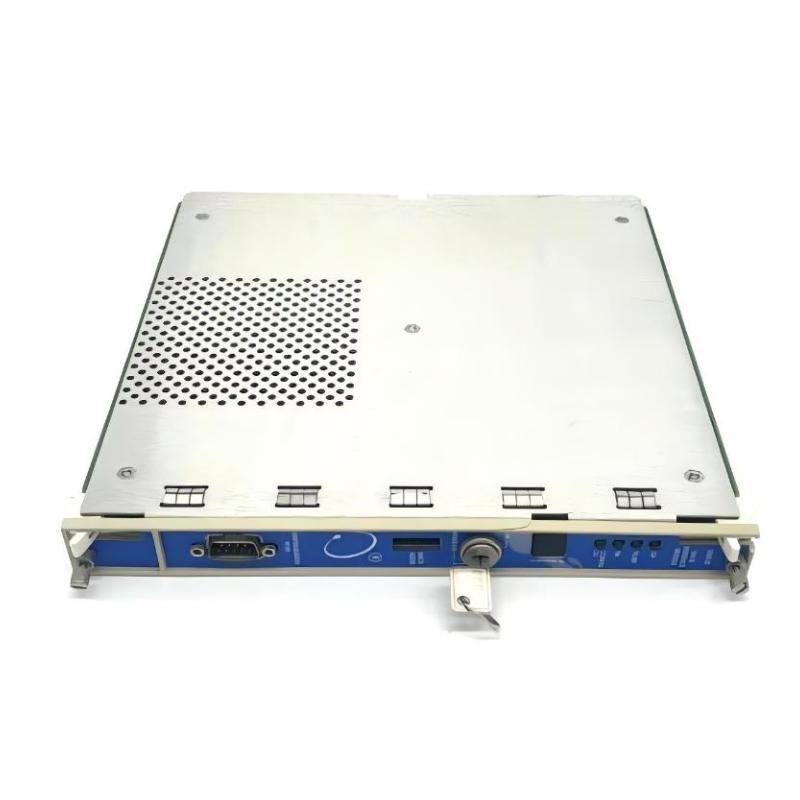

Bently Nevada 3500/20-01-01-00 Rack Interface Module

Where It Excels in Industrial Use

• 3500 Machinery Protection System Communication Management:
The Bently Nevada 3500/20-01-01-00 Rack Interface Module (RIM) serves as the primary communication interface between the 3500 rack and external configuration or data collection systems, enabling efficient rack setup, monitoring information retrieval, and system integration.

• Industrial Asset Monitoring Networks:
Designed for use in rotating machinery protection applications, the module supports communication between Bently Nevada monitoring systems and external communication processors used for advanced condition monitoring strategies.

• Large-Scale Process Plants:
Suitable for oil & gas, petrochemical, power generation, and manufacturing facilities where centralized machinery information access and reliable system communication are required.

• Continuous Operation Machinery Protection:
The module provides a dependable communication pathway for turbines, compressors, pumps, and generators monitored by the Bently Nevada 3500 platform.

Key Strengths at a Glance

• Primary Rack Communication Interface:
Provides the main interface for configuring the 3500 rack and retrieving machinery information through Bently Nevada communication protocols.

• Standard RIM Configuration:
The -01 option identifies the standard Rack Interface Module configuration designed for conventional 3500 monitoring applications.

• RS232/RS422 Communication Support:
The -01-01 configuration includes the RS232/RS422 I/O module, allowing flexible connection with compatible external systems and communication processors.

• Easy System Integration:
Supports connection with external communication processors such as TDXnet, TDIX, and DDIX for expanded machinery data management capabilities.

• Reliable Modular Architecture:
Designed as a half-height 3500 rack module, it provides straightforward installation, replacement, and maintenance within existing protection system architectures.

Technical FAQs

1. What is the main function of the Bently Nevada 3500/20-01-01-00 Rack Interface Module?
It provides the primary communication interface for configuring the 3500 rack and retrieving machinery monitoring information.

2. Is the 3500/20-01-01-00 part of the critical monitoring path?
No. The Rack Interface Module provides communication and configuration functions but is not part of the primary protection signal processing path.

3. Where is the RIM installed in a 3500 rack?
The module must be installed in slot 1 of the 3500 rack, next to the power supply modules.

4. What type of communication does this model support?
This configuration uses an RS232/RS422 I/O module for communication with compatible external systems.

5. Which communication processors can connect with this module?
It supports compatible Bently Nevada external communication processors including TDXnet, TDIX, and DDIX systems.

6. Does the module perform vibration signal processing?
No. Vibration and machinery condition signals are processed by dedicated monitor modules installed in the 3500 rack.

7. Can one 3500 rack operate without a Rack Interface Module?
No. A Rack Interface Module is required for each standard 3500 rack configuration.

8. What configuration software is used with this module?
The module works with Bently Nevada 3500 configuration tools for rack setup and system management.

9. Can this module be used in TMR applications?
No. Triple Modular Redundant systems require the dedicated TMR version of the Rack Interface Module.

10. What should be checked before replacing this module?
Verify rack compatibility, I/O configuration, communication requirements, and the existing 3500 system architecture before replacement.
