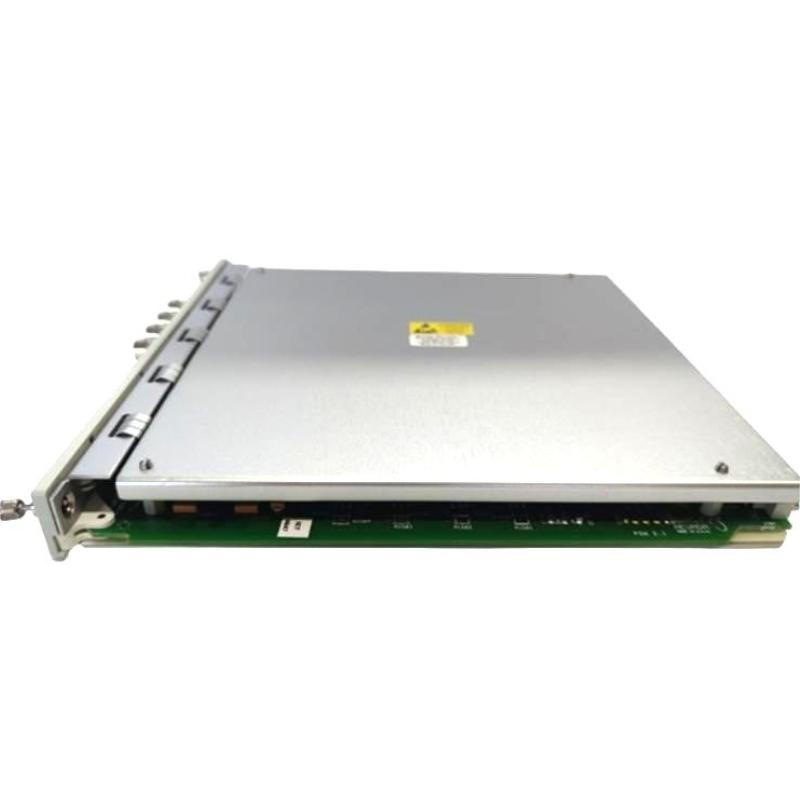

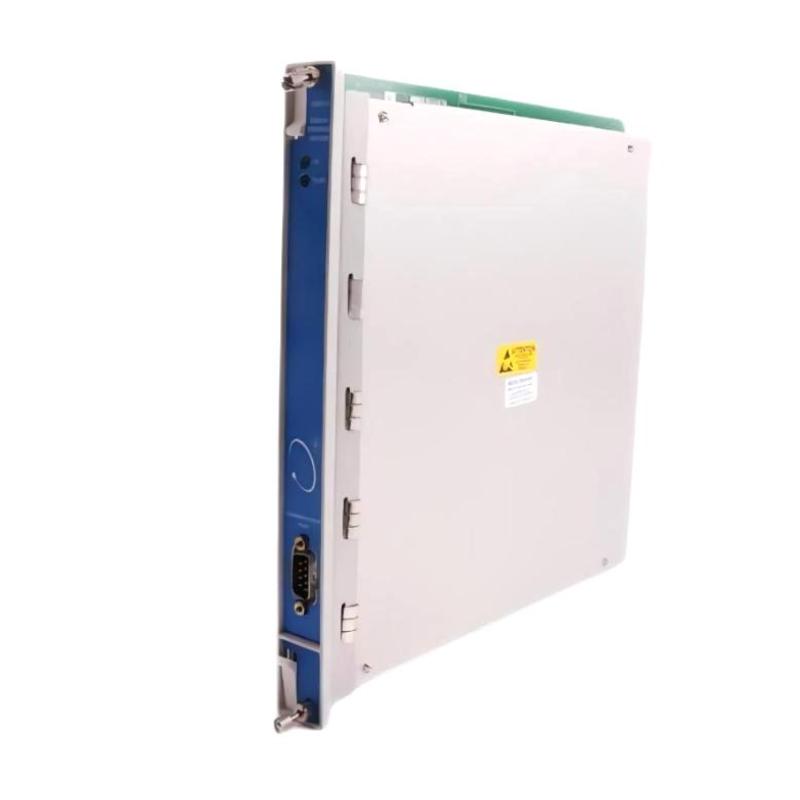

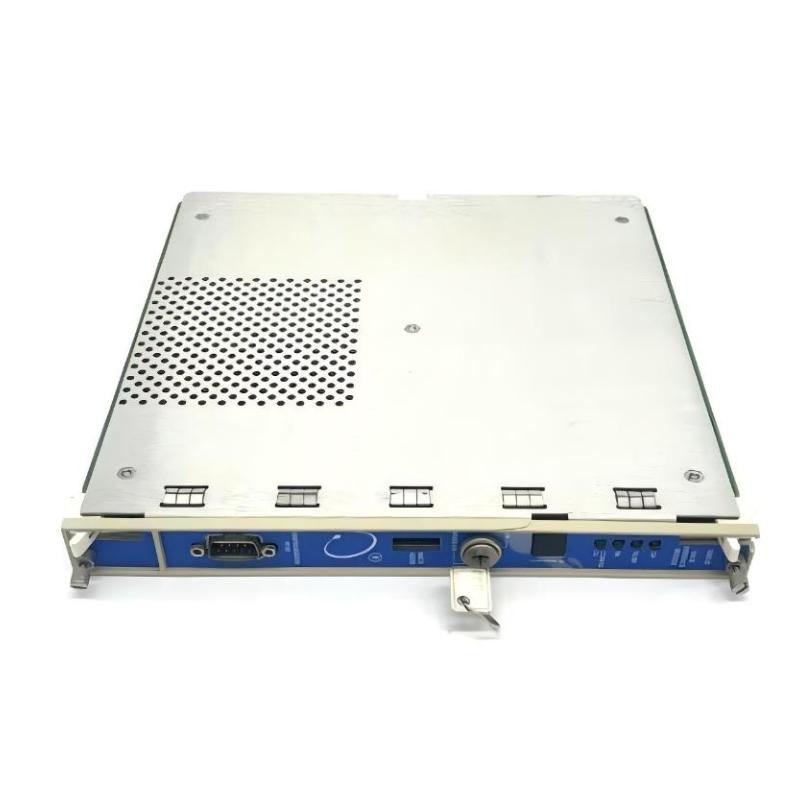

Bently Nevada 3500/20-01-02-00 Rack Interface Module

Where It Excels in Industrial Use

• 3500 Machinery Protection System Communication Interface:
The Bently Nevada 3500/20-01-02-00 Rack Interface Module (RIM) acts as the primary communication gateway between the 3500 rack and external configuration or data acquisition systems, enabling efficient access to machinery monitoring information and rack configuration data.

• Industrial Condition Monitoring Networks:
Designed for standard 3500 monitoring applications, this module supports reliable communication between machinery protection systems and external communication processors used in centralized asset management environments.

• Power Generation and Process Industries:
The module is widely suited for turbines, compressors, pumps, generators, and other critical rotating equipment where continuous monitoring data exchange is required.

• Integrated Plant Monitoring Architectures:
With RS232/RS422 communication capability, the module provides a practical connection solution for engineering workstations and compatible Bently Nevada communication devices.

Key Strengths at a Glance

• Standard Rack Interface Function:
Provides the main interface for configuring the 3500 rack and retrieving machinery monitoring information through Bently Nevada communication protocols.

• RS232/RS422 Communication Support:
The -02 option includes an I/O module with RS232/RS422 interface capability, allowing flexible serial communication with compatible external systems.

• Optimized Rack Integration:
Designed for installation in slot 1 of the 3500 rack, next to the power supply modules, ensuring proper system communication architecture.

• Reliable Data Access:
Enables engineers to retrieve rack information, configure monitoring parameters, and connect external communication processors such as TDXnet, TDIX, and DDIX systems.

• Industrial Modular Design:
The half-height module format allows convenient installation, replacement, and maintenance within existing Bently Nevada 3500 system configurations.

Technical FAQs

1. What is the primary function of the Bently Nevada 3500/20-01-02-00 Rack Interface Module?
It provides the primary communication interface for configuring the 3500 rack and retrieving machinery monitoring information.

2. What type of I/O interface does this model provide?
This model includes an RS232/RS422 communication I/O module for serial communication with compatible external devices.

3. Is the Rack Interface Module part of the critical monitoring path?
No. The RIM provides communication and configuration functions but does not affect the normal protection operation of monitoring modules.

4. Where should this module be installed in the 3500 rack?
It must be installed in slot 1 of the rack, directly next to the power supply modules.

5. What communication processors can work with this module?
It supports compatible Bently Nevada communication processors including TDXnet, TDIX, and DDIX systems.

6. Does this module process vibration signals?
No. Vibration, displacement, and other machinery signals are processed by dedicated monitor modules installed in the 3500 rack.

7. What does the "01" option represent in the model number?
The first option indicates a Standard Rack Interface Module configuration for standard monitoring applications.

8. What does the "02" option represent in the model number?
The second option identifies the RS232/RS422 communication I/O module configuration.

9. What does the "-00" suffix indicate?
The suffix indicates that no additional agency approval option is included.

10. Can this module be directly replaced by other 3500 communication modules?
Replacement depends on rack configuration, communication requirements, and compatibility with the installed 3500 system architecture.
