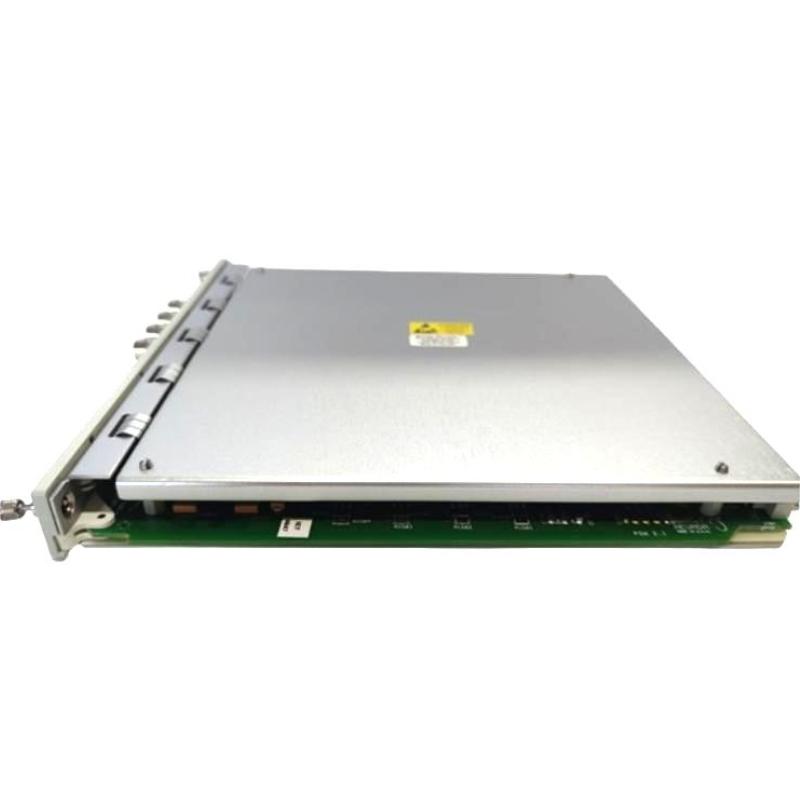

Bently Nevada 3500/22-01-00 Transient Data Interface Module

Where It Excels in Industrial Use

• 3500 Machinery Protection System Data Integration:
The Bently Nevada 3500/22-01-00 Transient Data Interface Module provides a communication bridge between the 3500 monitoring system and compatible configuration or condition monitoring software, enabling efficient collection and transfer of machinery operating data.

• Continuous Rotating Equipment Monitoring:
Designed for turbines, compressors, generators, pumps, and other critical rotating assets, the module supports centralized access to machinery status information for advanced reliability programs.

• Plant-Wide Condition Monitoring Networks:
The module helps integrate 3500 rack data with higher-level monitoring platforms, allowing engineers to analyze machine health trends and improve predictive maintenance strategies.

• Industrial Asset Protection Applications:
Suitable for power generation, oil & gas, petrochemical, and heavy industrial facilities requiring reliable communication between protection hardware and monitoring software.

Key Strengths at a Glance

• Advanced Rack Data Interface:
Functions as the communication interface for the 3500 rack, supporting configuration access and machinery data transmission between monitoring hardware and software systems.

• Transient Data Collection Capability:
Supports collection of steady-state and transient operating information when integrated with compatible 3500 monitoring modules, helping capture important machine behavior changes.

• Integrated Communication Architecture:
Combines rack interface functionality with communication processor capabilities, reducing the need for additional external communication hardware in many installations.

• Reliable 3500 Rack Integration:
Installed in the rack interface position, the module provides dependable communication performance while maintaining the modular design philosophy of the 3500 platform.

• Supports Predictive Maintenance Strategies:
Provides access to valuable machinery information used for condition assessment, diagnostics, and long-term equipment reliability improvement.

Technical FAQs

1. What is the main function of the Bently Nevada 3500/22-01-00 Transient Data Interface Module?
It provides communication and data interface functions between the 3500 monitoring system and compatible configuration or condition monitoring software.

2. Is the 3500/22-01-00 part of the machinery protection signal path?
No. The module provides communication and data collection functions but does not directly control the primary protection logic of monitoring modules.

3. Where is this module installed in a 3500 rack?
It is installed in the rack interface position adjacent to the power supply modules.

4. What type of data can this module handle?
It can support rack information, monitoring status data, and transient-related machinery information when used with compatible system configurations.

5. Which software platforms can communicate with this module?
It is designed for integration with compatible Bently Nevada configuration and condition monitoring software platforms.

6. Does the module replace the function of monitor modules?
No. Dedicated monitor modules such as vibration, position, and temperature monitors continue to perform signal measurement and protection functions.

7. Can this module collect vibration waveform information?
Waveform and transient collection capability depends on the installed monitoring modules, configuration, and enabled data collection functions.

8. What communication role does this module provide within the 3500 system?
It acts as the primary interface for exchanging rack information between installed modules and external monitoring systems.

9. What should be checked before replacing this module?
Engineers should confirm rack compatibility, firmware requirements, communication architecture, and the existing 3500 system configuration.

10. Can the 3500/22-01-00 be used in all 3500 racks?
It should be installed only in compatible 3500 rack configurations that support the Transient Data Interface module family.
