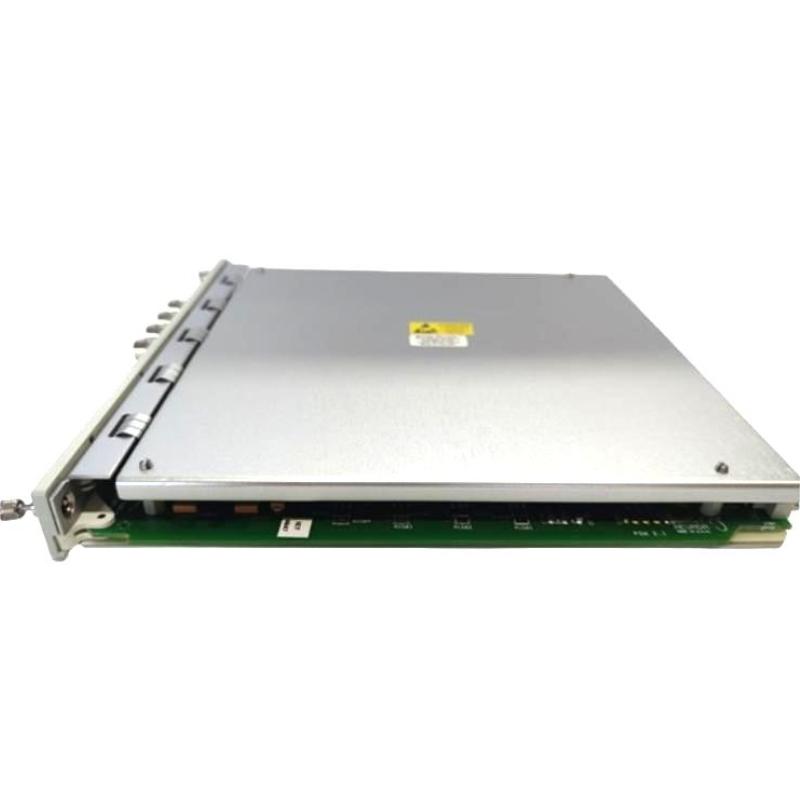

Bently Nevada 3500/22-01-01-01 Transient Data Interface Module

Where It Excels in Industrial Use

• Advanced 3500 Machinery Protection System Communication:
The Bently Nevada 3500/22-01-01-01 Transient Data Interface Module (TDI) provides a communication interface between the 3500 monitoring system and compatible software platforms, enabling efficient rack configuration, machinery data access, and condition monitoring integration.

• Real-Time Machinery Condition Monitoring:
Designed for critical rotating equipment such as turbines, compressors, generators, and pumps, the module supports continuous collection and transmission of steady-state and transient dynamic information for reliability-focused maintenance programs.

• Industrial Asset Management Networks:
The module integrates 3500 rack information with external monitoring systems through Ethernet communication, helping engineers improve diagnostics, machine health analysis, and operational decision-making.

• Hazardous Area Industrial Installations:
With the CSA/NRTL/C approval option, this configuration is suitable for applications requiring certified equipment installation in regulated industrial environments.

Key Strengths at a Glance

• Combined Rack Interface and Data Collection Function:
The module combines the functions of a 3500/20 Rack Interface Module with communication processor capabilities, reducing additional hardware requirements within the protection system architecture.

• Ethernet-Based Communication:
The integrated 10Base-T/100Base-TX Ethernet I/O module enables reliable high-speed communication between the 3500 rack and compatible host software systems.

• Standard Transient Data Interface Configuration:
The -01 transient data interface option is designed for standard monitoring applications, providing dependable access to rack status, configuration information, and machinery condition data.

• CSA/NRTL/C Approval Option:
The final -01 suffix identifies the agency approval configuration for CSA/NRTL/C certified applications, improving suitability for regulated industrial projects.

• Supports Predictive Maintenance Strategies:
By transferring machinery information to compatible monitoring software, the module helps operators analyze equipment behavior, identify developing issues, and optimize maintenance planning.

Technical FAQs

1. What is the primary function of the Bently Nevada 3500/22-01-01-01 Transient Data Interface Module?
It provides communication between the 3500 monitoring system and compatible software for rack configuration, data collection, and machinery condition monitoring.

2. Is this module part of the primary machinery protection path?
No. The module provides communication and data interface functions and does not directly control the protection logic performed by monitor modules.

3. What communication interface does this model use?
This configuration uses a 10Base-T/100Base-TX Ethernet I/O module for network communication.

4. What does the first "01" represent in the model number?
It identifies the standard Transient Data Interface configuration intended for standard monitoring applications.

5. What does the second "01" represent in the model number?
It identifies the Ethernet I/O module configuration using 10Base-T/100Base-TX communication.

6. What does the final "-01" suffix indicate?
The final suffix indicates the CSA/NRTL/C agency approval option for certified industrial installations.

7. Can this module replace a 3500/20 Rack Interface Module?
Yes. The TDI combines rack interface functions with additional data collection capabilities, serving as an advanced communication interface for compatible 3500 systems.

8. Does the module capture vibration waveform data?
It can support transient dynamic data collection when used with compatible 3500 monitoring modules and enabled system configurations.

9. Where is the module installed in the 3500 rack?
It is installed in Slot 1, adjacent to the power supply modules.

10. What should be confirmed before replacing this module?
Engineers should verify rack compatibility, Ethernet configuration, firmware requirements, approval requirements, and the existing monitoring architecture.
