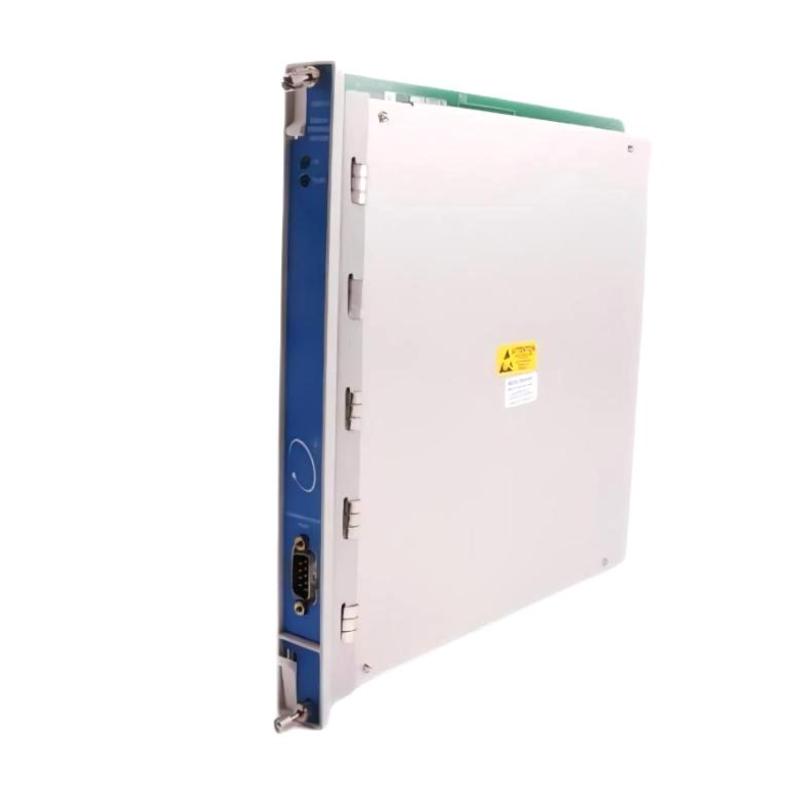

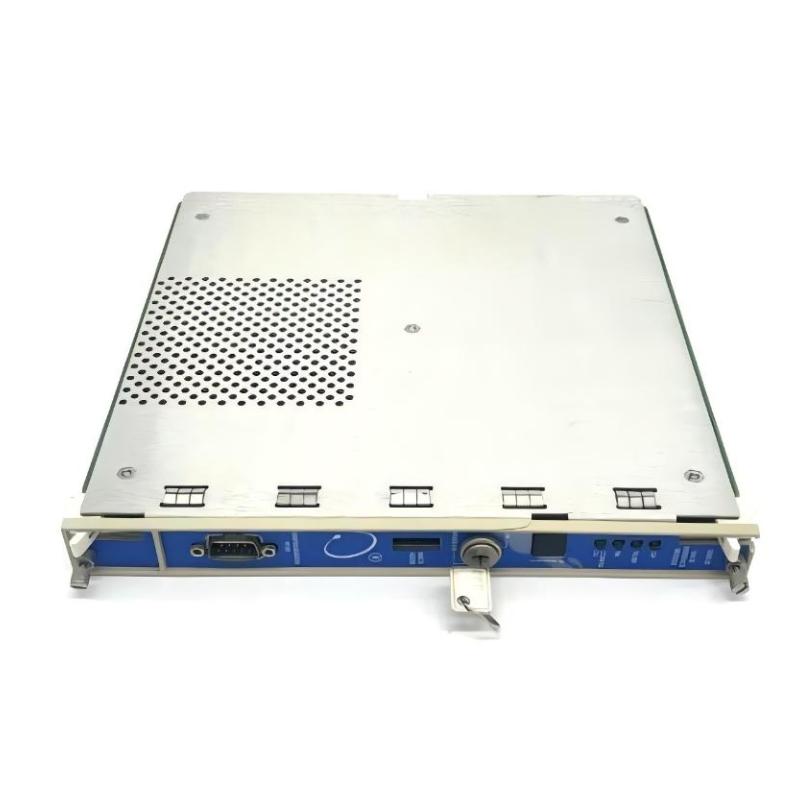

Bently Nevada 3500/22-01-02-00 Transient Data Interface Module

Where It Excels in Industrial Use

• High-Speed 3500 Machinery Data Communication:
The Bently Nevada 3500/22-01-02-00 Transient Data Interface Module provides a reliable communication bridge between the 3500 Machinery Protection System and compatible monitoring software, enabling efficient transfer of machinery condition data through a fiber optic Ethernet network.

• Fiber Network-Based Condition Monitoring Systems:
Designed for industrial environments requiring long-distance and electrically isolated communication, the module uses a 100Base-FX fiber optic Ethernet interface to connect 3500 racks with centralized monitoring platforms.

• Critical Rotating Equipment Protection Applications:
Suitable for turbines, compressors, generators, pumps, and other high-value rotating assets where reliable access to vibration and machinery health data supports predictive maintenance programs.

• Large Industrial Plant Integration:
The module is well suited for power generation, oil & gas, petrochemical, and manufacturing facilities requiring stable communication between machinery protection systems and plant-level monitoring networks.

Key Strengths at a Glance

• Integrated Rack Communication Capability:
Combines Rack Interface Module functions with transient data collection capability, allowing the 3500 system to communicate directly with compatible condition monitoring and configuration software.

• 100Base-FX Fiber Optic Ethernet Interface:
The -02 I/O option provides a fiber optic Ethernet communication interface, offering strong electrical isolation, reduced interference sensitivity, and dependable long-distance connectivity.

• Continuous Machinery Data Collection:
Supports collection of steady-state and transient dynamic information from compatible 3500 monitoring modules for advanced machine diagnostics and reliability analysis.

• Standard Monitoring Configuration:
The -01 Transient Data Interface Type option is designed for standard 3500 monitoring applications, providing dependable communication performance in conventional protection architectures.

• Flexible Industrial Network Deployment:
Fiber optic communication makes the module especially suitable for installations where electromagnetic interference, grounding differences, or long communication distances are important considerations.

Technical FAQs

1. What is the main function of the Bently Nevada 3500/22-01-02-00 Transient Data Interface Module?
It provides communication between the 3500 Machinery Protection System and compatible software platforms for rack configuration, machinery data access, and condition monitoring applications.

2. What type of communication interface does this model use?
This model uses a 100Base-FX fiber optic Ethernet I/O module for communication with external monitoring systems.

3. Is the 3500/22-01-02-00 part of the primary machinery shutdown protection path?
No. The module provides communication and data collection functions but does not affect the normal operation of the primary protection logic.

4. What is the difference between 3500/22-01-01-00 and 3500/22-01-02-00?
The difference is the Ethernet I/O module type. The 3500/22-01-01-00 uses copper Ethernet, while the 3500/22-01-02-00 uses 100Base-FX fiber optic Ethernet.

5. Where is this module installed in a 3500 rack?
It is installed in Slot 1, directly adjacent to the power supply modules in the 3500 rack.

6. What software systems can communicate with this module?
It is designed for integration with compatible Bently Nevada monitoring software, including System 1 Condition Monitoring and Diagnostic Software and 3500 System Configuration Software.

7. Can this module collect vibration waveform information?
Yes. When properly configured with compatible monitor modules, it can support transient dynamic data collection and waveform transfer functions.

8. What does the first "-01" indicate in the model number?
It identifies the Standard Transient Data Interface configuration for standard monitoring applications.

9. What does the second "-02" indicate in the model number?
It identifies the 100Base-FX fiber optic Ethernet I/O module configuration.

10. What should be confirmed before replacing this module?
Engineers should verify rack compatibility, fiber optic network requirements, communication settings, firmware compatibility, and existing 3500 system configuration.
