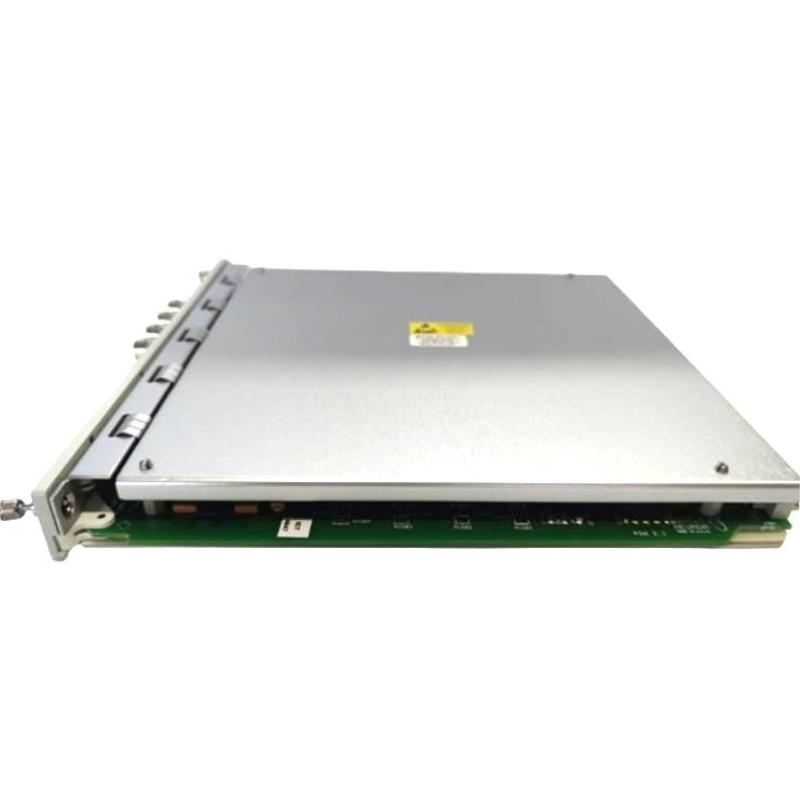

Bently Nevada 3500/22M-01-02-00 Transient Data Interface Module

Where It Excels in Industrial Use

• Advanced Machinery Condition Data Management:
The Bently Nevada 3500/22M-01-02-00 Transient Data Interface Module (TDI) provides a high-performance communication interface between the 3500 Machinery Protection System and compatible monitoring software, enabling efficient retrieval of machine status, configuration information, and transient operating data.

• Fiber Optic Ethernet-Based Monitoring Networks:
Designed with a 100Base-FX fiber optic Ethernet interface, this module supports reliable long-distance communication and improved electrical isolation, making it suitable for industrial environments with high electromagnetic interference.

• Critical Rotating Equipment Protection Systems:
The module is widely used for turbines, compressors, generators, pumps, and other high-value rotating assets where continuous access to machinery condition information supports predictive maintenance and reliability improvement.

• Integrated Plant Asset Monitoring Platforms:
The module connects 3500 rack data with host systems such as System 1 Condition Monitoring and Diagnostic Software, helping engineers analyze equipment behavior and optimize maintenance strategies.

Key Strengths at a Glance

• Combines Rack Interface and Communication Processor Functions:
The 3500/22M TDI integrates the functions of the 3500/20 Rack Interface Module with communication processor capabilities, providing a centralized interface for rack configuration and machinery data retrieval.

• Fiber Optic Ethernet Communication:
The -02 I/O configuration uses a 100Base-FX fiber optic Ethernet module, providing stable communication over extended distances while reducing susceptibility to electrical noise.

• Continuous Steady-State and Transient Data Collection:
The module works with compatible 3500 M-Series monitor modules to collect steady-state values and transient dynamic waveform information for advanced diagnostics.

• Slot 1 Rack Integration Design:
The TDI is installed in the rack interface position next to the power supplies, maintaining the modular architecture and service flexibility of the 3500 system.

• Enhanced Predictive Maintenance Capability:
By transferring machinery information to higher-level monitoring platforms, the module supports condition-based maintenance programs and long-term asset reliability management.

Technical FAQs

1. What is the primary function of the Bently Nevada 3500/22M-01-02-00?
It provides communication, rack configuration, and machinery data retrieval functions between the 3500 monitoring system and compatible host software.

2. What type of communication interface does this model provide?
This configuration uses a 100Base-FX fiber optic Ethernet I/O module for communication with external monitoring systems.

3. Is the 3500/22M-01-02-00 part of the critical protection signal path?
No. The module provides communication and data collection functions but does not affect the normal operation of the machinery protection logic.

4. What is the difference between 3500/22M-01-01-00 and 3500/22M-01-02-00?
The difference is the Ethernet I/O type. The 3500/22M-01-01-00 uses copper Ethernet, while the 3500/22M-01-02-00 uses fiber optic Ethernet.

5. Which software platforms can communicate with this module?
It is designed for use with Bently Nevada System 1 Condition Monitoring and Diagnostic Software and 3500 System Configuration Software.

6. Where should the module be installed in a 3500 rack?
It must be installed in Slot 1, directly adjacent to the power supply modules.

7. Can this module collect vibration waveform data?
Yes. When configured with compatible monitor modules and required options, it can collect transient dynamic waveform information.

8. Does the module replace individual vibration monitor modules?
No. Monitoring modules such as 3500/40M and 3500/42M perform signal measurement, while the TDI manages communication and data collection.

9. What advantages does fiber communication provide in this module?
Fiber communication provides improved electrical isolation, reduced electromagnetic interference, and better performance for longer communication distances.

10. What should be verified before replacing this module?
Engineers should confirm rack compatibility, fiber network requirements, firmware compatibility, communication settings, and existing system architecture.
